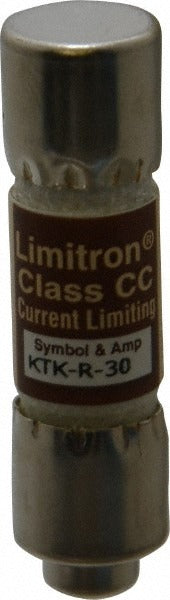

Cooper Bussmann KTK-R-30 Fast-acting Fuse 30A 600V Cc

Product Description

The COOPER BUSSMANN KTK-R-30 is a Class CC fast-acting cartridge fuse rated at 30 amps and 600 volts AC. It is designed for general-purpose overcurrent protection in industrial control panels, motor control circuits, and commercial electrical systems. The fuse features a rejection setting that prevents substitution with lower-rated Class H or K fuses, maintaining system integrity. With an interrupting rating of 200 kA at AC RMS, it handles high fault-current environments. Electricians and industrial maintenance technicians install this fuse in UL-Listed Class CC fuse holders where compact, reliable short-circuit protection is required.

This fuse fits standard Class CC fuse holder applications found in residential, commercial, and light industrial control circuits. Its compact cartridge body measures 1.5 inches in length and 10.3 mm in diameter, fitting securely in panel-mount and DIN-rail fuse holders. The KTK-R-30 is well-suited for protecting control transformers, solenoid valves, instrumentation circuits, and small motor branch circuits where fast-acting response to overloads is critical.

Key Features

• 30-amp, 600-volt fast-acting Class CC cartridge fuse
• 200 kA interrupting rating at AC RMS for high fault-current protection
• Rejection feature prevents installation of non-CC fuses in the same holder
• Compact body: 1.5 inches overall length, 10.3 mm diameter
• CE Certified, CSA Certified, UL Listed 248-4 Class CC, and RoHS Compliant

Compatibility

Designed for use in UL-Listed Class CC fuse holders. The rejection feature ensures this fuse can only be installed in holders rated for Class CC fuses, preventing misapplication with lower-interrupting-rated fuse classes.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the circuit before removing or installing fuses. Verify the fuse holder is rated for Class CC fuses and confirm the circuit voltage and amperage do not exceed the fuse ratings. Never replace a blown fuse without first identifying and correcting the cause of the overcurrent condition.
