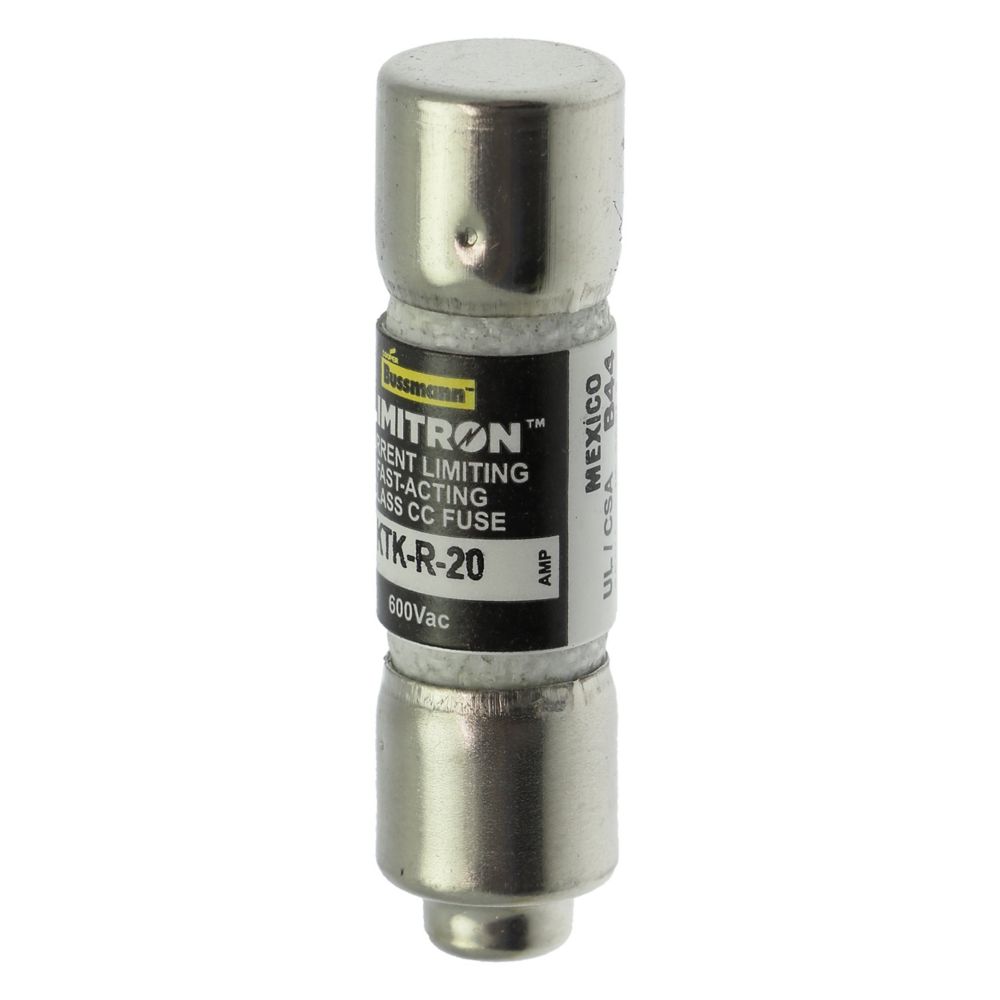

Cooper Bussmann KTK-R-20 Eaton Bussmann Series KTK-R Fuse 20 A

Product Description

The COOPER BUSSMANN KTK-R-20 is an Eaton Bussmann Series Class CC, fast-acting, dual-element, current limiting fuse. This 20 A fuse is a rejection style fuse with an interrupting rating of 200kA at 600Vac. It is suitable for industrial controls panels and machinery, street lighting, general lighting, capacitors and distribution.

• Fast-acting
• Dual-element
• Current limiting
• Rejection style

Product Highlights

Class CC, fast-acting, dual-element, current limiting, rejection style fuse with an interrupting rating of 200kA at 600Vac.

Product Information

Standard Information

• Brand: COOPER BUSSMANN
• Manufacturer Part Number: KTK-R-20
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton Bussmann series KTK-R fuse
• Catalog Number: KTK-R-20
• UPC: 051712420716
• Product Length/Depth: 1.5 in
• Product Height: 0.41 in
• Product Width: 0.41 in
• Product Type: Fuse
• Amperage Rating: 20 A
• Number of elements: Dual
• Class: Class CC
• Interrupt rating: 200 kAIC
• Fuse indicator: Non-indicating
• Connection: Ferrule end x ferrule end Ferrule
• Response time: See time current curve
• Material: Melamine tube
• Packaging type: Standard
• Voltage rating: 600 V
• Type: Current-limiting fast-acting fuse
• Special features: Rejection style
• Application: Industrial controls panels and machinery, street lighting, general lighting, capacitors and distribution
• Manufacturer: Bussmann
• Family: LIMITRON
• Amp: 20
• AIC Ratings: 100kA@480V
• Mfrcode: BUSS
• MFR UNSPSC: 39121609
• MFR FULLNAME: COOPER BUSSMANN
• PRODUCT NAME: MIDGET FUSE
• ADDITIONAL INFORMATION: MELAMINE TUBE
• LENGTH: 1-1/2 INCH
• APPROVAL: UL 248-4, CSA, CE
• DIAMETER: 13/32 INCH
• CURRENT RATING: 20 AMPERE
• Terminal Type: FERRULE
• Characteristics: FAST ACTING
• Interrupting Rating: 200000 AMPERE (SYMMETRICAL)
• Fuse Body Type: Cartridge
• Fuse Type: D-Type Cartridge
• MPN: KTK-R-20
• Suitable For: Interior
• Current Type: AC
• Control Style: Analog/Mechanical
• Voltage: 551-600 V
• Number in Pack: 1
• Fuse Classification: Current-Limiting
• Room: Any Room
• Finish: Stainless Steel
• Mounting Style: Snap-In
• Maximum Amperage: 20 A
• Current Rating: 16-30 A
• Number of Phases: 1
• Orientation: Horizontal/Vertical
• Brand: Bussmann
• Fuse Speed: Fast-Acting (F)
• Operation Method: On/Off
• Model: KTK-R-20
• Number of Poles: 1
