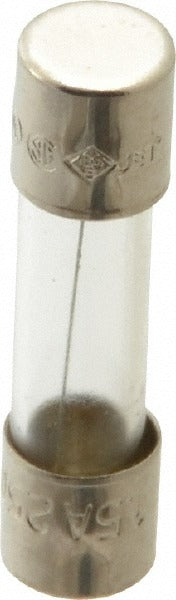

Cooper Bussmann GMC-1.5-R Cartridge Time Delay Fuse 1.5A

Product Description

The COOPER BUSSMANN GMC-1.5-R is a glass cartridge time delay fuse rated at 1.5 amps, designed for circuit protection in control panels, instrumentation, and low-voltage equipment. The mini form factor measures 20 mm in overall length and 5 mm in diameter, fitting standard 5x20 mm fuse holders. The time delay characteristic allows brief inrush currents to pass without nuisance opening, while still providing reliable overcurrent protection under sustained fault conditions. Licensed electricians and control panel technicians install this fuse in industrial and commercial equipment where compact, precise overcurrent protection is required.

This fuse is suited for use in control circuits, HVAC equipment electronics, instrumentation panels, and other low-current applications requiring a 5x20 mm time delay fuse. Its glass body allows visual inspection of the fuse element without removal, reducing diagnostic time during service calls. The 1.5 amp rating targets sensitive circuits where standard fast-acting fuses would trip on normal startup transients.

Key Features

• Time delay action tolerates inrush current without nuisance opening
• Glass body allows visual fuse element inspection in the field
• Mini cartridge form factor: 20 mm length x 5 mm diameter, fits standard 5x20 mm holders
• Interrupting rating of 10,000 amps at 125 volts and 100 amps at 250 volts
• UL Listed, CSA Certified, KC-Mark Certified, and RoHS Compliant
• MITI Approved for applicable international equipment requirements

Compatibility

Designed as a replacement for standard 5x20 mm mini cartridge time delay fuses in control panels, instrumentation, HVAC electronics, and other low-current circuit protection applications requiring a 1.5 amp time delay fuse.

Installation Notes

Installation should be performed by a qualified electrician or trained technician. Always de-energize and lock out the circuit before replacing a fuse. Confirm the replacement fuse amperage, voltage rating, and time delay characteristics match the equipment manufacturer specifications before installing. Follow applicable NEC guidelines for overcurrent protection and fuse replacement procedures.
