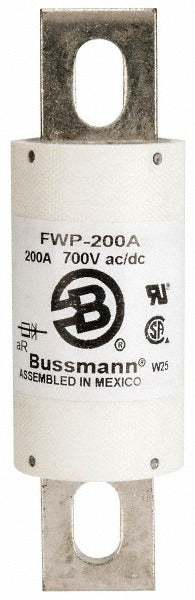

Cooper Bussmann FWP-200A Cartridge Fast-acting Fuse 200A

Product Description

The COOPER BUSSMANN FWP-200A is a cartridge-style, fast-acting fuse rated at 200 amps. It is designed for overcurrent protection in high-demand electrical systems where rapid fault clearing is critical. The body measures 5-3/32 inches in overall length and 1-1/2 inches in diameter, with stud mount termination for secure installation in fuse blocks and disconnect enclosures. Weighing 0.67 pounds, this fuse carries a 50 kA interrupting rating at DC (RMS), making it suitable for circuits where high fault current levels must be safely interrupted. Licensed electricians and industrial maintenance technicians are the primary installers of this component.

The FWP-200A is suited for industrial and commercial electrical applications requiring fast-acting overcurrent protection. Its stud mount design fits into standard fuse holders and disconnect assemblies used in motor control centers, variable frequency drives, power distribution panels, and related equipment. The cartridge body style is common in applications where high amperage and high fault-current interrupting capacity are both required. This fuse is applicable wherever 200A fast-acting protection is specified in medium to heavy electrical systems.

Key Features

• 200A continuous current rating for high-demand circuit protection
• Fast-acting fuse timing for immediate response to overcurrent conditions
• 50 kA interrupting rating at DC (RMS) for high fault-current environments
• Stud mount termination for secure, low-resistance connections in fuse blocks
• Cartridge body: 5-3/32 inches OAL and 1-1/2 inches diameter
• CE Certified and CSA Class 1422-30 53787 Component Accepted

Compatibility

Designed as an OEM-style replacement or direct-fit fuse for stud-mount cartridge fuse holders rated for 200A fast-acting applications in industrial and commercial electrical assemblies.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. Always de-energize and lock out the circuit before removing or installing the fuse. Verify that the fuse holder and associated wiring are rated for 200A and compatible with the stud mount termination style. Do not use a fuse with a lower interrupting rating than the available fault current at the installation point.
