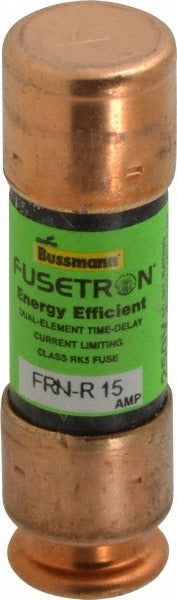

Cooper Bussmann FRN-R-15 RK5 Time Delay Fuse 15A

Product Description

The COOPER BUSSMANN FRN-R-15 is a Class RK5 cartridge-style time delay fuse rated at 15 amps. It is designed for general-purpose overcurrent protection in branch circuits and equipment where motor loads, transformers, or other inductive loads require a fuse that tolerates brief startup surges without nuisance opening. The fuse measures 2 inches in overall length and 0.563 inches in diameter, with a dual-element internal construction. It carries CE, CSA, and UL listings and is installed by licensed electricians in fuse holders rated for RK5 Class fuses.

This fuse is suited for residential, commercial, and light industrial electrical systems where time delay protection is required on motor-branch or combination motor-controller circuits. The RK5 Class rating allows it to be used in applications calling for a current-limiting time delay fuse with high interrupting capacity. It mounts in a standard fuse holder and is sold individually, with a minimum order quantity of 10 units.

Key Features

• Class RK5 time delay cartridge fuse for general-purpose overcurrent protection
• Dual-element construction tolerates motor inrush and temporary overload conditions
• Rated 15 amps with a 20 kA interrupting rating at DC 200 volts RMS
• Non-indicating design with standard cartridge body for fuse holder mounting
• CE Certified, CSA C22.2 No. 248.12 Certified, and UL Listed 248-12 Class RK5
• Compact form factor at 2 inches overall length for use in space-constrained panels

Compatibility

Designed for use in fuse holders and fuse blocks rated for Class RK5 cartridge fuses. Suitable as a direct replacement in any overcurrent protection application specifying a 15-amp RK5 Class time delay fuse.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements for fuse-based overcurrent protection. De-energize and lock out the circuit before removing or installing fuses. Verify the fuse holder is rated for Class RK5 fuses and matches the voltage and amperage of the replacement. Do not substitute a fuse of a different class or higher amperage rating than the circuit requires.
