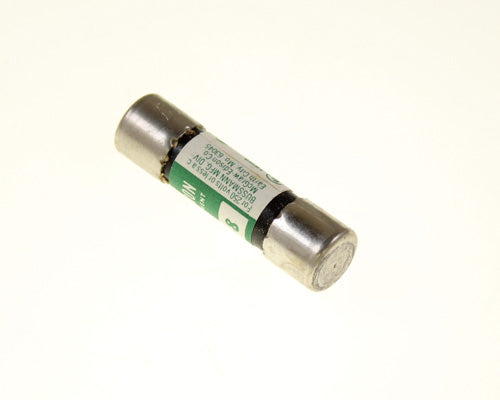

Cooper Bussmann FNM-1-6/10 FNM Fuse 1.6A

Product Description

The Cooper Bussmann FNM-1-6/10 is a time-delay FNM series fuse with a 1.6A amperage rating and a 250V voltage rating. This fuse is designed with ferrule end connections and a dual element construction. It is suitable for circuits with high inrush currents and offers superior overload and cycling capabilities.

• Superior overload and cycling capabilities
• Color coded for 250Vac maximum
• Time-Delay Ferrule Fuse

Product Highlights

Time-delay fuse with ferrule end connections, ideal for circuits with high inrush currents and offers overload protection.

Product Information

Standard Information

• Brand: COOPER BUSSMAN
• Manufacturer Part Number: FNM-1-6/10
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton Bussmann series FNM fuse
• Catalog Number: FNM-1-6/10
• UPC: 051712520164
• EAN: 5027590449373
• Product Length/Depth: 0.39 in
• Product Height: 1.44 in
• Product Width: 0.39 in
• Warranty: Not Applicable
• Compliances: CE Marked RoHS Compliant
• Product Type: Fuse
• Amperage Rating: 1.6 A
• Interrupt rating: 100 AIC at 250 Vac 10 kAIC at 125 Vac
• Voltage rating: 250 V
• Material: Nickel-plated bronze endcap
• Number of elements: Dual
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Brand: Cooper Bussmann
• MPN: FNM-1-6/10
• Condition: New
• Primary brand: Eaton
• Secondary brand: Cooper Bussmann
• Main function: Fuse
• Product series / family name: LV supplemental fuses
• Sub-range name: Fuse cartridges
• Functions: Low-Voltage (LV) time-delay supplemental fuse cartridge
• Rated current: 1.6A
• Rated voltage (AC): 250Vac
• Short circuit breaking rating: 100A (at 250Vac; UL/CSA)
• Technical compatibility with: circuits with high inrush currents (motor/transformer loads) supplemental protection for 125Vac and 250Vac inductive circuits
• Order code / Manufacturer SKU: FNM-1-6/10
• Manufacturer product status: Commercialized
• Compliant with standard(s): UL Listed Std. 248-14 Guide JDYX File E19180 CSA Certified Class 1422-01 File 53787
• RoHS compliant: RoHS 2011/65/EU compliant
• CE: CE
• fuse type: time delay
• current rating: 1.600 a
• series: fnm
• mounting type: holder
• package: BOX
• item per pack: 1
• diameter: 0.410 IN
• length: 1.500 IN
