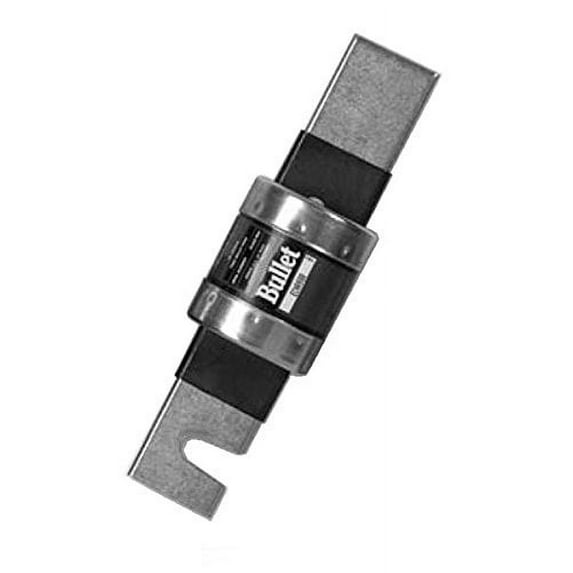

Cooper Bussmann ECNR150 ul class rk-5 time delay fuse 150a blade end x blade end

Product Description

The COOPER BUSSMANN ECNR150 is a UL Class RK-5 time delay fuse designed for AC power distribution systems, including mains, feeders, branch circuits, motors, and transformers. This 150A, 250VAC/125VDC dual-element fuse offers superior overload and cycling capabilities, providing current-limiting protection for various inductive loads. It features a 200 kAIC interrupt rating and a blade end x blade end connection.

• Suitable for AC power distribution system mains, feeders/branch circuits, motors/motor branch circuits, transformers and other inductive loads.
• Features an interrupt current rating of 200 kAIC at 250 Volt AC/125 Volt DC.
• Offers superior overload and cycling capabilities with current-limiting, time-delay protection.

Product Highlights

UL Class RK-5 dual-element time delay fuse with 150A current rating and 200 kAIC interrupt rating.

Product Information

Standard Information

• Brand: COOPER BUSSMANN
• Manufacturer Part Number: ECNR150
• Country of Origin: USA

Technical Specifications

• Amperage Rating: 150 A
• Voltage Rating: 250/125 VAC/VDC
• Class: RK-5
• Interrupt Rating: 200 kAIC
• Fuse Speed: Time-Delay/Slow-Blow (T)
• Product Type: Electrical Fuse
• Element Type: Dual
• Connection Type: Blade end x blade end
• Fuse Body Type: Blade
• Current Type: AC/DC
• Response Time: 10 S at 500%
• Standard: CE Marked
• Sub Brand: Edison
• Material: Brass, Fiberglass/Glass-Reinforced Plastic (GRP), Glass, Copper
• Finish: Copper
• Application: Branch Circuit
