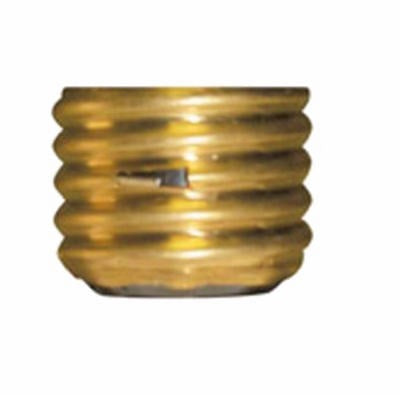

Cooper Bussmann BP/SA-20 Type S Fuse Adapter 20A

Product Description

The COOPER BUSSMANN BP/SA-20 is a Type S fuse adapter designed to retrofit standard Edison-base fuse holders for use with Type S rejection-base fuses. The adapter installs permanently into an existing Edison-base socket, converting it to accept only the correct ampere-rated Type S fuse. This prevents the common overfusing hazard caused by installing a higher-rated fuse in a standard socket. Each package includes three adapters rated at 20 amps. Electricians and qualified DIYers install these in residential panelboards, load centers, and fused disconnect boxes where Type S fuse compliance is required.

Type S fuse adapters are used in residential electrical systems where screw-base fuse panels remain in service. The BP/SA-20 is appropriate for 20-amp branch circuits protected by plug fuses. Once installed, the adapter is non-removable and locks the socket to accept only 20A Type S fuses, preventing substitution with a higher-ampere fuse. This is a common upgrade performed during panel inspections, insurance-mandated corrections, or code compliance work on older residential wiring systems.

Key Features

• Converts Edison-base fuse sockets to non-interchangeable Type S rejection-base configuration
• Rated at 20 amps to match 20A branch circuit protection requirements
• Permanently installs to prevent removal and overfusing
• Carded 3-pack format for convenient single-visit service calls
• Compact profile fits standard residential fuse panel sockets

Compatibility

Designed for use in standard Edison-base screw-shell fuse holders found in residential fuse panels and load centers. Compatible with Type S plug fuses rated at 20 amps.

Installation Notes

Installation must be performed by a licensed electrician or qualified individual in accordance with NEC requirements. Always shut off power to the panel or circuit before working inside a fuse box. The adapter threads into the Edison-base socket and is not intended to be removed once seated. Verify the circuit is rated for 20 amps before installing a 20A adapter.
