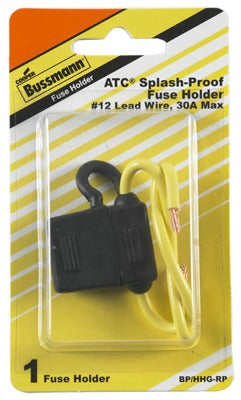

Cooper Bussmann BP/HHG-RP Inline Fuse Holder 30A 32VDC Atc 5 Pack

Product Description

The COOPER BUSSMANN BP/HHG-RP is an inline fuse holder designed for ATC blade-type fuses in low-voltage DC circuits. Rated up to 30 amps and 32 volts DC, it protects wiring and equipment in automotive, marine, RV, and light commercial applications. The holder includes a protective cover to shield the fuse from moisture and debris. Each unit comes pre-attached with a 12 AWG yellow leadwire for direct splice or terminal connection. This holder is installed by electricians, marine technicians, and equipment service pros who need a reliable, accessible fuse point in-line with a circuit.

This fuse holder is suited for low-voltage DC wiring systems where an accessible, protected fuse point is required mid-circuit. Typical applications include power distribution wiring in vehicles, trailers, boats, and light equipment. The ATC blade-type fuse format is one of the most widely used standards in 12-volt and 24-volt DC systems, making this holder a common service item. Each retail pack contains 5 units, useful for stocking service vehicles or completing multi-circuit installations in a single purchase.

Key Features

• Accepts ATC blade-type fuses rated 1 to 30 amps
• 32 volts DC maximum rating for low-voltage DC circuit protection
• Black housing with protective cover to shield fuse from contaminants
• Pre-attached 12 AWG yellow leadwire for straightforward in-line installation
• Pack of 5 units per package for multi-circuit or stock-up purchasing
• Compact form factor at 0.88 inches long x 2.75 inches wide x 4.75 inches high

Compatibility

Designed for use with standard ATC blade-type fuses rated between 1 and 30 amps in 32-volt DC or lower circuits. Suitable for inline fuse protection in automotive, marine, RV, and light commercial low-voltage DC wiring systems.

Installation Notes

Installation is typically performed by electricians or equipment technicians familiar with low-voltage DC wiring practices. Disconnect or isolate the circuit at the power source before cutting into any existing wiring to install this holder. Secure all splices with appropriate connectors or solder and heat-shrink to maintain circuit integrity. Verify the installed fuse amperage matches the circuit protection requirement before restoring power.
