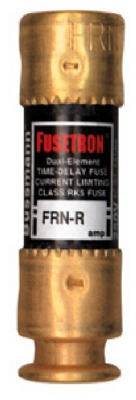

Cooper Bussmann BP/FRN-R-30 Cartridge Fuse 30A 250V

Product Description

The COOPER BUSSMANN BP/FRN-R-30 is a Type FRN-R time-delay cartridge fuse rated at 30 amps and 250 volts. It uses a Fusetron time-delay design that tolerates brief inrush currents without nuisance tripping, while still providing reliable overcurrent protection during sustained fault conditions. This package contains two fuses and arrives carded for easy retail or shop storage. Electricians, HVAC technicians, and industrial maintenance professionals install this fuse type in motor circuits, HVAC equipment, and other loads that draw high startup current before settling to normal operating amperage.

Type FRN-R fuses are a dual-element, time-delay class RK5 fuse commonly specified for motor branch-circuit protection in residential and light commercial applications. They are well suited for air conditioning condensing units, compressors, fans, and similar motor loads where startup inrush must be tolerated without compromising short-circuit protection. The carded two-pack format makes this a practical choice for service vans and shop stock where replacements are needed on the job.

Key Features

• 30 amp continuous current rating with time-delay design for motor inrush tolerance
• 250 volt AC rating suitable for single-phase residential and light commercial circuits
• Type FRN-R dual-element Fusetron construction provides both overload and short-circuit protection
• Two fuses included per carded package
• Compact cartridge form factor: 2.375 inches long x 1.375 inches wide x 0.25 inches high

Compatibility

Designed as an OEM-style replacement cartridge fuse for Class RK5 fuse holders rated for Type FRN-R time-delay fuses at 250 volts and 30 amps.

Installation Notes

Cartridge fuse installation and replacement should be performed by a qualified electrician in accordance with NEC guidelines. Always de-energize and lock out the circuit before opening a fuse block or disconnect. Use an appropriately rated fuse puller tool to remove and install cartridge fuses safely. Verify the replacement fuse amperage, voltage, and type match the overcurrent device specification on the equipment nameplate before installing.
