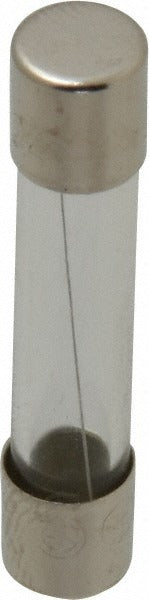

Cooper Bussmann AGC-2-R Cartridge Fast-acting Fuse 2A

Product Description

The COOPER BUSSMANN AGC-2-R is a glass cartridge fast-acting fuse rated at 2 amps, designed to provide overcurrent protection in electrical circuits requiring quick response to fault conditions. Measuring 1.25 inches in overall length and 0.25 inches in diameter, this miniature fuse fits standard fuse holders and clips used across HVAC controls, instrumentation panels, and low-voltage electrical equipment. Its fast-acting design means it opens rapidly under overload or short-circuit conditions, protecting sensitive downstream components. The glass body allows visual confirmation of fuse condition without requiring a meter. Electricians and electronics technicians commonly specify this fuse type for control circuit protection in both residential and light commercial applications.

The AGC-2-R is suited for use in control panels, instrumentation enclosures, HVAC control boards, and similar low-current electrical assemblies where a 2-amp fast-acting cartridge fuse is required. Its compact miniature form factor is a standard fit in AGC-style fuse clips and panel-mount holders. This fuse is appropriate for circuits operating at up to 250 volts AC. It carries a 100-amp interrupting rating at 250 volts and a 10,000-amp interrupting rating at 125 volts, making it well-suited for low-energy branch and control circuits.

Key Features

• Fast-acting fuse response for immediate overcurrent protection in sensitive circuits
• 2-amp rating suitable for low-current control and instrumentation circuits
• Glass body enables visual inspection of fuse element without tools
• 10,000-amp interrupting capacity at 125 volts and 100-amp interrupting capacity at 250 volts
• RoHS compliant construction with UL Listed and CSA Certified ratings
• Miniature cartridge form factor fits standard AGC-style fuse clips and holders

Compatibility

Designed as an OEM-style replacement for miniature glass cartridge fuse applications requiring an AGC-series fast-acting fuse in 2-amp, 1/4-inch by 1-1/4-inch sizing.

Installation Notes

Installation should be performed by a qualified electrician or instrumentation technician. Always de-energize and lock out the circuit before replacing a fuse. Confirm the replacement fuse amperage and voltage rating match the original fuse and circuit requirements before installing. Do not substitute a higher-amperage fuse to clear a repeated failure — identify the root cause of the overcurrent condition first.
