Cooper Bussmann AGC-1/32 Cartridge Fast-acting Fuse 0.03A

Product Description

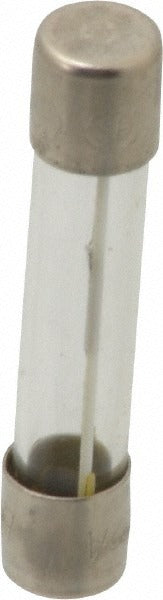

The COOPER BUSSMANN AGC-1/32 is a glass cartridge fast-acting fuse rated at 0.03 amps (A). It measures 1-1/4 inches in overall length and 1/4 inch in diameter, conforming to the standard miniature glass fuse form factor. The fast-acting design responds immediately to overcurrent events without intentional time delay, making it appropriate for protecting sensitive low-current circuits and components. Licensed electricians and electronics technicians install this type of fuse in control panels, instrumentation, and low-current branch circuits where rapid fault isolation is required.

This fuse is suited for use in low-current applications across residential, commercial, and light industrial environments. Typical installations include control circuit protection, small appliance fusing, and instrumentation panels operating at 125 volts or lower. The glass body allows visual inspection of the fuse element without removal, which speeds up troubleshooting during service calls. At 0.03 A, this fuse is appropriate for circuits carrying very light loads where even a modest overcurrent must be cleared quickly to protect downstream components.

Key Features

• Fast-acting fuse response — no intentional time delay for immediate overcurrent protection
• Glass body allows visual inspection of the fuse element without removal
• Interrupting rating of 10,000 A at 125 volts and 35 A at 250 volts
• Standard cartridge form factor: 1-1/4 inches OAL x 1/4 inch diameter
• UL Listed and CSA Certified to multiple recognized standards
• Lightweight at 0.01 pounds — suitable for compact panel and instrument applications

Compatibility

Designed as an OEM-style replacement for standard miniature glass cartridge fuses in the AGC series form factor, compatible with fuse holders accepting 1/4 inch diameter by 1-1/4 inch overall length cartridge fuses.

Installation Notes

Installation and replacement should be performed by a qualified electrician or instrumentation technician. Always de-energize and lock out the circuit before removing or installing a fuse. Verify that the replacement fuse amperage and voltage rating match the circuit requirements exactly before installation. Never substitute a higher-amperage fuse to restore a circuit without first identifying and correcting the cause of the overcurrent condition.
