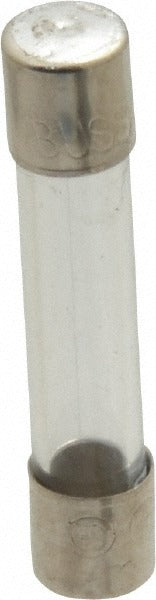

Cooper Bussmann AGC-1/10-R Fast-acting Cartridge Fuse 0.1A

Product Description

The COOPER BUSSMANN AGC-1/10-R is a glass-body cartridge fuse rated at 0.1 amps with fast-acting response characteristics. It is designed for low-amperage overcurrent protection in control circuits, instrumentation panels, and electronic equipment where precise and immediate fault interruption is required. The fuse measures 1.25 inches in overall length and 0.25 inches in diameter, fitting standard AGC-style fuse holders. With an interrupting rating of 10,000 amps at 125 volts and 35 amps at 250 volts, it provides reliable protection across a range of low-voltage circuit applications. Electricians and electronics technicians are the primary installers.

This fuse is suited for residential and light commercial control panel applications, low-voltage instrumentation circuits, and sensitive electronic assemblies where a fast-acting response is needed to protect downstream components from overcurrent damage. The AGC-1/10-R is a common choice in HVAC low-voltage control wiring panels, signal circuits, and laboratory or industrial instrumentation enclosures that use standard 1/4-inch by 1-1/4-inch cartridge fuse holders.

Key Features

• Fast-acting fuse timing for immediate response to overcurrent events
• Glass body construction for visual inspection of fuse condition without removal
• 0.1 amp rating for protection of sensitive low-amperage circuits
• Interrupting rating of 10,000 amps at 125 volts for reliable fault clearing
• Compact cartridge form factor: 1.25 inches OAL, 0.25 inches diameter
• RoHS compliant and UL Listed for use in certified installations

Compatibility

Designed as a direct-fit replacement for standard AGC-style cartridge fuse holders accepting 1/4-inch by 1-1/4-inch glass fuses rated at 0.1 amps.

Installation Notes

Installation should be performed by a qualified electrician or instrumentation technician. Always de-energize and verify zero voltage on the circuit before replacing fuses. Use an appropriately rated fuse puller when removing cartridge fuses from spring-clip or panel-mount holders to avoid contact with conductive end caps. Verify that the replacement fuse amperage and interrupting rating match the original circuit design requirements before restoring power.
