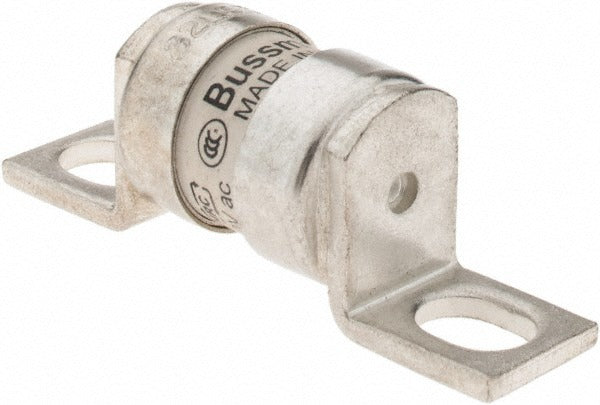

Cooper Bussmann 32LET Cylindrical Fast-acting Fuse 32A

Product Description

The COOPER BUSSMANN 32LET is a cylindrical, fast-acting, general-purpose fuse rated at 32 amps with an interrupting capacity of 200 kA (RMS Symmetrical). It measures 2.205 inches in overall length and 0.5 inches in overall diameter, fitting bolt-on mount fuse holders used in industrial power distribution and control panels. The fast-acting response characteristic makes it well suited for circuit protection where rapid fault clearing is required. This fuse is built to recognized international standards and is appropriate for licensed electricians and qualified industrial maintenance technicians working on overcurrent protection systems.

The 32LET is a general-purpose cylindrical fuse intended for use in industrial and commercial electrical systems requiring reliable overcurrent protection. Its bolt-on mount design integrates directly into compatible fuse holders and disconnect blocks found in motor control centers, panel boards, and machinery control enclosures. The 200 kA interrupting rating supports installation in high-fault-current environments common in commercial and light industrial facilities.

Key Features

• Fast-acting fuse timing for rapid overcurrent response
• 32A continuous amperage rating
• 200 kA (RMS Symmetrical) interrupting capacity
• Cylindrical body type with bolt-on mount
• Compliant with BS 88 Part 4, IEC 269 Part 4, and UL Recognized; CE Certified
• Compact form factor: 2.205 inches OAL, 0.5 inches diameter

Compatibility

Designed for use in bolt-on style cylindrical fuse holders and disconnect assemblies rated for general-purpose overcurrent protection applications meeting BS 88 Part 4 and IEC 269 Part 4 standards.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC or local electrical code requirements. Always de-energize and lockout/tagout the circuit before removing or installing fuses. Verify that the fuse holder is rated for the fuse body diameter, amperage, and interrupting capacity prior to installation. Do not substitute a fuse of a different amperage or timing class without engineering review.
