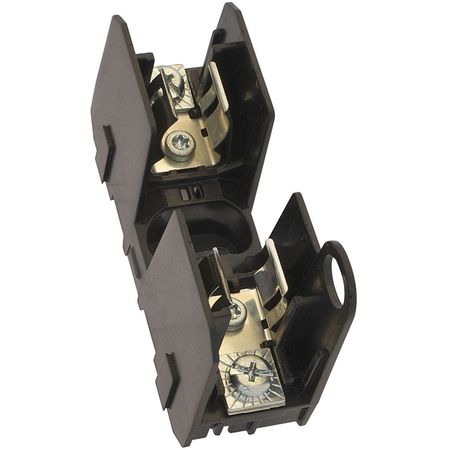

COOPER BUSSMAN RM60030-3CR Fuse Block 600V 30A

Product Description

The COOPER BUSSMAN RM60030-3CR is a 600V, 3-pole fuse block intended for use with Class R fuses. It supports a current range from 1/10 Amps to 30 Amps and features a box lug for straightforward connections. This fuse block ensures reliability with an interrupting rating of 200,000 AIC RMS.

• Current range: 1/10 Amps to 30 Amps
• Interrupting rating: 200,000 AIC RMS
• Designed for Class R fuses

Product Highlights

The RM60030-3CR fuse block is UL Listed and CSA Certified, making it suitable for both commercial and industrial applications.

Product Information

Standard Information

• Brand: COOPER BUSSMAN
• MPN: RM60030-3CR

Technical Specifications

• AC Voltage Rating: 600
• Materials: Thermoplastic
• Mounting Style: Bolt-On
• Maximum Amperage: 30 A
• Current Rating: 0-30 Amp
• Current Type: AC/DC
• Type: Fuse Holder
• Features: 3-Pole, Class R
• Number of Poles: 3
• Country/Region of Manufacture: Mexico
• Application: Commercial, Industrial
• Voltage: 600V Max
