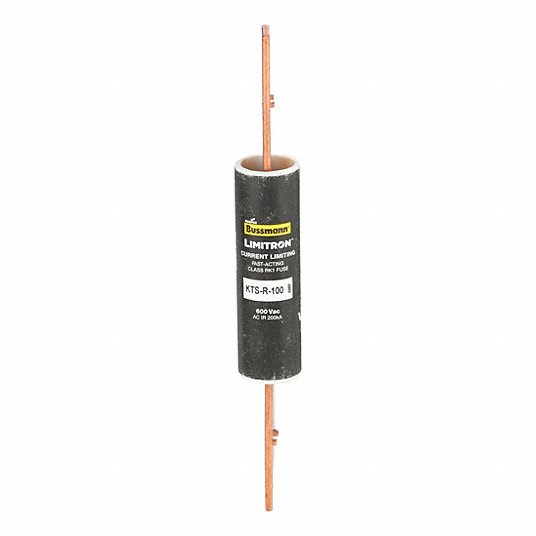

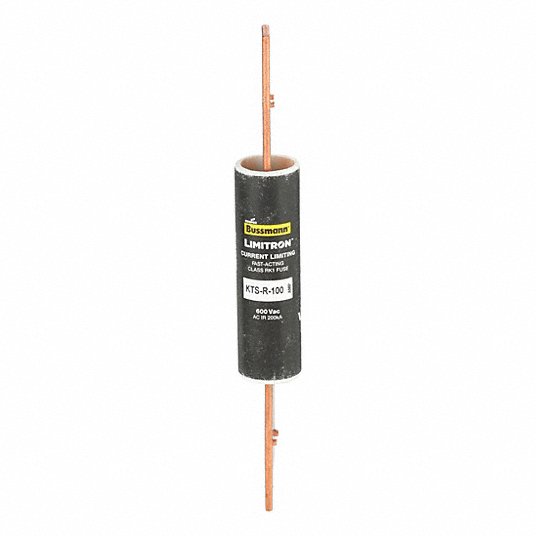

Cooper Bussman KTS-R-100 KTS-R Series Fuse 100 A

Product Description

The COOPER BUSSMAN KTS-R-100 is a fast-acting blade fuse designed for sensitive current protection. It responds rapidly to current changes, safeguarding current-sensitive equipment. This non-indicating fuse has a 600 V AC voltage rating and a 100 A current rating. It is suitable for use with HM600 and RM600 compatible fuse block series.

• Fast-Acting
• Blade Fuse
• Non-Indicating

Product Highlights

Fast-acting blade fuse with a 100 A current rating and 600 V AC voltage rating, designed for current-sensitive equipment protection.

Product Information

Standard Information

• Brand: COOPER BUSSMAN
• Manufacturer Part Number: KTS-R-100
• Country of Origin: Mexico

Technical Specifications

• MPN: KTS-R-100
• Brand: COOPER BUSSMAN
• Series: KTS-R
• Manufacturer Part Number: KTS-R-100
• AC Voltage Rating: 600 V
• Body Material: Melamine
• Compatible Fuse Block Series: HM600; RM600
• Current Rating: 100 A
• Element: Single
• Fuse Block Style: Rejection
• Fuse Body Style: Blade
• Fuse Class or Type: RK1
• Interrupt Rating - AC: 200 kA
• Overall Diameter: 1 in
• Overall Length: 7-7/8 in
• Speed: Fast-Acting
• Standards: CE; Class 1422-02; CSA C22.2 No. 248.12; File 53787; File E4273; UL 248-12 Guide JDDZ
• Visual Indication: Non-Indicating
