COOPER BUSSMAN JM60100-1MW14 Eaton Bussmann Series JM Modular Fuse Block 70-100 A

Product Description

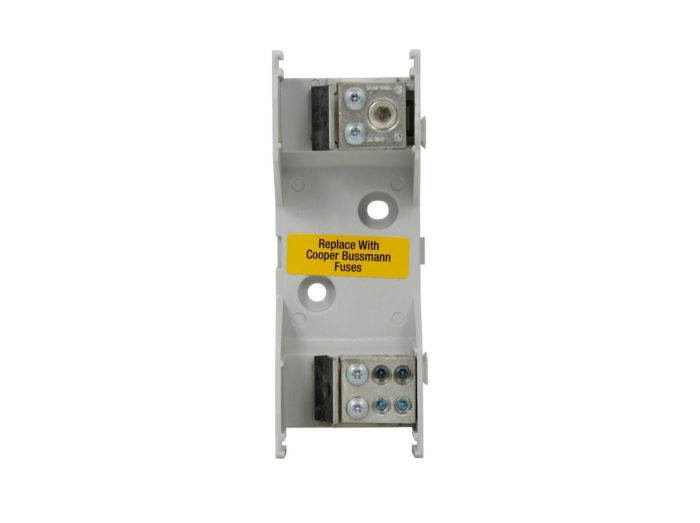

The COOPER BUSSMAN JM60100-1MW14 is an Eaton Bussmann series JM modular fuse block designed for electrical systems. This fuse block operates at amperage ratings of seventy to one hundred amps and features a short-circuit rating of two hundred kA and a voltage rating of six hundred volts. It connects line-side with (1) one-aught to fourteen Copper or Aluminum and load-side connections for (4) four to fourteen Copper, four to eight Aluminum, and (8) ten to fourteen Copper wires.

• Reduces watts loss and lowers overall operating temperature.
• Utilizes less panel space, which aids in lowering inventory costs.
• Includes a fuse clip reinforcing spring designed to minimize temperature rise.

Product Highlights

The JM series modular fuse blocks enhance safety in panel designs and electrical systems. They are available as single-pole configurations that snap together and are also offered in factory-configured two- and three-pole versions.

Product Information

Standard Information

• Product Name: Eaton Bussmann series JM modular fuse block
• Catalog Number: JM60100-1MW14

Technical Specifications

• UPC: 051712491075
• Product Length/Depth: 5.37 inches
• Product Height: 3 inches
• Product Width: 1.98 inches
• Amperage Rating: 70-100 A
• Short-Circuit Rating: 200 kA
• Voltage Rating: 600 V
• Number of Poles: Single-pole
• Class: Class J
• Primary Brand: Eaton
• Secondary Brand: Cooper Bussmann
• Main Function: Fuse holder
• Functions: Modular power distribution fuse block / holder
• Connection Capacity: 1 port line-side + 4 ports load-side per pole
• Rated Voltage (AC): 600 Vac
• Mounting Mode: Panel surface mounting
• Thermal Resistance: UL 94-V0; self-extinguishing flammability rating
• Compliant with Standards: UL Listed, CSA Certified
• RoHS Compliant: RoHS 2011/65/EU compliant
• Net Weight: 0.33 lbs
• Gross Weight: 0.33 lbs
