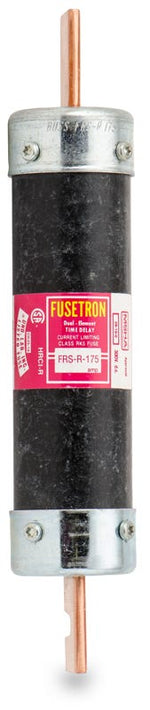

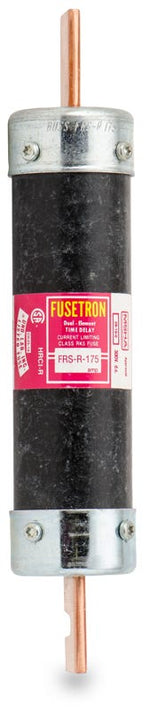

Cooper Bussman FRS-R-175 Fusetron 175 Amp Fuse

Product Description

The Cooper Bussmann FRS-R-175 is a UL Class RK5 Fusetron fuse, providing energy-efficient advanced protection. Its dual-element, time-delay construction delivers a minimum of 10 seconds of time-delay at 500% of rated current. It has a 600 VAC/300 VDC voltage rating and a 20/200 kA interrupt rating. It is suitable for circuits subject to temporary motor overloads and surge currents.

• Energy efficient advanced protection
• Dual-element, time-delay construction
• Current Limiting

Product Highlights

The Cooper Bussmann FRS-R-175 fuse provides reliable overload, ground fault, and short-circuit protection for motors and electrical circuits.

Product Information

Standard Information

• Brand: COOPER BUSSMAN
• Manufacturer Part Number: FRS-R-175

Technical Specifications

• Series: FRS-R
• Indicating/Non-Indicating: Non-Indicating
• Rejection/Non-Rejection: Rejection
• Current: 175 A
• Voltage: 600 VAC/300 VDC
• Interrupt Rating: 20/200 kA
• Class: RK5
• Response Time: 10 s at 500%
• Terminal Type: Blade
• Mounting: Holder Mount
• Body Type: Cartridge
• Element: Dual Element
• Body Material: Fiberglass
• Body Size: 1.61 in Dia x 9.63 in L
• Product Length/Depth: 9.63 in
• Product Height: 1.84 in
• Product Width: 1.84 in
• Compliances: CE Marked
• Product Type: Fuse
• Amperage Rating: 175 A
• Number of elements: Dual
• Packaging type: Standard
• Connection: Blade end x blade end
• Fuse indicator: Non-indicating
• AC Voltage Rating: 600
• Current-limiting: Yes
• UL Listed: Class RK5, Guide JDDZ, File E4273
• CSA Certified: Class 1422-01, File 53787
• Amps: 175A
• Volts AC: 600V
• Time Delay: Yes
• Physical Size: 1.61" x 9.63"
• Family-Series: Fuse Class RK5
• Manufacturer-Brand: Cooper Bussmann
• Opening: Fuse Time Delay
• Type: Fuse General Purpose
