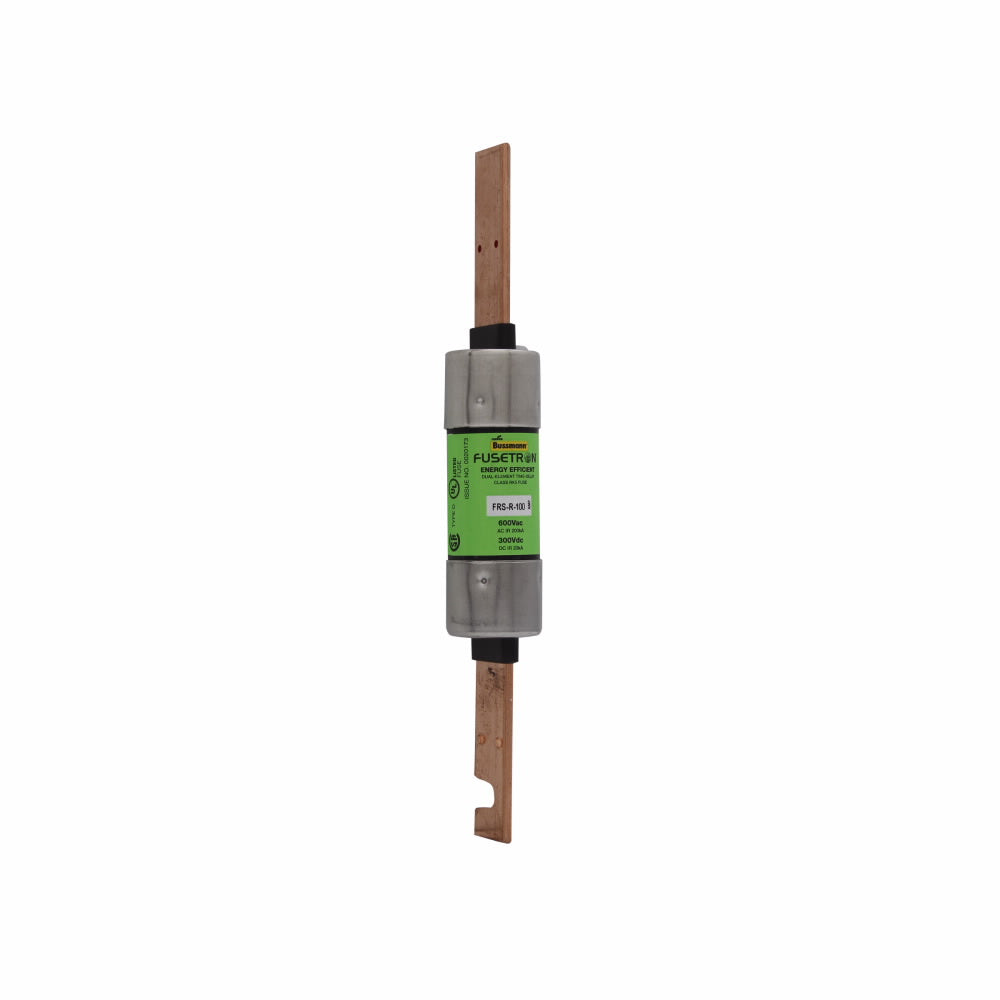

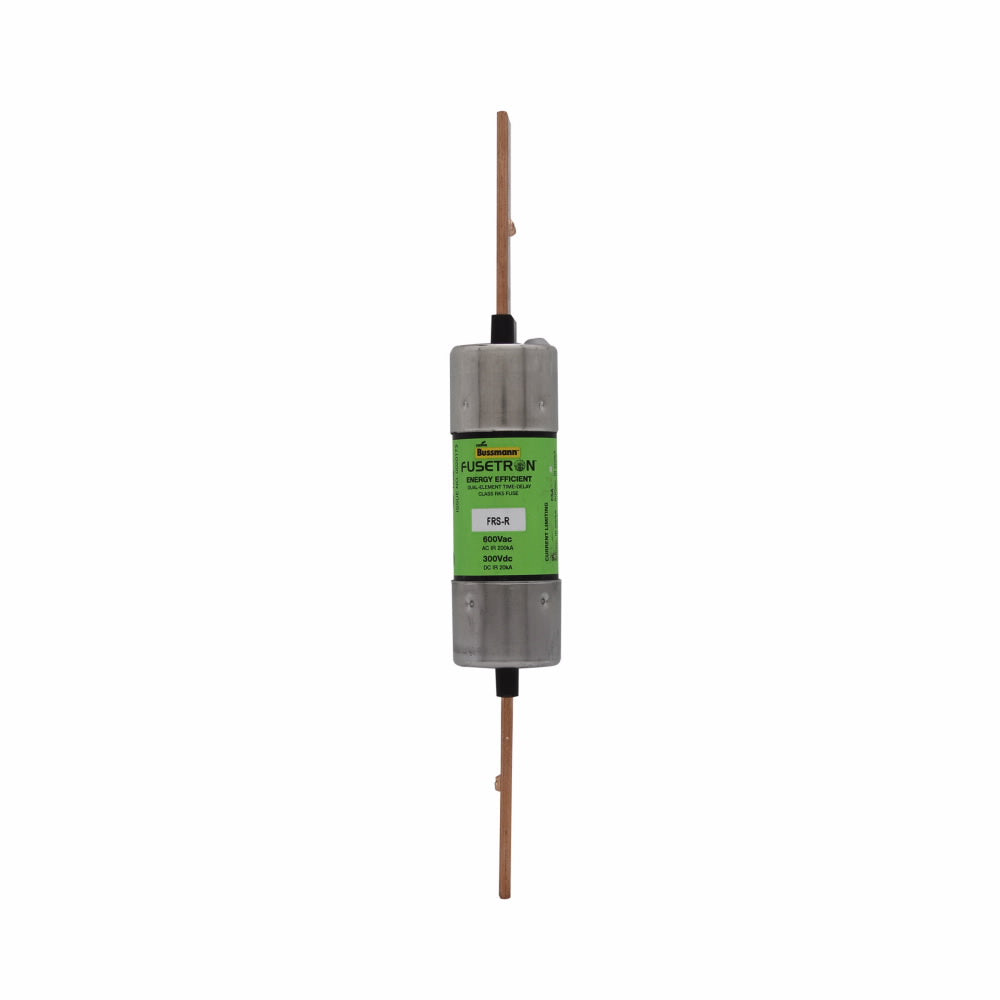

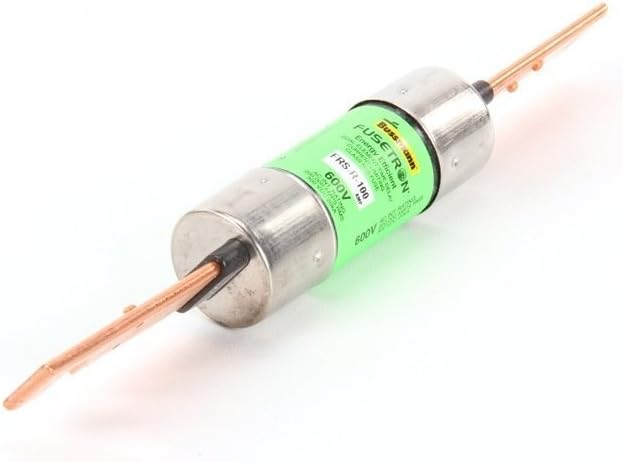

Cooper Bussman FRS-R-100 Fusetron Time Delay Fuse 100 A

Product Description

The COOPER BUSSMAN FRS-R-100 is a UL Class RK5 Fusetron fuse, providing energy-efficient advanced protection with its dual-element, time-delay construction. This current limiting renewable fuse is available in 600 VAC/300 VDC, with a 20/200 kA interrupt rating. It delivers a minimum of 10 seconds of time-delay at 500% of rated current. Ideal for combination starters, motor control centers, and power panelboards.

• Dual-element, time-delay construction
• Energy efficient advanced protection
• Current Limiting

Product Highlights

The COOPER BUSSMAN FRS-R-100 fuse offers reliable circuit protection with time-delay functionality and a high interrupt rating.

Product Information

Standard Information

• Brand: COOPER BUSSMAN
• Manufacturer Part Number: FRS-R-100

Technical Specifications

• Series: FRS-R
• Indicating/Non-Indicating: Non-Indicating
• Rejection/Non-Rejection: Rejection
• Current: 100 A
• Voltage: 600 VAC/300 VDC
• Interrupt Rating: 20/200 kA
• Class: RK5
• Response Time: 10 s at 500%
• Terminal Type: Blade
• Mounting: Holder Mount
• Body Type: Cartridge
• Element: Dual Element
• Body Material: Fiberglass
• Body Size: 1.11 in Dia x 7.88 in L
• Product Name: Eaton Bussmann series FRS-R fuse
• Catalog Number: FRS-R-100
• UPC: 051712508438
• Product Length/Depth: 7.88 in
• Product Height: 1.11 in
• Product Width: 1.11 in
• Compliances: CE Marked
• Product Type: Fuse
• Amperage Rating: 100 A
• Voltage rating: 600 Vac, 300 Vdc
• Number of elements: Dual
• Packaging type: Standard
• Connection: Blade end x blade end
• Fuse indicator: Non-indicating
• Time Delay: Yes
• AC Voltage Rating: 600
• Current-limiting: Yes
• UL Listed: Class RK5, Guide JDDZ, File E4273
• CSA Certified: Class 1422-01, File 53787
• Brand: Eaton Bussmann
• Mpn: FRS-R-100
• Gtin: 51712508438
• Material: Copper
• Specification Met: UL
• Manufacturer: Bussmann
• Applications: Combination Starters, Motor Control Centers, Machinery Disconnects, Power Panelboards
• Connection Type: Blade
• End Type: Blade
• Fuse Class: Class RK5
• Size: 1.11 In Diameter X 7.88 In Length
• Standard: CSA,E2186,UL
• Type: Current Limiting, Renewable, Time Delay
• Amps: 100
• Sub Brand: Fusetron
• 12-Digit UPC: 051712508438
• GTiN: 00051712508438
• Product UPC: 05171250843
