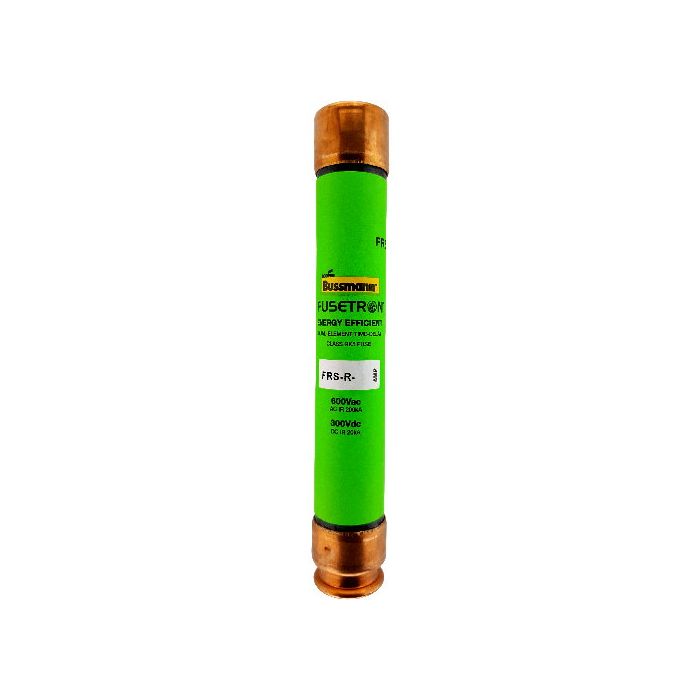

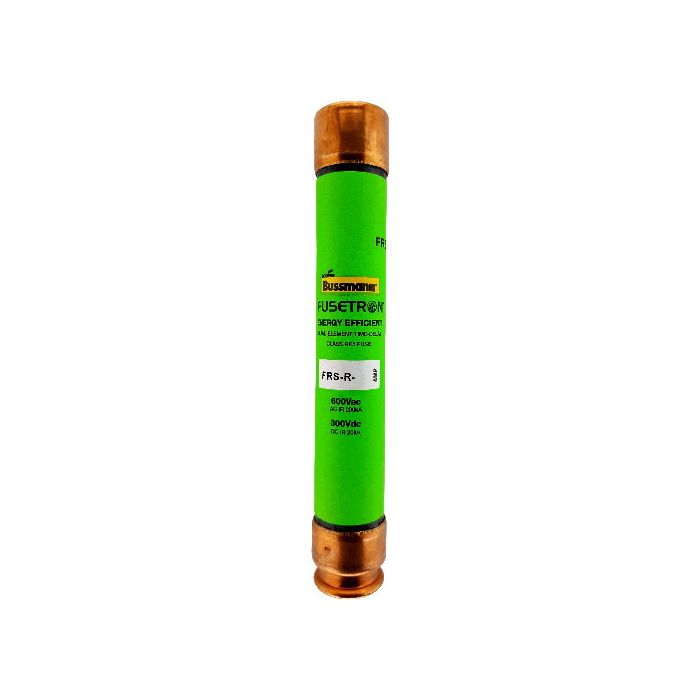

Cooper Bussman FRS-R-1-1/4 FUSETRON CLASS RK5 DUA 1 1/4 Amp

Product Description

The Cooper Bussmann FRS-R-1-1/4 Fusetron Class RK5 dual element fuse is rated for 1 1/4 Amps and 600 Volts AC. This time delay fuse features current-limiting protection and an interrupting rating of 200,000 AIC RMS. It is UL Listed as Class RK5, Guide JDDZ, File E4273 and CSA Certified, Class 1422-01, File 53787.

• 1 1/4 Amps
• 600 Volts AC
• UL Class RK5

Product Highlights

Cooper Bussmann Fusetron RK5 fuse with dual element and time delay for current-limiting applications.

Product Information

Standard Information

• Brand: COOPER BUSSMAN
• Manufacturer Part Number: FRS-R-1-1/4
• Country of Origin: United States

Technical Specifications

• Manufacturer: Bussmann
• Manufacturer #: FRS-R-1-1/4
• Parts Town #: BUSSFRS-R-1-1-4
• Units: Each
• Amps: 1 1/4
• Voltage: 600 Volts AC
• Class: RK5
• Element: Dual Element
• Time Delay: Time Delay
• Physical Size: 0.81" x 5"
• AC Voltage Rating: 600
• Interrupting Rating: 200 kAIC @ 600 V AC
• Current-limiting: Current-limiting
• UL Listed: Class RK5, Guide JDDZ, File E4273
• CSA Certified: Class 1422-01, File 53787
• BRAND: Cooper Bussmann
• SKU: FRS-R-1-1/4
• Amperage: 1 1/4
