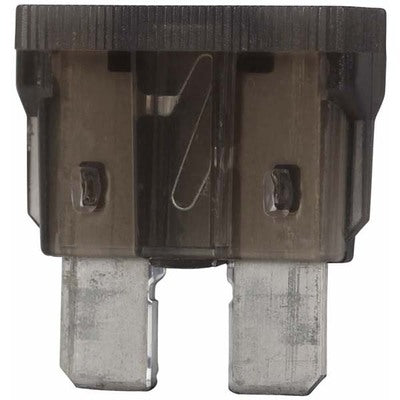

Cooper Bussman ATC-7-1/2 Eaton Bussmann series ATC blade fuse 7-1/2A

Product Description

The COOPER BUSSMAN ATC-7-1/2 Eaton Bussmann series ATC blade fuse is a fast-acting fuse with a 7-1/2A amperage rating and a 32Vdc voltage rating. This blade fuse has a 1 kAIC interrupt rating and is UL Listed and RoHS compliant. It is designed without an indicator.

• Fast-acting
• Without indicator
• Industry standard color coding for easy identification of fuse rating

Product Highlights

The COOPER BUSSMAN ATC-7-1/2 blade fuse is fast-acting and suitable for automotive and low voltage control circuits.

Product Information

Standard Information

• Brand: COOPER BUSSMAN
• Manufacturer Part Number: ATC-7-1/2
• Country of Origin: Japan

Technical Specifications

• Product Name: Eaton Bussmann series ATC blade fuse
• Catalog Number: ATC-7-1/2
• UPC: 051712703239
• Product Length/Depth: 0.75 in
• Product Height: 0.2 in
• Product Width: 0.49 in
• Compliances: RoHS Compliant
• Certifications: UL Listed
• Product Type: Blade fuse
• Amperage Rating: 7-1/2A
• Interrupt rating: 1 kAIC
• Voltage rating: 32 Vdc
• Packaging type: Standard
• Fuse indicator: Non-indicating
• Special features: Without indicator
• Fuse Style: Fast Acting
• Amperage: 7.5 A
• Overall Length: 0.75 in
• Overall Height: 0.736 in
• Overall Width: 0.201 in
• Finish: Tinned
• Material: Zinc (Terminal & Element); Polycarbonate (Housing)
• Blown Fuse Indicator: No
• Application: Low Voltage Control Circuits; Automotive
• Standards: RoHS Complaint; UL Recognized File E56412, Guide JFHR2, UL 248-1 (1-40 A); ISO 8820-3 / SAE J1284 / JASO 612 (1-40A); SAE J1171 (Ignition Protection)
• Series: ATC
• Primary brand: Eaton
• Secondary brand: Cooper Bussmann
• Main function: Fuse
• Product series / family name: LV supplemental fuses
• Sub-range name: Blade-type fuses
• Functions: Low-Voltage (LV) fast-acting blade-type fuse
• Rated current: 7.5A
• Rated Voltage (DC): 32Vdc
• Short circuit breaking rating: 1kA (at 30Vdc; UL)
• Technical compatibility with: automotive, low voltage control circuits
• Order code / Manufacturer SKU: ATC-7-1/2
• Manufacturer product status: Commercialized
• UPC code: 051712703239
• Compliant with standard(s): UL Recognized Guide JFHR2 File E56412, SAE Standard J1284
