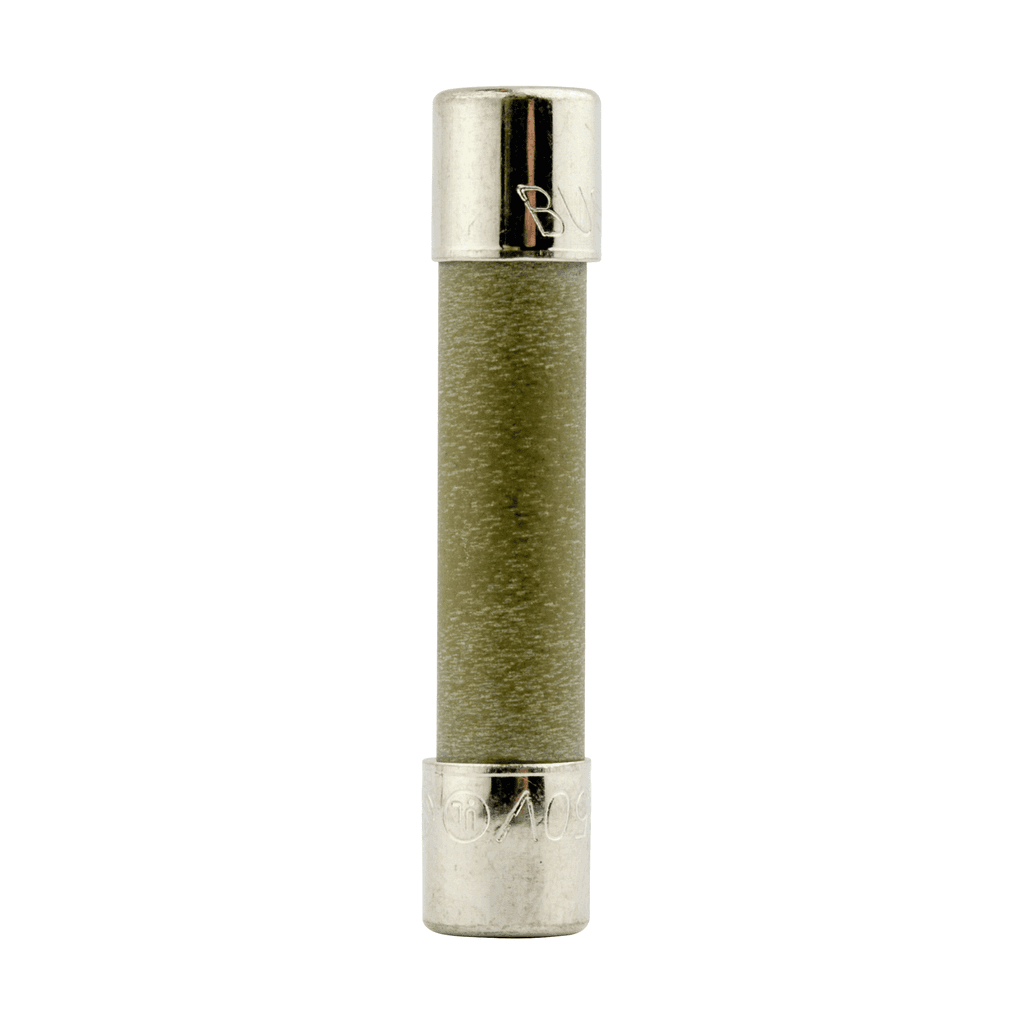

COOPER BUSSMAN ABC-15-R Fuse 15 A

Product Description

The COOPER BUSSMAN ABC-15-R is a fuse designed to provide circuit protection. This fast-acting fuse features a ceramic body that enables higher amp and volt combinations. It is well-suited for electronic circuits.

• Fast-acting design for quick response
• Ceramic body for enhanced durability
• Fits various electronic applications

Product Highlights

This fuse protects sensitive equipment effectively with a voltage rating of two hundred fifty volts alternating current, one hundred twenty-five volts direct current, and thirty-two volts self-certified.

Product Information

Standard Information

• Product Name: Eaton Bussmann series ABC fast-acting fuse
• Catalog Number: ABC-15-R

Technical Specifications

• UPC: 051712646192
• EAN: 5027590211406
• Product Height: 32 mm
• Product Diameter: 6.4 mm
• Compliances: RoHS Compliant, CE Marked
• Amperage Rating: 15 A
• Melting (I2T): Typical pre-arc: 200.2
• Resistance: 0.00553 ohms DC cold
• Interrupt Rating: 10 kAIC at 125 Vac/dc, 750 AIC at 250 Vac
• Fuse Indicator: Non-indicating
• Connection: Ferrule end x ferrule end
• Response Time: 4 hr at 100%, 60 min at 135%, 120 sec at 200%
• Material: Nickel-plated brass endcaps, Ceramic tube
• Quantity: 5
• Voltage Rating: 250 Vac, 125 Vdc, 32 Vac (self certified)
• Type: Electronic
• Application: Electronic circuits
• End Type: Ferrule
• Connection Type: Ferrule
• Voltage: 125 volts, 250 volts, 32 volts
• Interrupt Rating: 10 kiloamps
• Amperage: 15 amperes
