Product Description

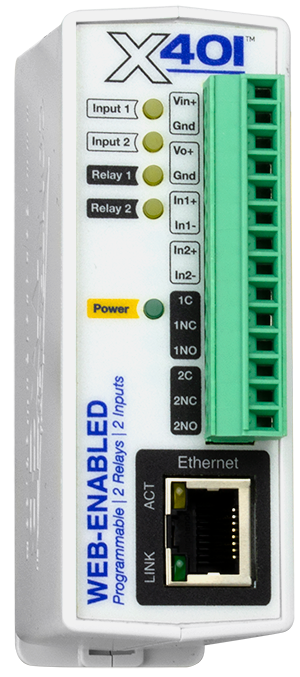

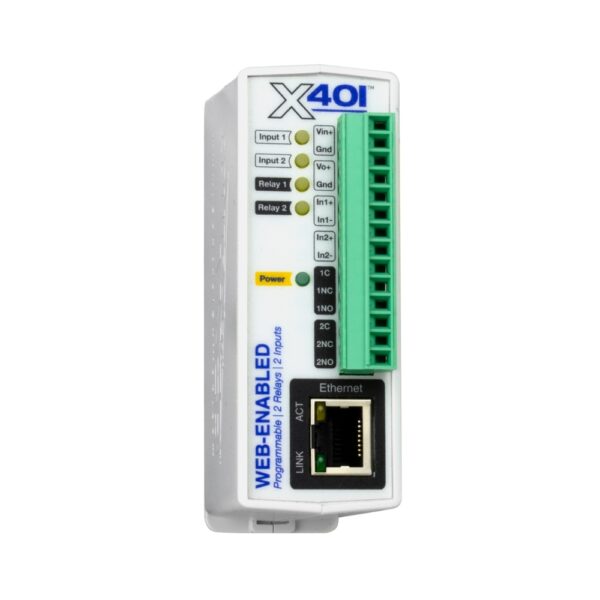

The ControlByWeb X-401-E combines two SPDT relays with two optically isolated inputs in a compact, industrial-grade module. It features a browser-based interface, embedded GUI logic builder, and open protocols for seamless integration. Ideal for process monitoring, equipment reboot, and alarm control, the X-401-E provides a reliable edge-control solution.
- 2 Relays & 2 Digital Inputs
- Ethernet, Cellular, or WiFi
- 9-28VDC and/or POE
Product Highlights
Dual relay and input module with SPDT relays, isolated inputs, and multiple connectivity options for reliable edge-control in various applications.
Product Information
Standard Information
-
Brand: ControlByWeb
-
Manufacturer Part Number: X-401-E
Technical Specifications
-
Power Requirements Voltage: POE and/or 9-28 VDC
-
Power Requirements Max Current: 233mA
-
Relay Contacts Number of Relays: 2
-
Relay Contacts Max Voltage: 28VAC, 24VDC
-
Relay Contacts Max Current: 3A
-
Relay Contacts Contact Type: SPDT (Form C)
-
Relay Contacts Load Type: General Purpose
-
Relay Contacts Contact Resistance: < 50 milliohms initial
-
Relay Contacts Contact Material: AgSnO2
-
Relay Contacts Electrical Life: 100K cycles (Typical)
-
Relay Contacts Mechanical Life: 10M cycles (Typical)
-
Relay Contacts Environmental Rating: Over voltage Category II, Pollution Degree 2
-
Relay Contacts Relay Modes: ON/OFF or Pulsed
-
Relay Contacts Pulse Timer Duration: 0.1 to 86,400 Seconds (1-day)
-
Digital Inputs Number of Inputs: 2
-
Digital Inputs Type: Optically-Isolated
-
Digital Inputs Voltage Range: 4-26VDC
-
Digital Inputs Current: 950uA @ 4V, 8.5mA @ 26V
-
Digital Inputs Minimum Hold Time: 20ms
-
Digital Inputs Input Functions: Monitor State, Control Relays, Control Remote Relays, Scalable Counter, On Timer, Total On Timer, Frequency
-
Digital Inputs Maximum Count: 24-bit
-
Digital Inputs Max Count Rate: 200Hz Max (Dependent on Configuration)
-
Digital Inputs Edge Trigger: Rising, Falling or Both
-
Real-Time Clock Setup: Manual or NTP(Network Time Protocol) setup
-
Real-Time Clock NTP Sync Period: Once, Daily, Weekly, On Powerup
-
Real-Time Clock Auto Daylight Savings Adjustment: Battery (capacitor) Power Backup
-
Capacitor Power Backup Backup Functions: Retain Real-Time Clock, 1 Register, 2 Counters, 2 Relay States
-
Capacitor Power Backup Backup Duration: 24 hours
-
Network Type: 10/100 Base-T Ethernet Port
-
Network Setup: Static or DHCP IP address configuration
-
Connectors Power, Outputs, and Inputs: 14-Position, 3.81mm, Removable
-
Connectors Network: 8-pin RJ-45
-
LED Indicators Number of LEDs: 7
-
Operating Temperature: -40
0F to 150
0F (-40
0C to 65.5
0C)
-
Enclosure Material: Lexan 940 Polycarbonate Plastic
-
Enclosure Flame Rating: UL94 V0
-
Protocols: HTTP, HTTPS, SSL, XML, MQTT, Modbus TCP/IP, SNMP, SMTP, Remote Services
-
Log File Size: 512K (up to 8,448 logs)
-
Storage: Nonvolatile Flash
-
Buffer Architecture: Circular Buffer
-
Password Settings Password Length: 6-18 Characters
-
Electromagnetic Compliance: IEC CISPR 22, CISPR 24
EU EN55024, EN55022
X-401-I: FCC 47CFR15 (Class B)
X-401-E: FCC 47CFR15 (Class A)
-
Mounting Type: DIN Rail
-
Termination Style: RJ-45, Screw Terminal
-
Type: Input Module
-
Approval Agency: CE, UL
-
Voltage - Supply: 9 ~ 28VDC
