Product Description

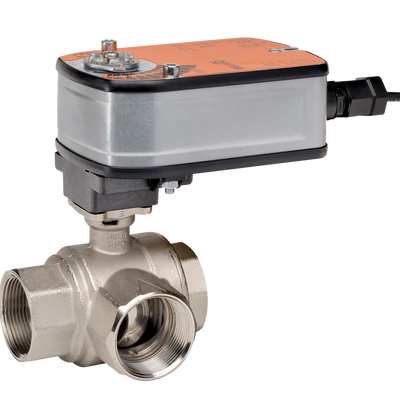

The Belimo B325+LF24-SR-S is a control valve with a 1 inch valve size and 3-way pattern. Its controllable flow range is 75B0 with a Cv rating of 30. It operates with AC/DC24V and has a spring return actuator type.
- 3-way pattern
- 1 inch valve size
- Cv rating of 30
Product Highlights
This control valve is suitable for chilled or hot water systems using up to 60 percent glycol. It has an internal thread end fitting and a stainless steel trim, ensuring durability in demanding applications.
Product Information
Standard Information
-
Brand: Belimo
-
MPN: B325+LF24-SR-S
Technical Specifications
-
Angle of Rotation: 90
-
Controllable Flow Range: 75B0
-
Cv: 30
-
End Fitting: Internal thread
-
Fluid: Chilled or hot water up to 60 percent glycol
-
Pattern: 3-way
-
Pressure Independent: No
-
Trim: Stainless steel
-
Valve Size: 1 inch
-
Actuator Type: Spring return
-
Auxiliary Switches: 1 x SPDT
-
Degree of Protection: IP54 NEMA 2
-
Electrical Connection: Cable
-
Power Consumption (Holding): 1 W
-
Power Consumption (Running): 2.5 W
-
Running Time (Fail-safe): Less than 25s
-
Running Time (Motor): 150s per 90
-
Voltage AC/DC: AC/DC24V
