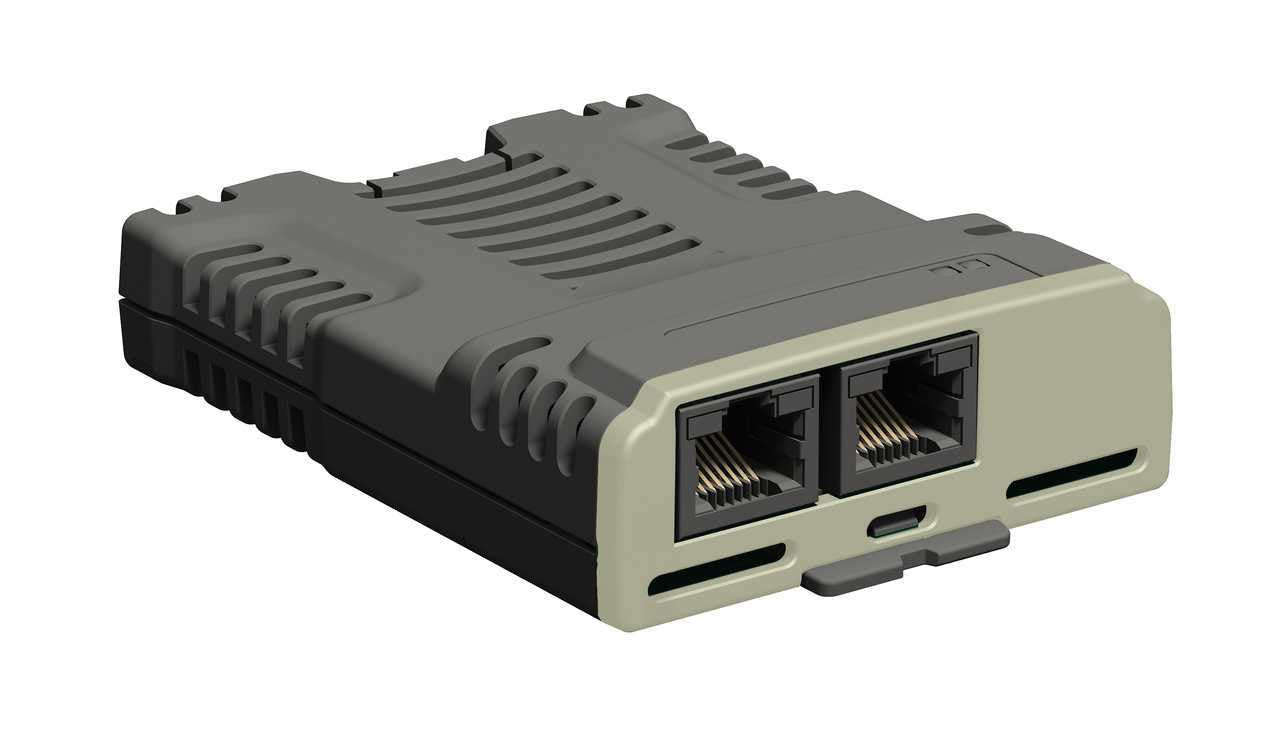

Control Techniques SI-ETHERNET

Product Description

The Control Techniques SI-ETHERNET module offers fast Ethernet communication with support for IEEE 1588 V2 Precision Time Protocol, HTTP, SMTP, EtherNet/IP, and Modbus TCP/IP. This module ensures quick drive access and global connectivity for integration with various IT networking technologies, including wireless solutions.

• Supports real-time Ethernet communication protocols.
• Dual 100 BASE-TX RJ45 connectors provide full-duplex connectivity.
• Integrated switches allow for easy line network configurations.

Product Highlights

This module enables effective network synchronization and cyclic data exchange, functioning smoothly in multiple network environments.

Product Information

Standard Information

• Brand: Control Techniques
• MPN: SI-ETHERNET

Technical Specifications

• Protocols Supported: IEEE 1588 V2 Precision Time Protocol, HTTP, SMTP, EtherNet/IP, Modbus TCP/IP
• Network Synchronization Jitter: Less than 1 µs (typically <200 ns)
• Cycle Time: 1 ms for synchronous cyclic data
• Connectors: Dual 100 BASE-TX RJ45
• Connectivity: Shielded twisted pair, full-duplex 100 Mbps with auto crossover correction
• Network Configuration: Line networks (daisy chaining)
• Operating Mode: Full duplex (both ports as a network switch)
• Communication Capabilities: Master/follower and peer-to-peer
