Control Techniques S100-03423 Commander S AC Drive 5 HP

Product Description

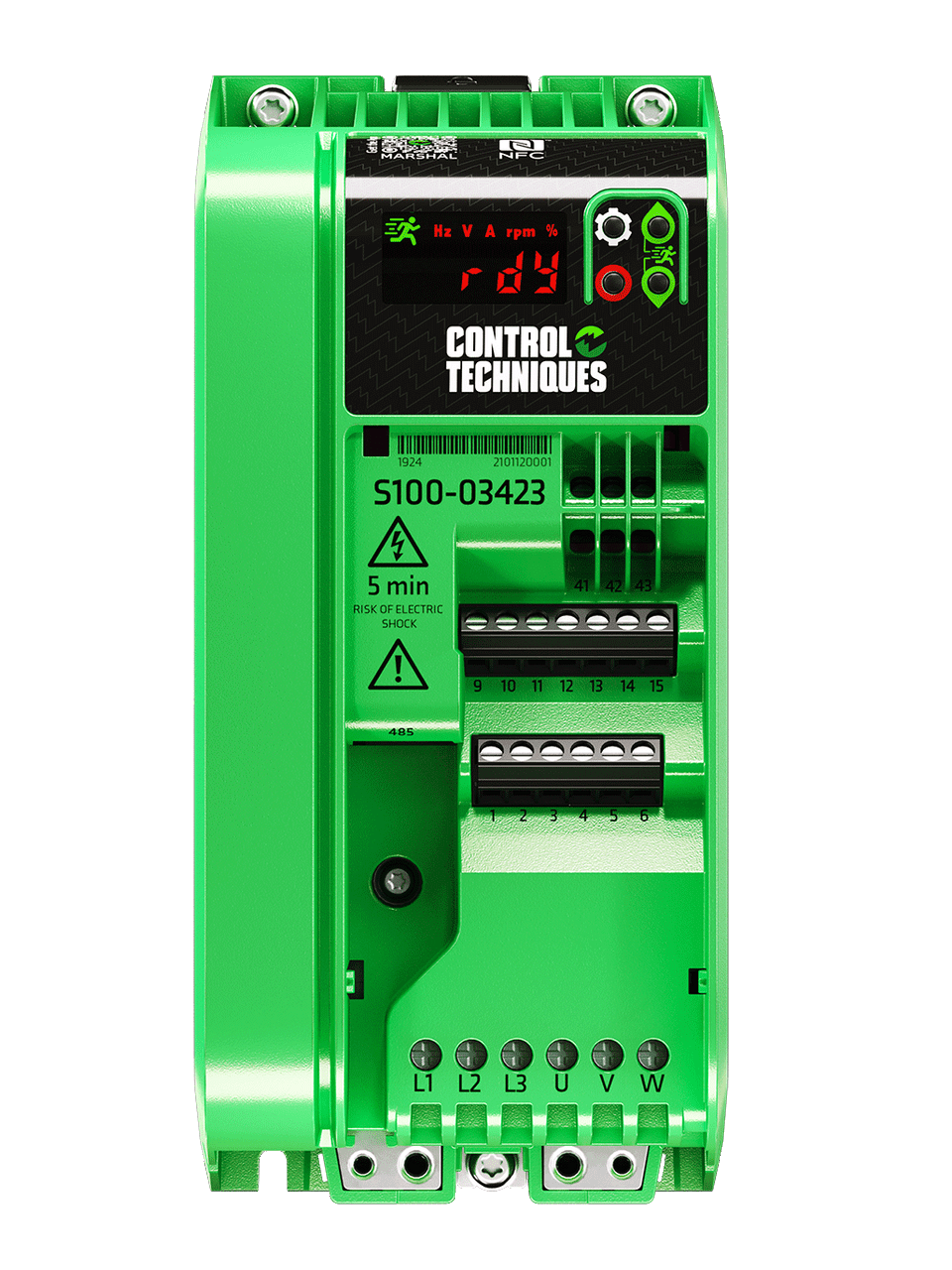

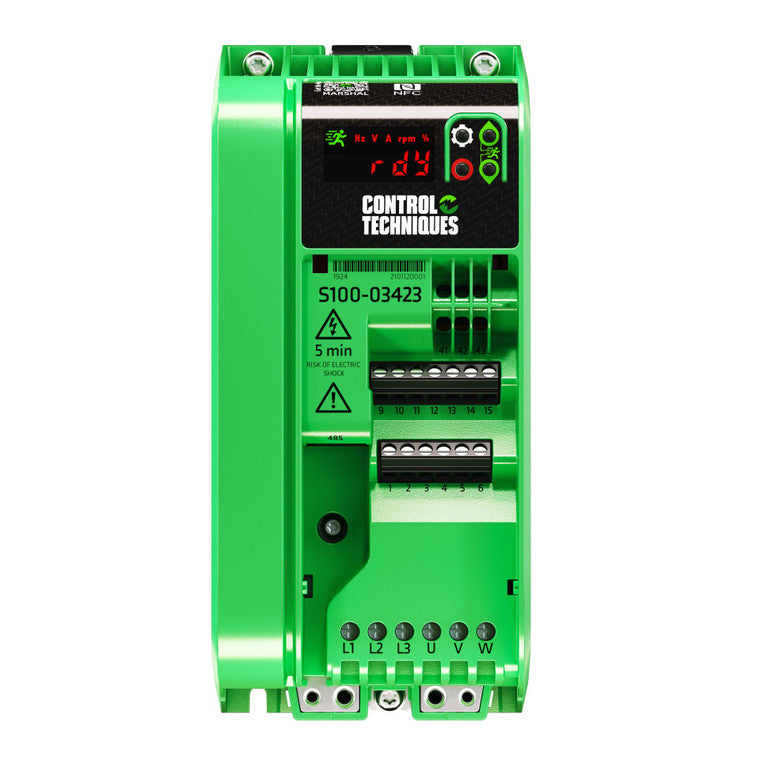

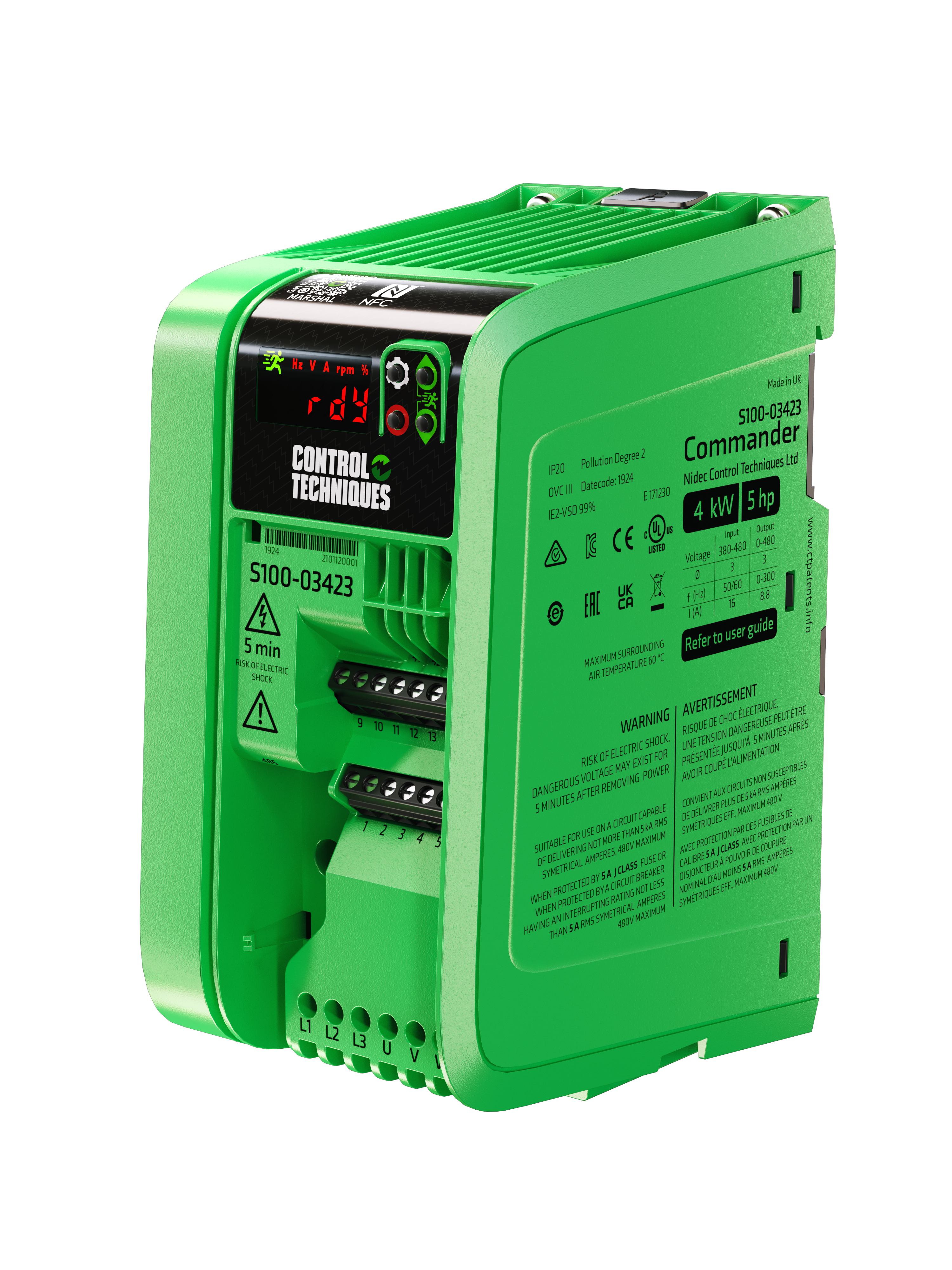

The Control Techniques S100-03423 is a micro AC drive from the Commander S series. It is built for applications needing a compact variable frequency drive that is easy to install. The drive operates on three-phase 480V input and output.

• Supports NFC communication for configuration and monitoring.
• Heavy-duty overload rating of 150%.
• Designed for efficient motor control and multi-phase applications.

Product Highlights

The Commander S AC drive is ideal for various industrial applications requiring reliable motor control.

Product Information

Standard Information

• Brand: Control Techniques
• Series: Commander S

Technical Specifications

• Model: S100-03423-0B0000
• Horsepower Rating: 5 HP
• Rated Current: 8.8 A
• Input Voltage: 480 V
• Output Voltage: 480 V
• Input Frequency: 50/60 Hz
• Output Frequency: 0 to 300 Hz
• Enclosure Rating: IP20
• Mounting Type: DIN rail mount, Screw mount
• Operating Temperature: 14°F to 104°F
• Height: 7.56 in
• Width: 3.54 in
• Depth: 5.20 in
• Weight: 4.50 lbs
• Communication Protocol: Modbus RTU, NFC
• Power Range: 0.25 to 5 hp
• Duty Rating: Heavy Duty
• Switching Frequency: 4 kHz and 12 kHz
• Motor Control: Linear V to F, Square V to F, Resistance Compensation
• Stopping Modes: Coast, Ramp, DC Injection Braking
• Relay Outputs: 1 x Relay (single pole, double throw)
• Certifications: CE, cULus, C-Tick
