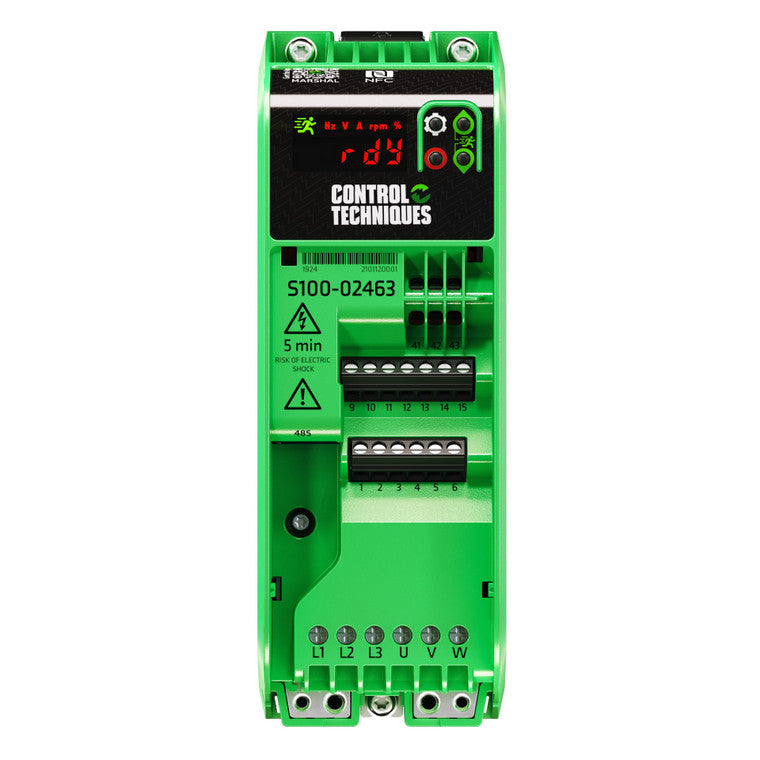

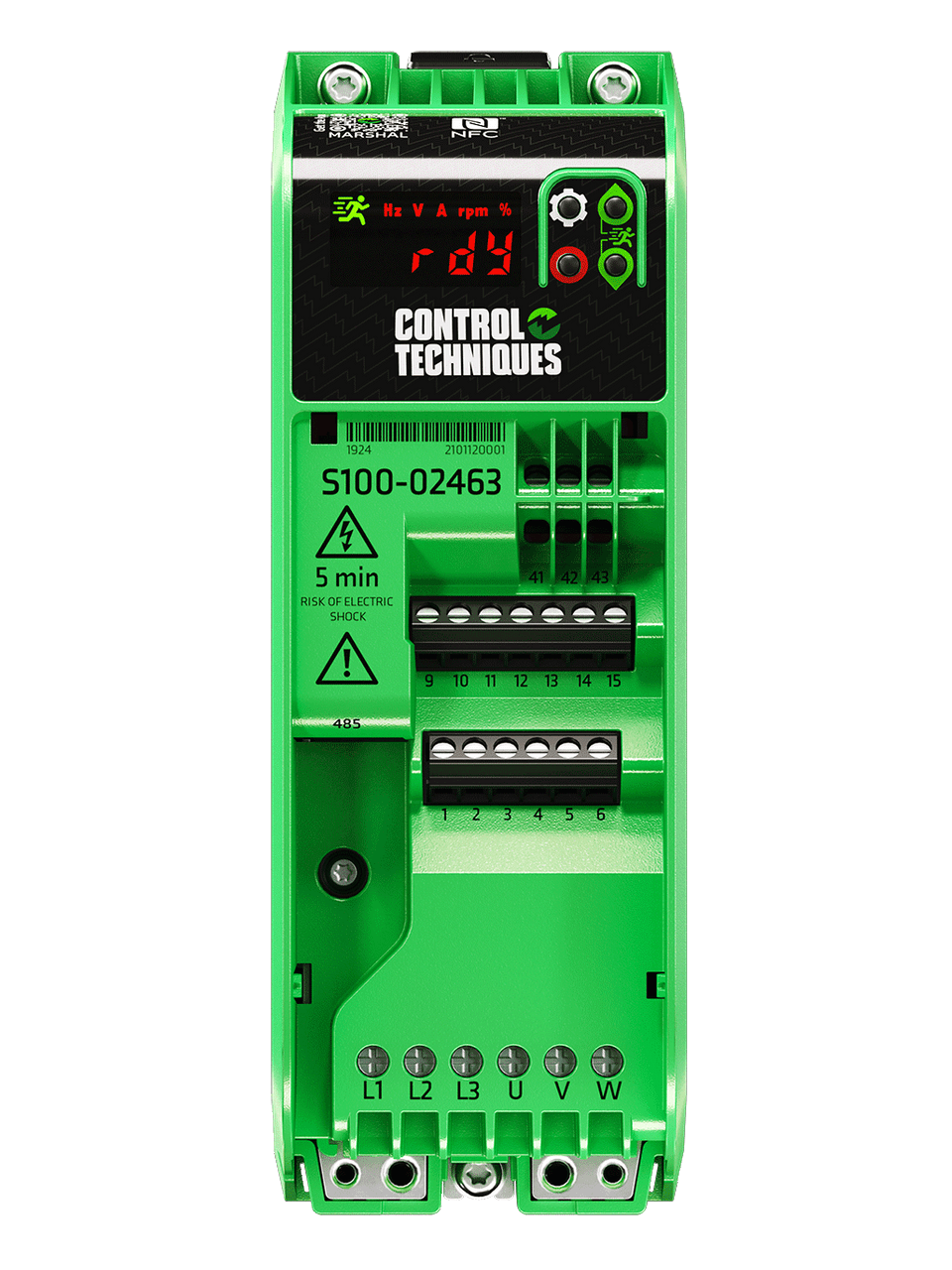

Control Techniques S100-02453 Commander S Series Micro AC Drive 2 HP

Product Description

The Control Techniques S100-02453 is a Commander S series micro AC drive. It is suitable for three-phase 460/480V AC input and output. The drive includes EMC filters rated to IEC 61800-3, category C3. This drive is intended for motor control and energy efficiency in basic applications. It can be configured using the MARSHAL App via NFC and features a click-on/click-off DIN rail mount for easy installation.

• Maximum continuous output current of 3.7A (2HP) for normal and heavy duty applications.
• Includes motor thermal protection and fire mode for smoke extraction.
• Offers overload capacity up to 150% for swift acceleration and load changes.

Product Highlights

This micro AC drive is designed for reliable motor control while saving energy. It is user-friendly and versatile for different mounting options.

Product Information

Standard Information

• Brand: Control Techniques
• Series: Commander S

Technical Specifications

• MPN: S100-02453-0B0000
• Horsepower Rating: 2 HP
• Input Voltage: 460 V
• Output Voltage: 480 V
• Output Current: 3.7 A
• Input Phase: Three Phase
• Output Frequency: 0 to 300 Hz
• Enclosure Rating: IP20
• Operating Temperature: 14 °F to 104 °F
• Height: 7.56 in
• Width: 2.70 in
• Depth: 5.20 in
