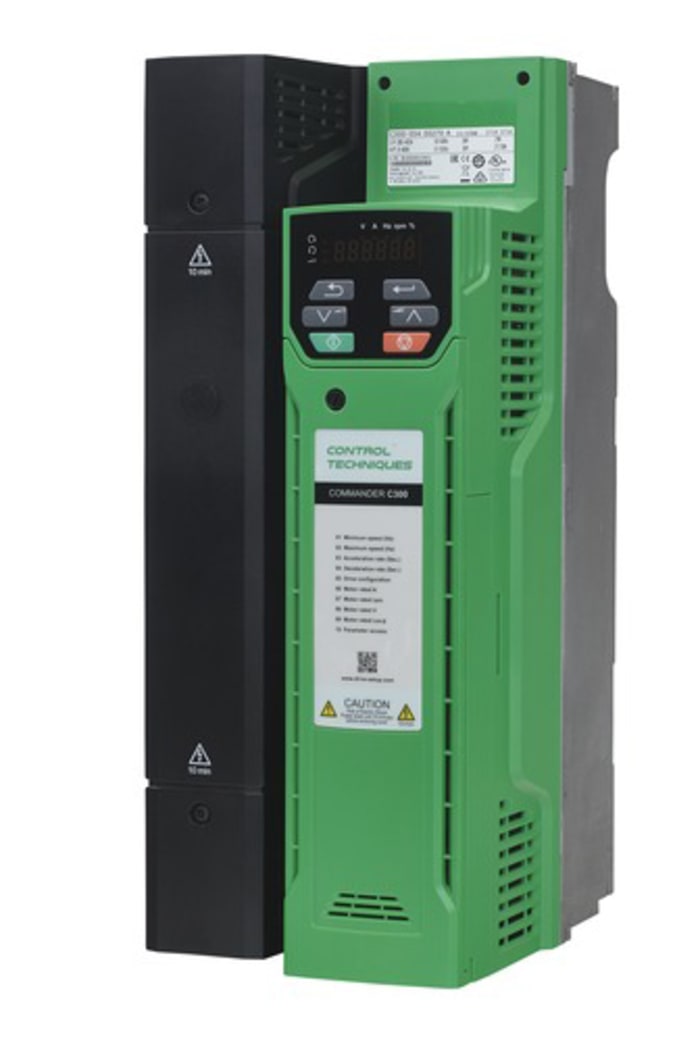

Control Techniques C300-05400300 Inverter Drive 15 kW

Product Description

The Control Techniques C300-05400300 is a variable speed inverter drive intended for controlling AC motors. It manages a 3-phase supply voltage ranging from three hundred eighty to four hundred eighty V AC and delivers an output current of thirty A. This unit is structured for panel mounting and belongs to the C300 series which carries an IP20 rating. Additionally, it offers support for multiple field bus communication types with optional adaptors.

• Designed for AC motor control.
• Accepts 380 to 480 V AC, 3-Phase input.
• Provides IP20 protection.

Product Highlights

The inverter drive supports a variety of functions ideal for motor control applications. It is built for efficient energy usage and enhanced performance.

Product Information

Standard Information

• Brand: Control Techniques
• Power Rating: 15 kW

Technical Specifications

• Phase: 3
• Input Voltage: 380 to 480 V AC
• Output Current: 30 A
• For Use With: AC Motors
• Series: C300
• Field Bus Communication Type: AI-485 Adaptor, SI-CANopen, SI-DeviceNet, SI-EtherCAT, SI-Ethernet, SI-PROFIBUS, SI-PROFINET
• IP Rating: IP20
• Output Frequency: 0 to 550 Hz
• Drive Type: Variable Speed
• Mounting Type: Panel Mount
• Function: Motor Control
• Overall Dimensions: 391 mm depth, 200 mm width, 143 mm length
