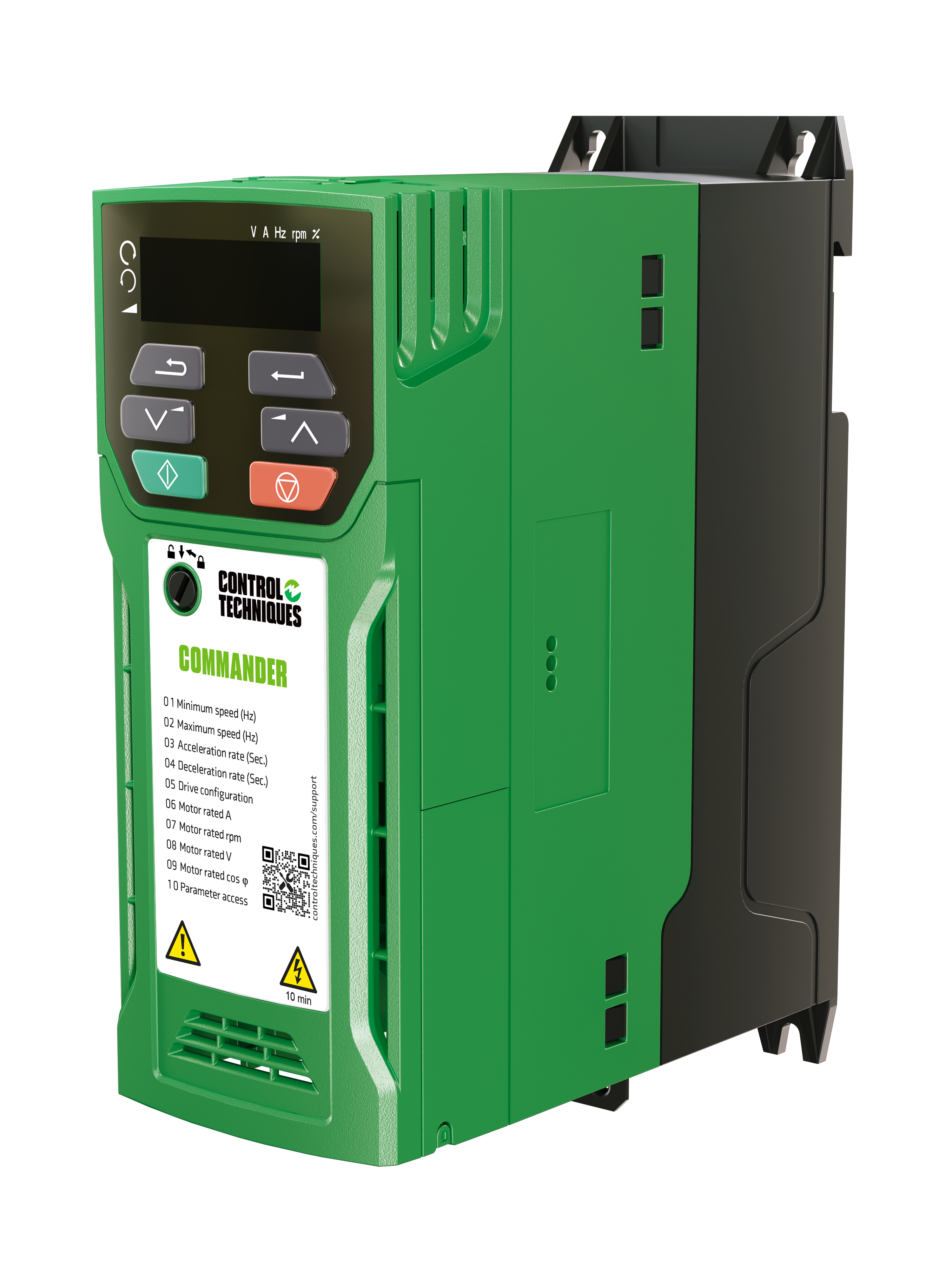

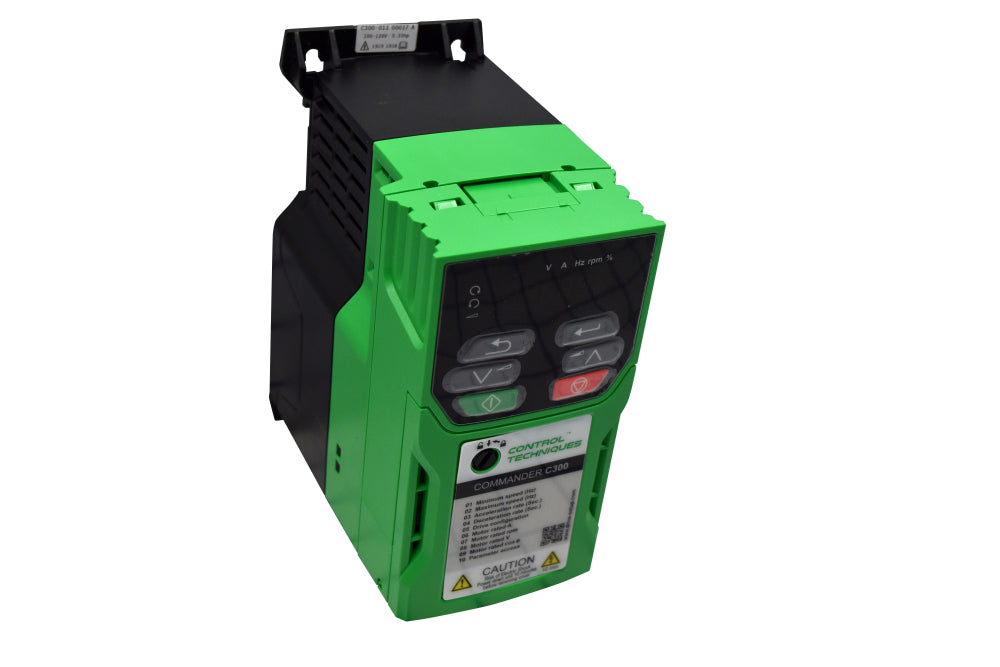

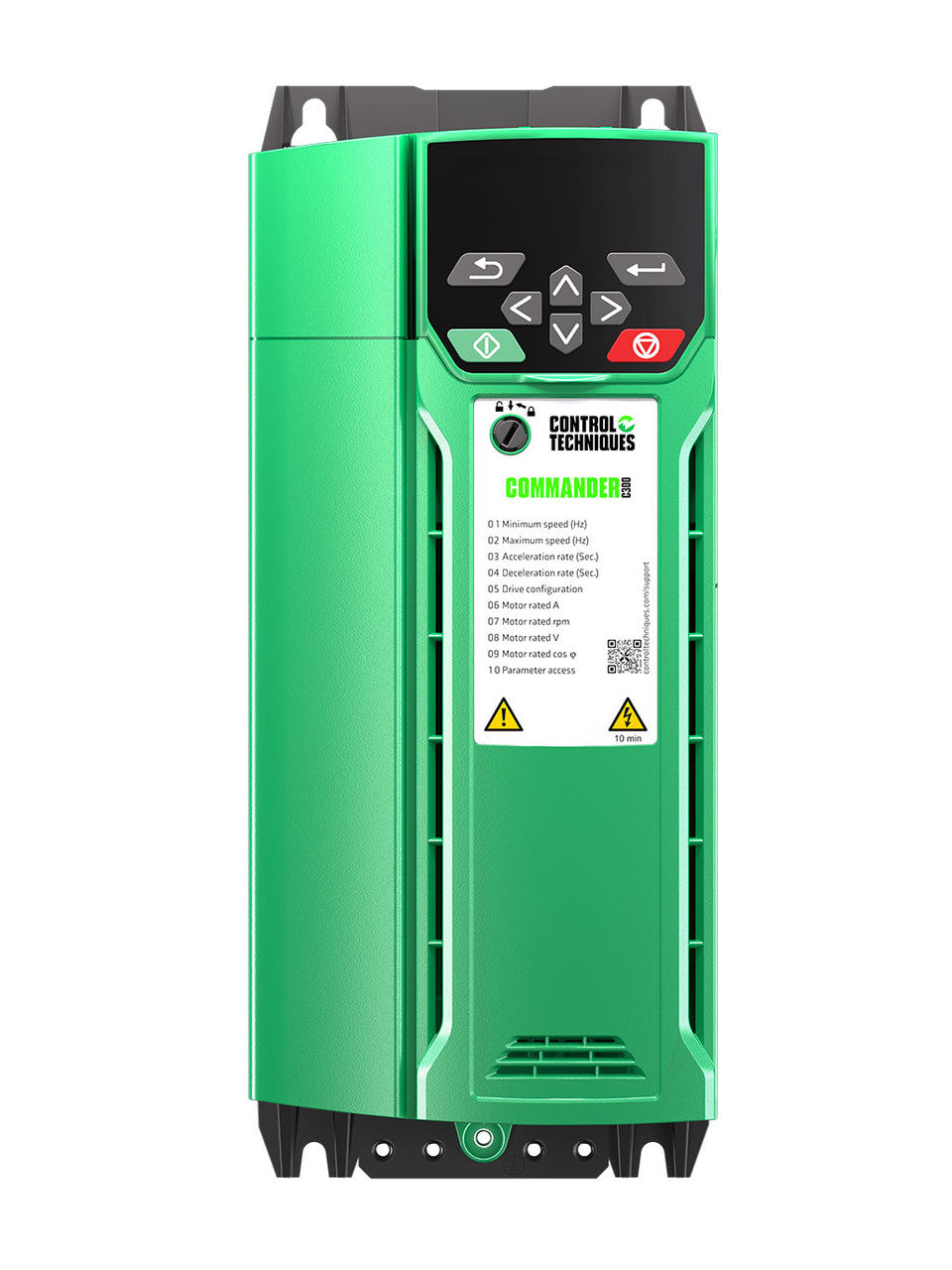

Control Techniques C300-04200176 Commander C300 AC Drive

Product Description

The Control Techniques C300-04200176 is an open-loop AC drive from the Commander C300 series. It provides effective control over induction motors, supporting both vector and V/Hz control modes. Designed for motor speed regulation, it includes dual safe torque off channels for enhanced safety. This unit accepts three-phase two hundred thirty volts AC input and outputs three-phase two hundred thirty volts AC.

• Input Voltage Range: One hundred eighty to two hundred sixty-four volts
• Maximum Output Current: Seventeen point six amps
• Features dual Safe Torque Off (STO)

Product Highlights

The Commander C300 AC Drive is ideal for various applications, offering flexibility in control methods and robust performance.

Product Information

Standard Information

• Manufacturer: Control Techniques
• Manufacturer Part Number: C300-04200176

Technical Specifications

• Input Phase: Three
• Input Frequency: Forty-five to sixty-six Hz
• Output Frequency Range: Zero to five hundred fifty Hz
• Horsepower (Max): Five
• Enclosure Rating: IP20
• Ambient Operating Temperature: Minus twenty degrees Celsius to forty degrees Celsius
• Cooling Method: Forced convection
• Vibration: Tested to IEC standards
