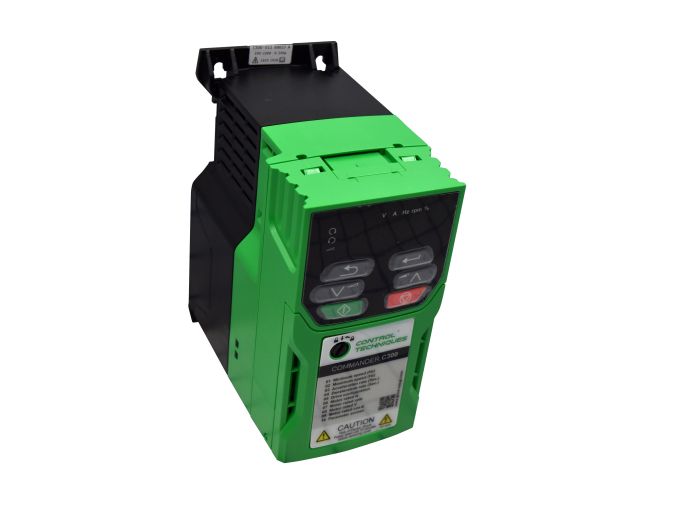

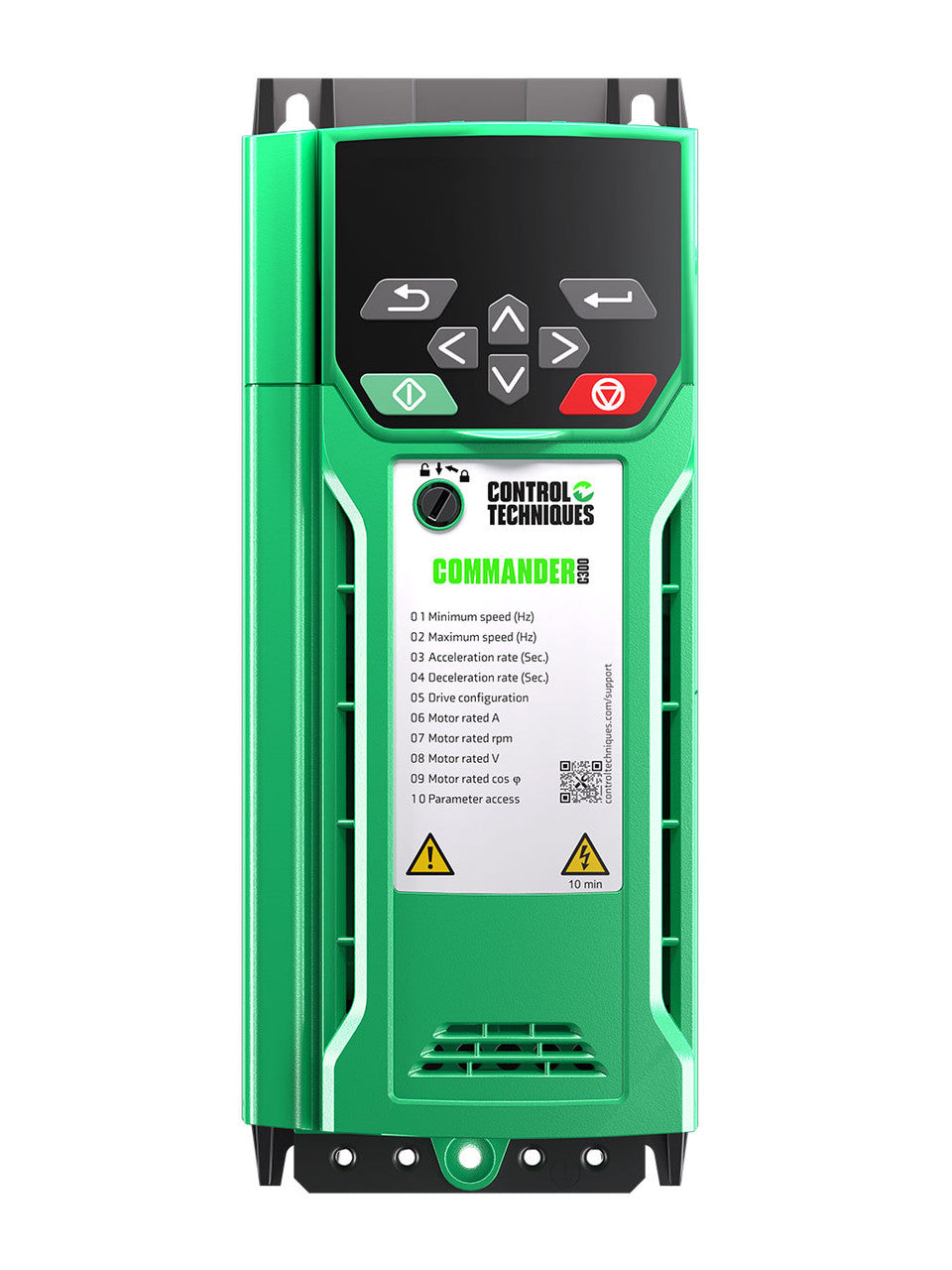

Control Techniques C300-03400073 AC Drive 3 HP 460V 3-Phase

Product Description

The Control Techniques C300-03400073 is an AC drive engineered for motor control. It supports open-loop vector or V/Hz induction motor control, featuring Open Loop Rotor Flux Control. This model operates on 460V 3-phase input and delivers 460V 3-phase output. The drive is suitable for 3 horsepower ratings and handles loads up to 7.3 amps, making it applicable for both normal and heavy-duty operations.

• Rated for 3 HP and 7.3 Amps
• Supports 460V 3-Phase input and output
• Includes dual safe torque off channels

Product Highlights

This drive offers dynamic braking capabilities and is ideal for various applications due to its advanced control features.

Product Information

Standard Information

• Brand: Control Techniques
• Manufacturer Part Number: C300-03400073

Technical Specifications

• Rated Voltage: 460 V
• Rated Amps: 7.3 A
• Output Frequency Range: 0 to 550 Hz
• Cooling Method: Forced convection
• Enclosure Rating: IP20
• Dimensions: Eight point nine inches height, three point five four inches width, six point seven seven inches depth
• Ambient Operating Temperature: -20°C to 40°C
• Drive Overload Trip: Programmable
