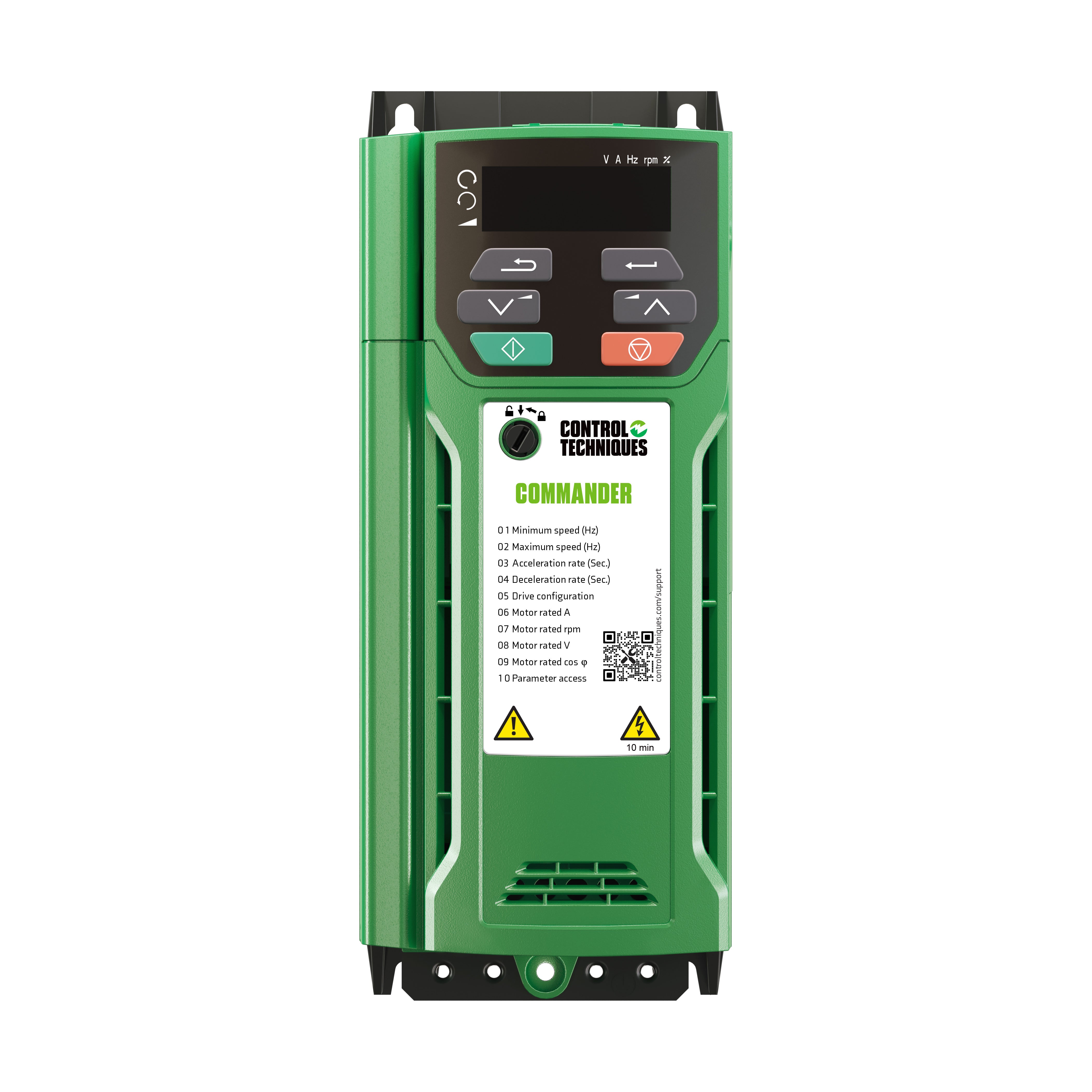

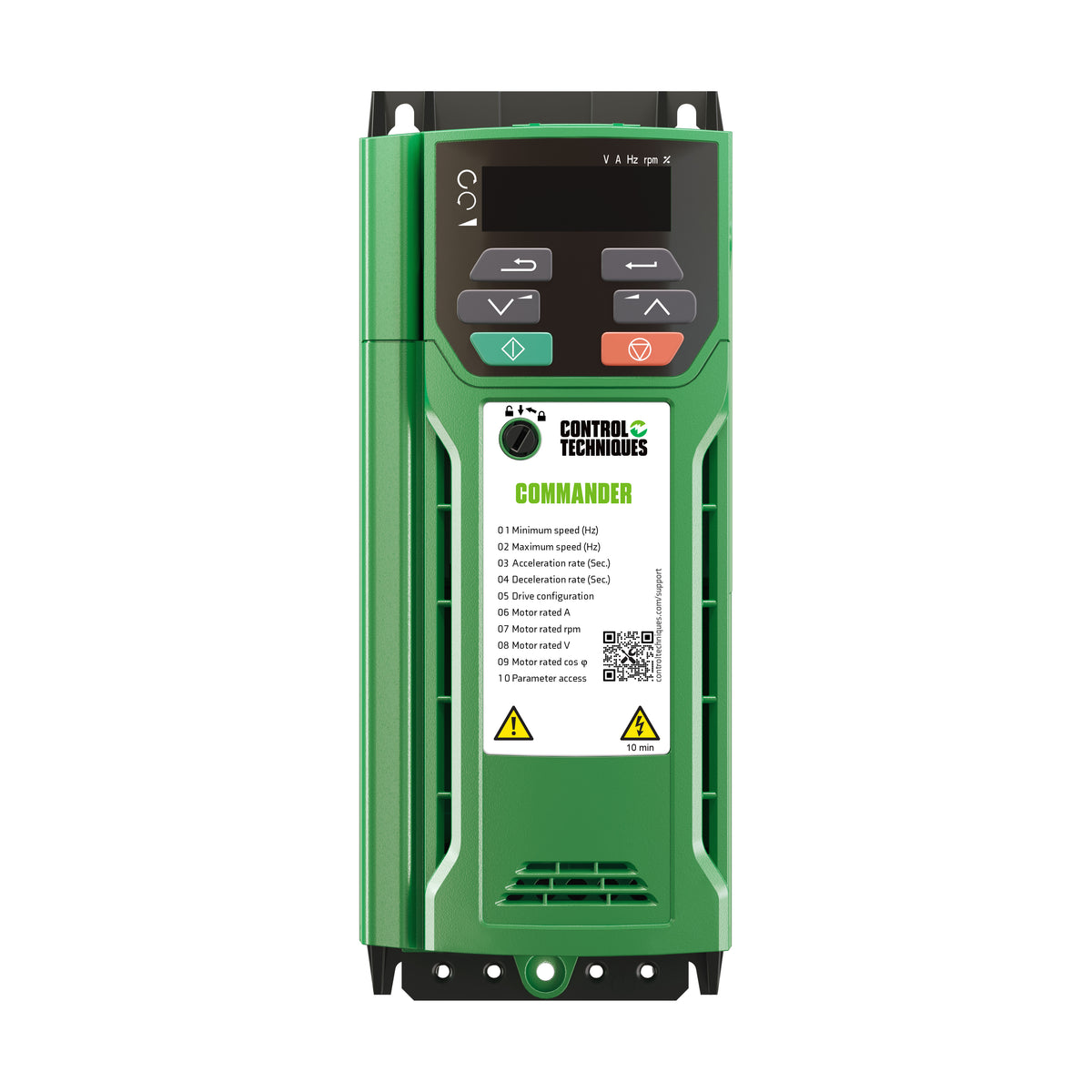

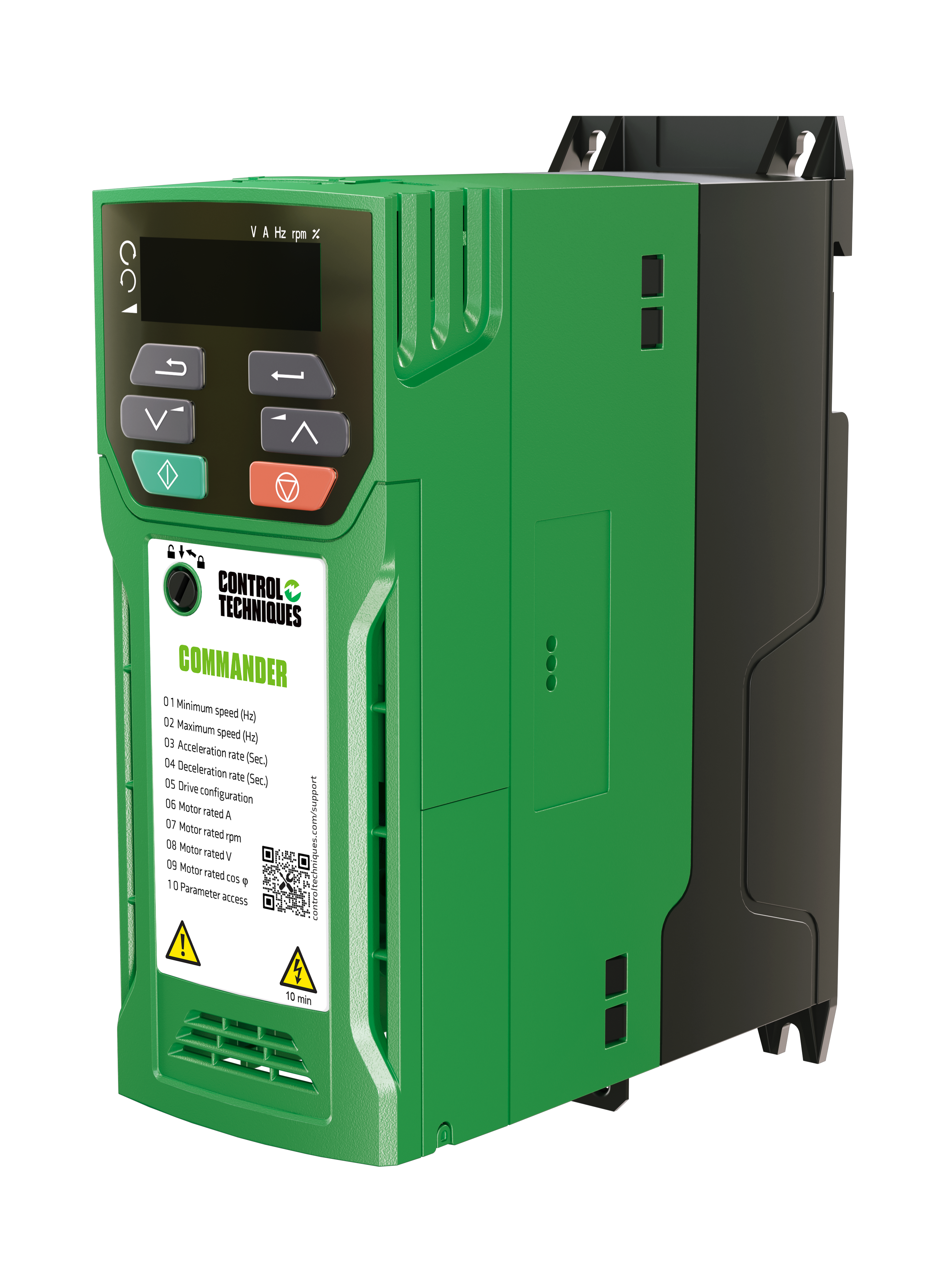

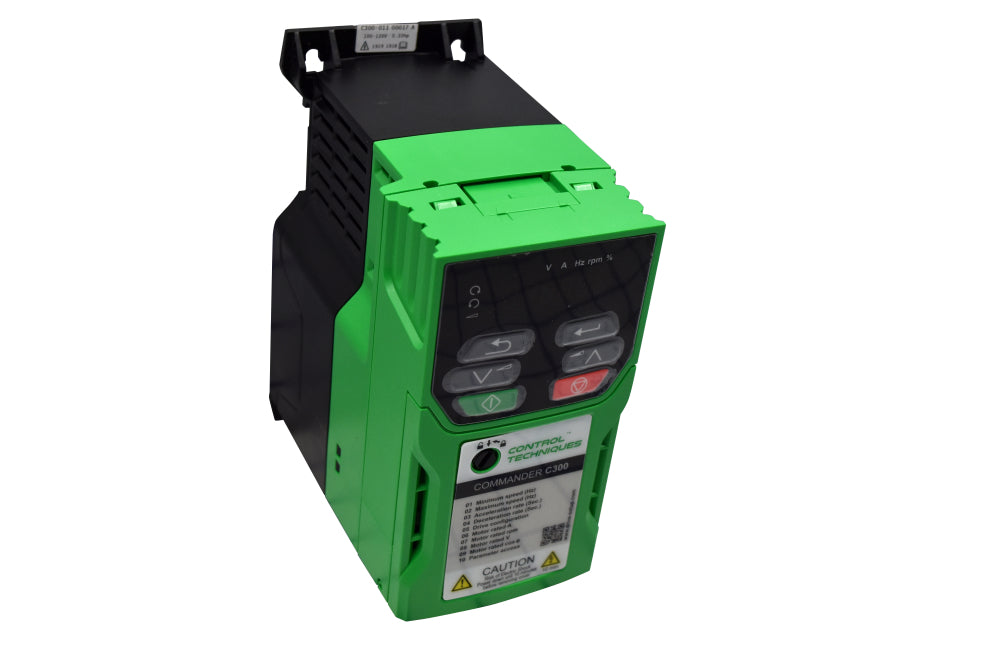

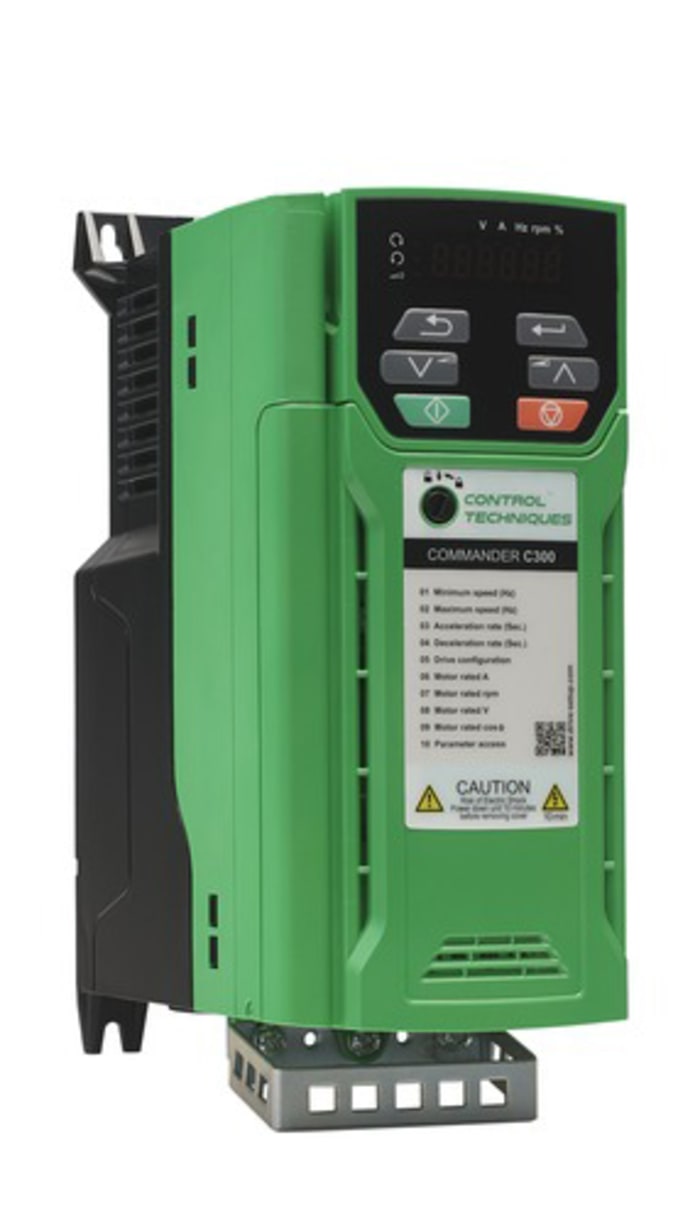

Control Techniques C300-03400056 Variable Speed Inverter Drive 2.2 kW

Product Description

The Control Techniques C300-03400056 is a variable speed inverter drive built for AC motor control. This drive accepts a three-phase input voltage from three hundred forty-two to five hundred twenty-eight volts AC and outputs a current of five point six amperes. Designed for panel mounting, it belongs to the Commander C300 series and features an enclosure rated IP20 and IP21.

• Power Rating: 2.2 kW
• Input Voltage: 342-528V AC
• Output Frequency: 0 to 550 Hz

Product Highlights

This drive is suitable for use with AC motors and includes options for various field bus communication types.

Product Information

Standard Information

• Manufacturer: Control Techniques
• Part Code: C300-03400056

Technical Specifications

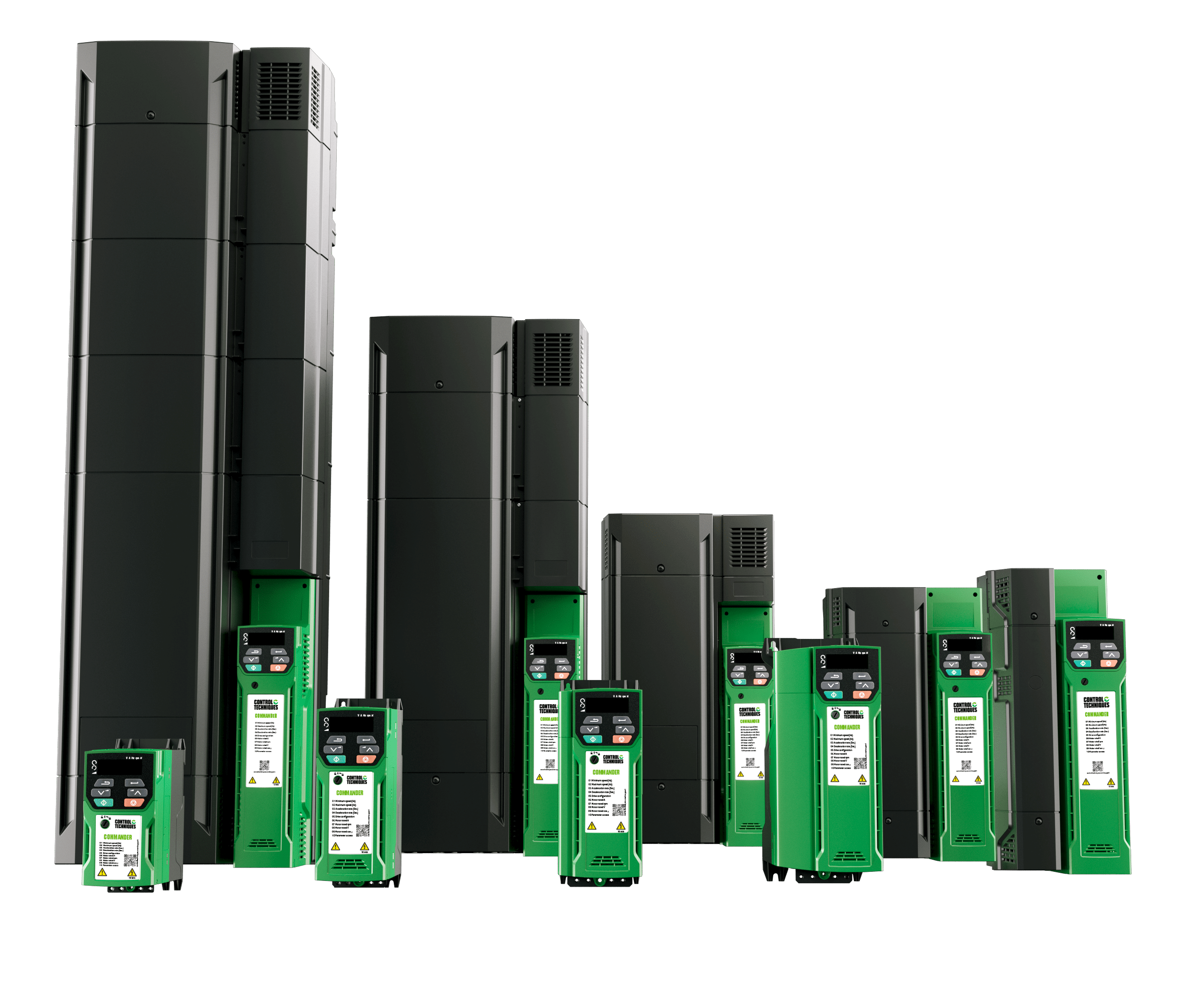

• Product Range: Commander C300
• Drive Series: Commander C300
• Phase: 3
• Current Rating: 5.6 A
• Enclosure: IP21
• Output Frequency: 0 to 550 Hz
• Mounting Type: Panel Mount
• Dimensions: 29 x 15 x 20 mm
• Overall Depth: 226 mm
• Overall Length: 90 mm
• Overall Width: 160 mm
• Weight: 664 g
