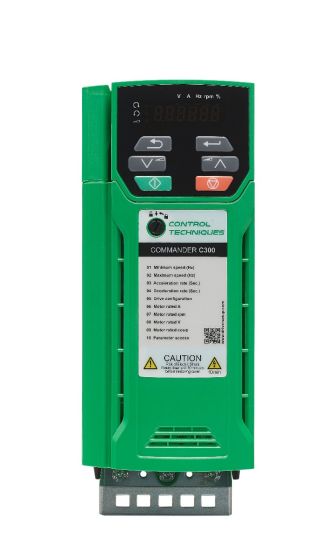

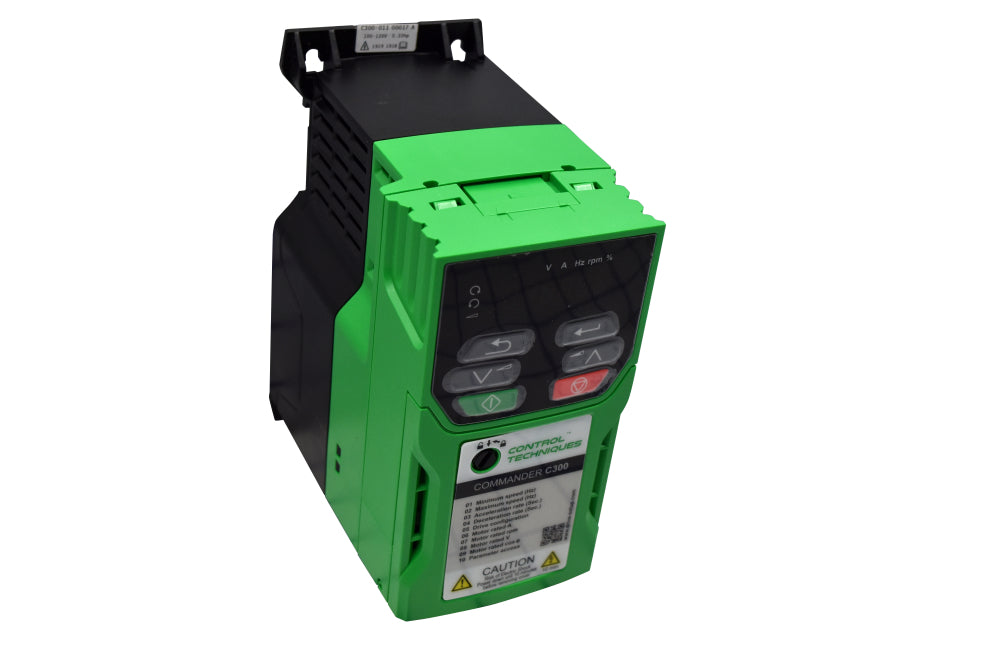

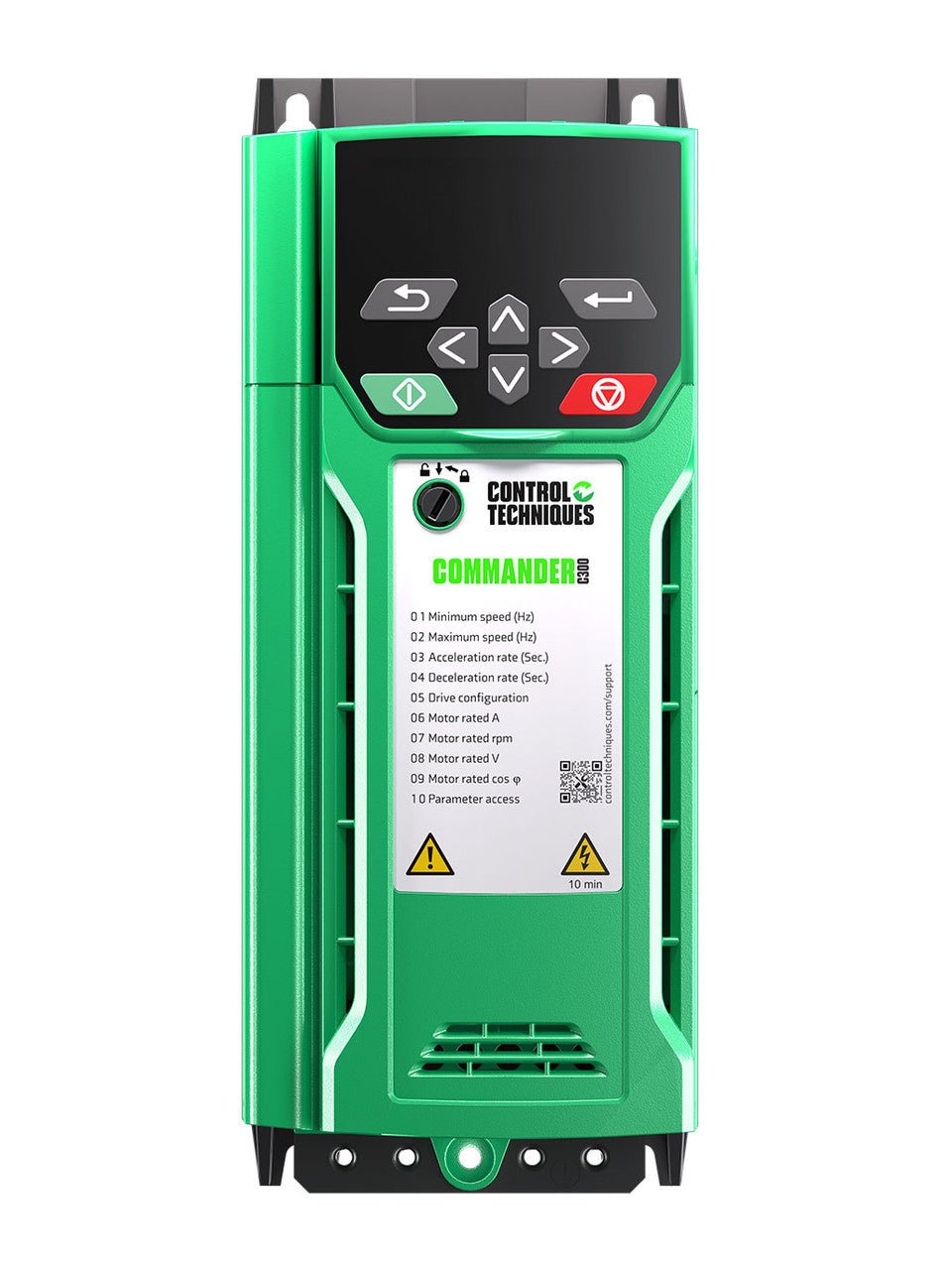

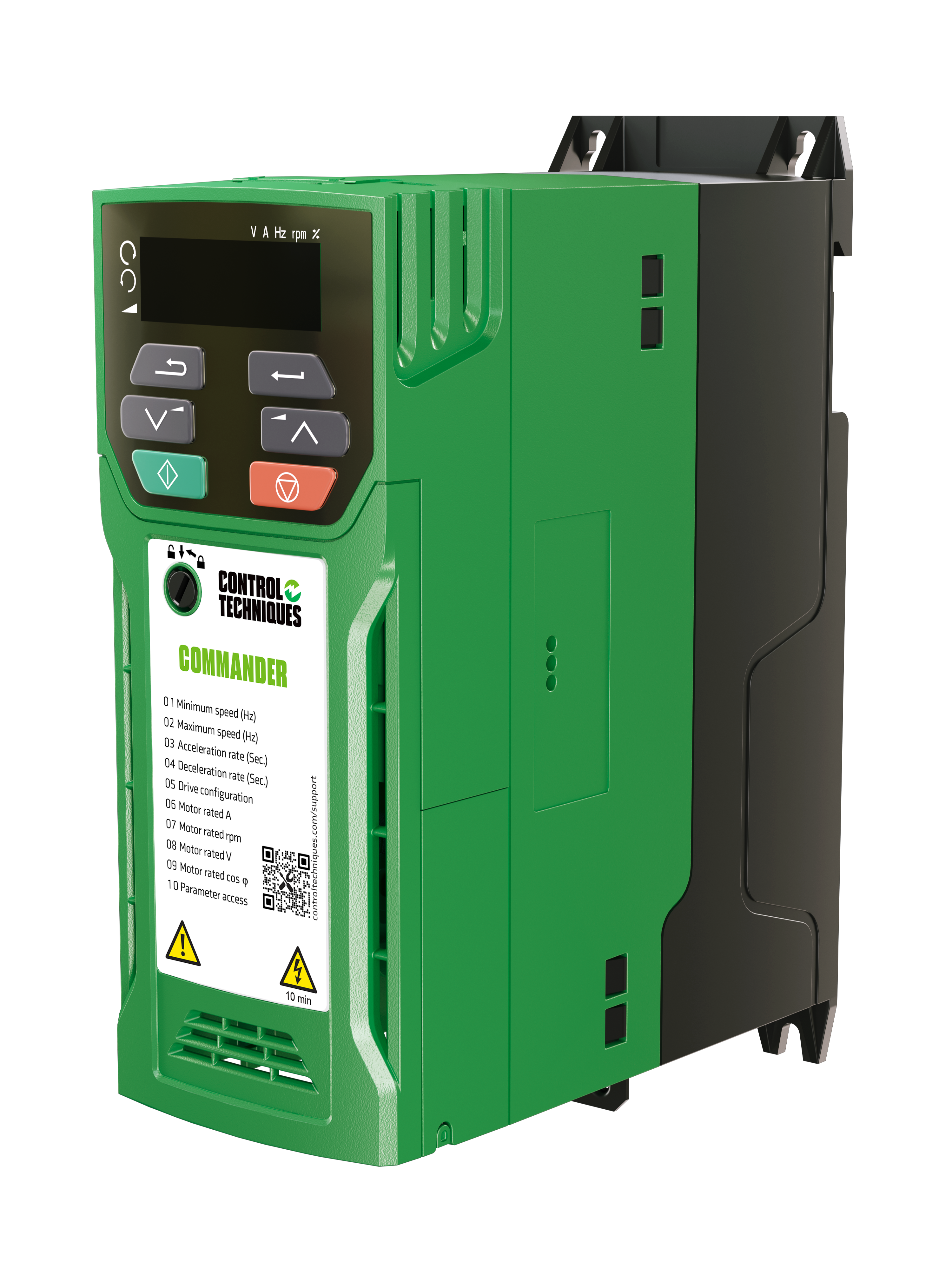

Control Techniques C300-03200100 Commander C300 3 HP 230V

Product Description

The Control Techniques C300-03200100 is an open-loop AC drive designed for versatile motor control. It supports single-phase and three-phase input of two hundred thirty volts and provides three-phase output. With a rating of three horsepower and ten amps, this drive is suitable for various applications including conveyors, fans, pumps, and mixers. The unit features dual safe torque off channels for safety and can be configured with plug-in options for advanced control.

• Rated for three horsepower and ten amps output.
• Accepts two hundred thirty volts single or three-phase input with corresponding three-phase output.
• Includes dual safe torque off functionality for enhanced safety.

Product Highlights

This drive is engineered for heavy-duty use with dynamic braking features and a variety of control types.

Product Information

Standard Information

• Brand: Control Techniques
• Model: C300-03200100

Technical Specifications

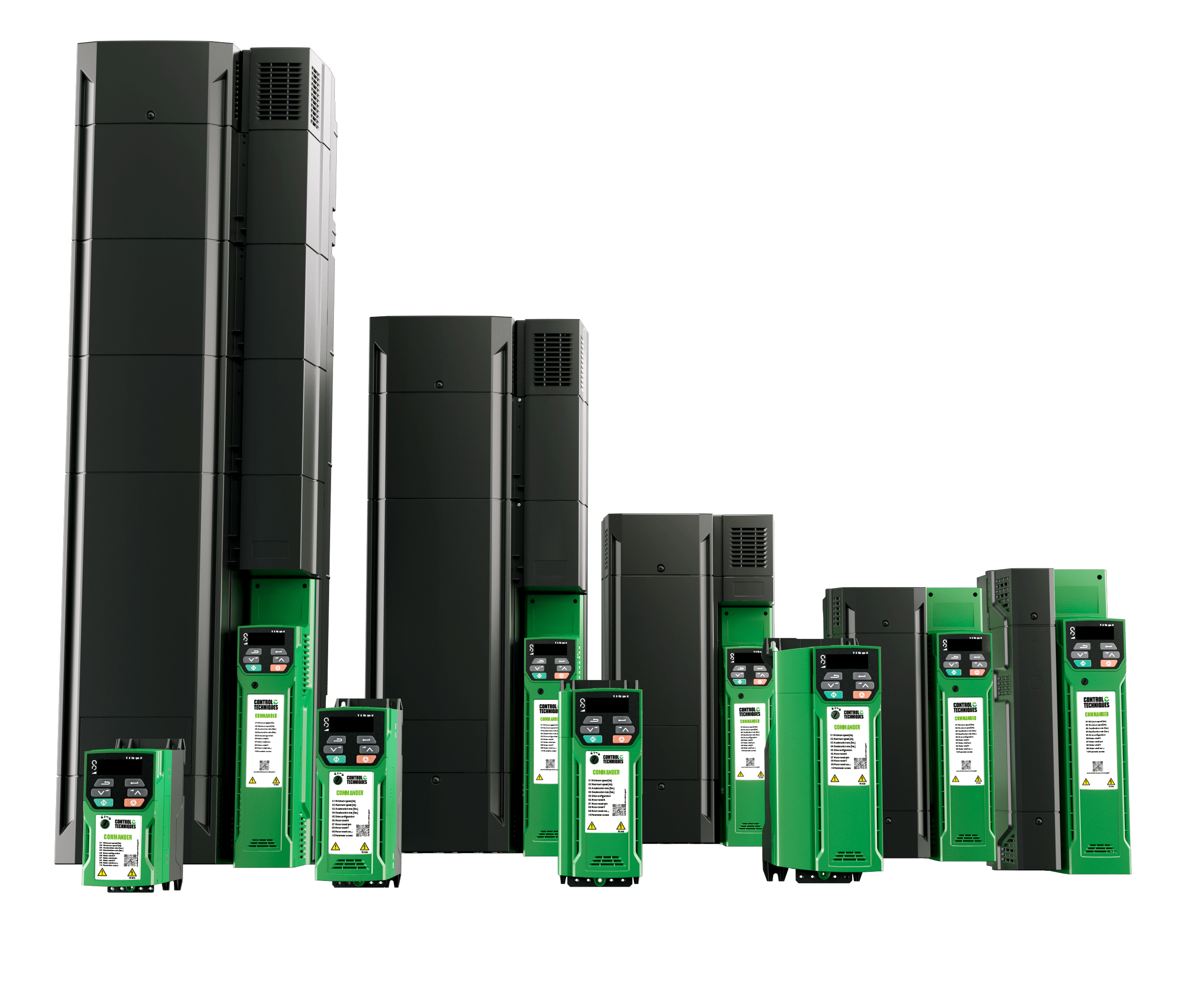

• Drive Series: Commander C300
• Horsepower Rating: 3 HP
• Power: 2.2 kW
• Input Voltage: 180-264V
• Rated Voltage: 230 V
• Output Voltage: 0 to input
• Rated Input Frequency: 60 Hz
• Input Phase: 1 or 3
• Output Phases: 3
• Rated Amps: 10 A
• Enclosure Rating: IP20
• Height: 7.09 inches
• Width: 3.43 inches
• Depth: 6.77 inches
• Weight: 4.50 lbs
• Overload: 150%
• Dynamic Braking: Yes
• Max Temperature: 40 deg C
• Digital Inputs: 4
• Approval: CE, UL
