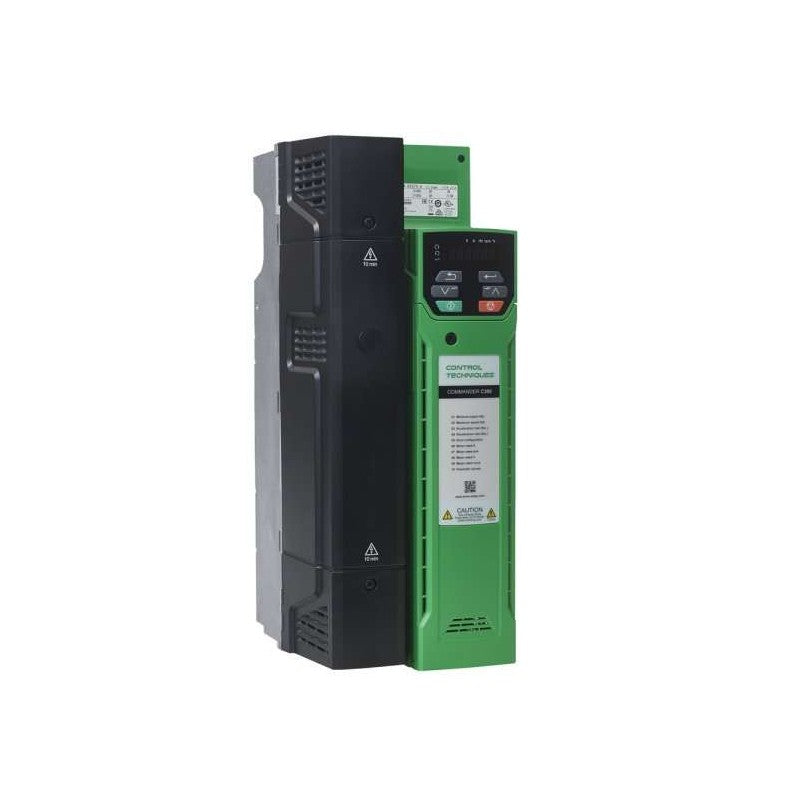

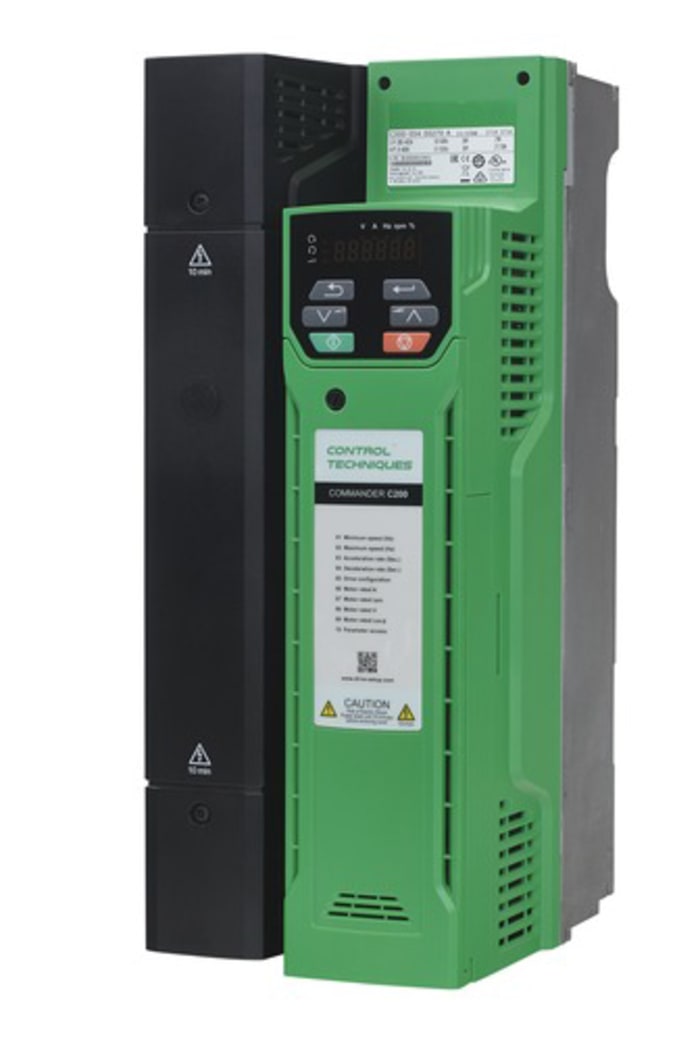

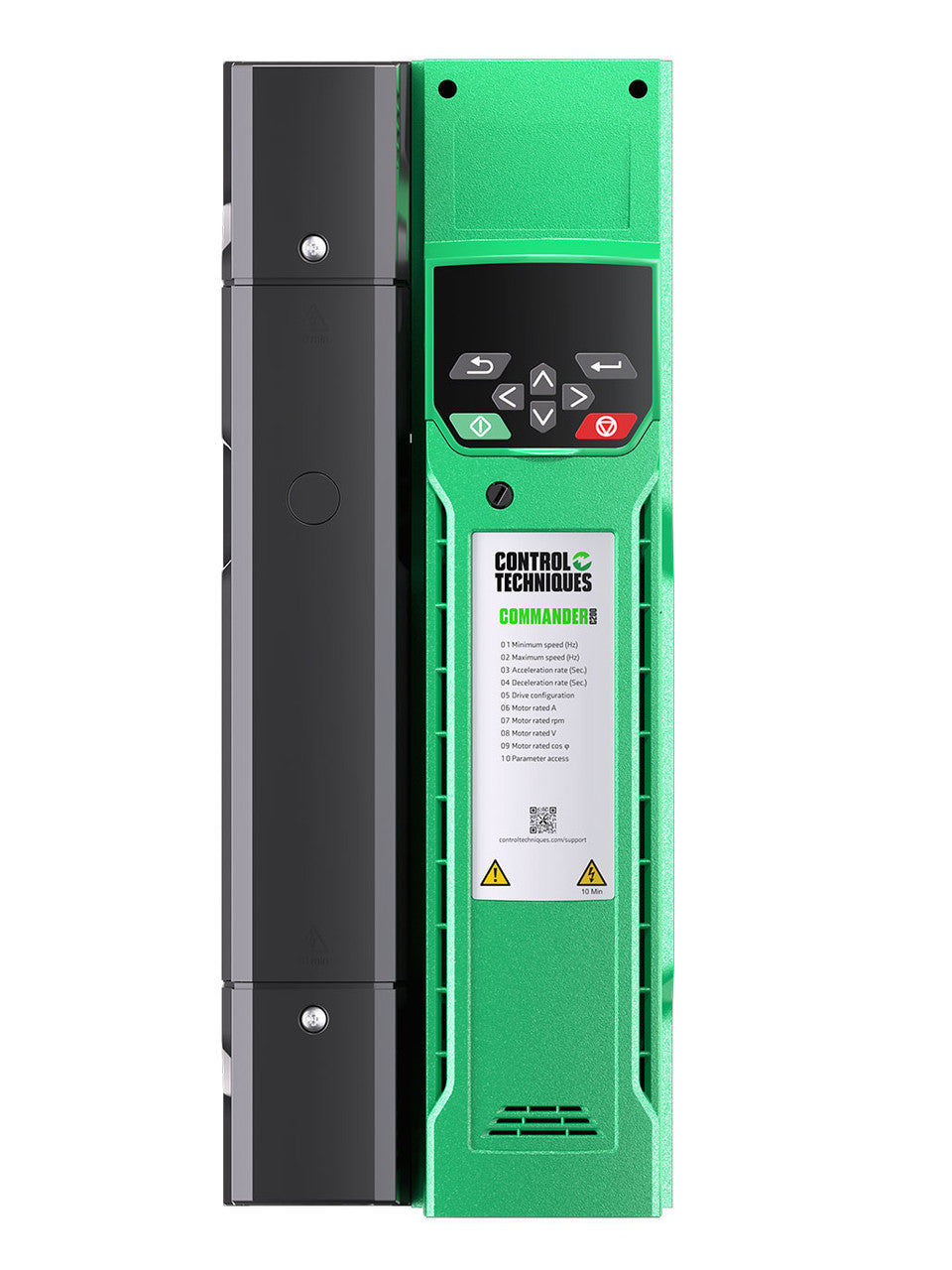

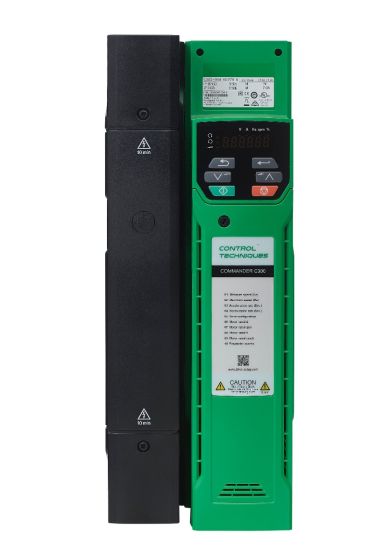

Control Techniques C200-05400270 Inverter Drive 11 kW 3-Phase 15 HP

Product Description

The Control Techniques C200-05400270 is an inverter drive tailored for AC motor control. It operates on a three-phase input voltage range of three hundred eighty to four hundred eighty volts AC and delivers a three-phase output with a current rating of twenty-seven amps. This model is designed to support various control methods, including V/f, open loop vector, and RFC-A. Perfect for automation processes, it ensures quick setup and installation, making it ideal for applications in conveyors, fans, pumps, and mixers.

• Input: 3-Phase 380-480V AC, Output: 3-Phase 27A
• IP20 protection rating
• Multiple control types supported: V/f, open loop vector, RFC-A

Product Highlights

This inverter drive provides reliable motor control with a solid performance across various applications and operating conditions.

Product Information

Standard Information

• Brand: Control Techniques
• MPN: C200-05400270

Technical Specifications

• Power Rating: 11 kW
• Power HP: 15
• Input Voltage: 380 to 480 V AC
• Output Voltage: 0 to input
• Input Phases: 3
• Output Phases: 3
• Output Current: 27A
• Input Current: 26A
• Enclosure Rating: IP20
• Dimensions: Width 143mm, Height 391mm, Depth 192mm
• Mounting Type: Panel Mount
• Control Type: V/f, Open loop vector & RFC-A
• Max Temperature: 40 °C
• Digital Inputs: 4
• Digital Outputs: 1
• Approval Standards: CE, UL
