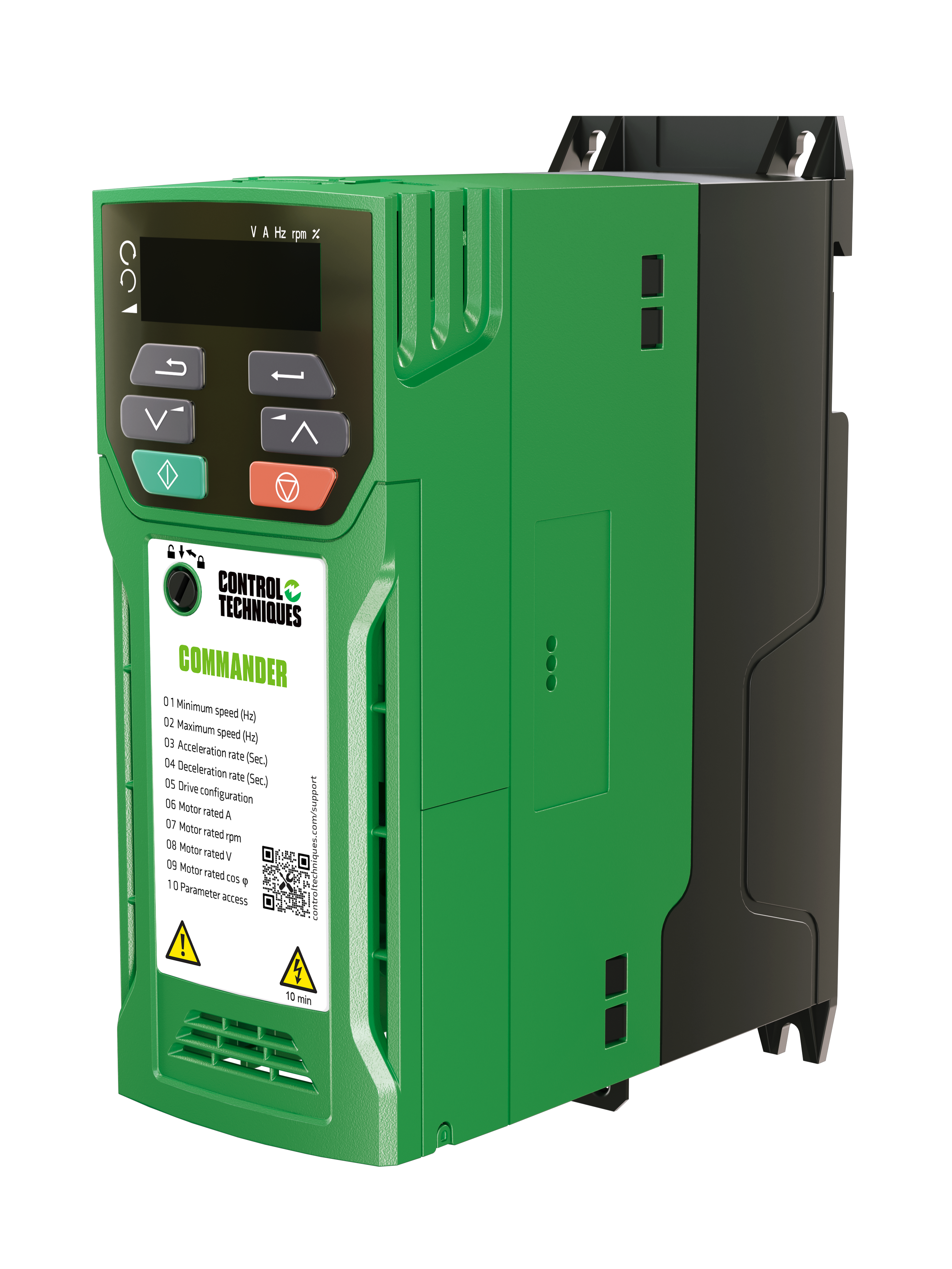

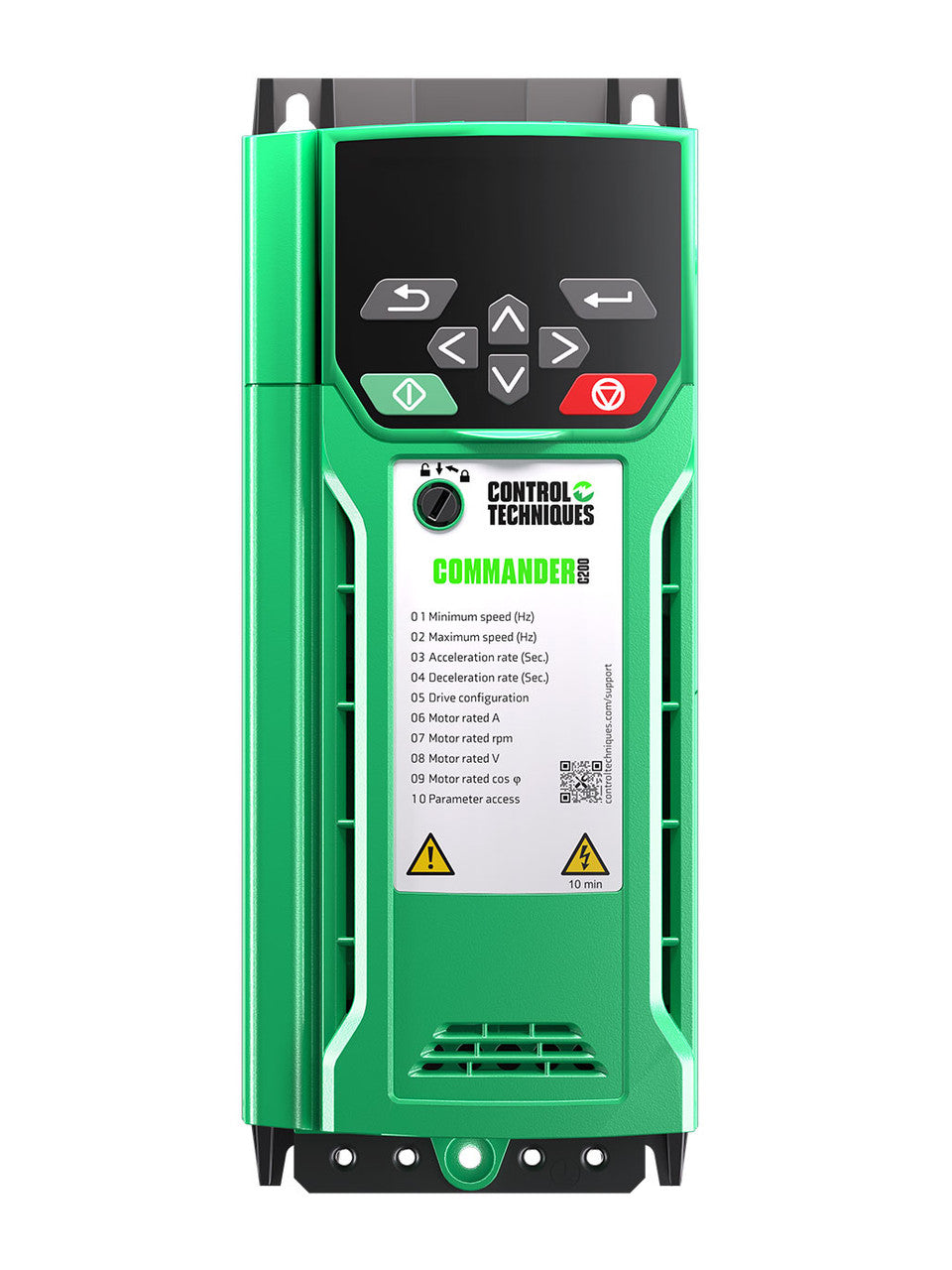

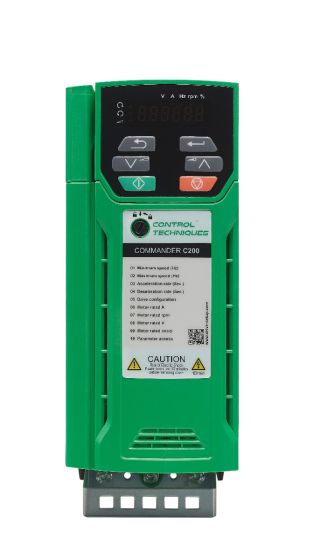

Control Techniques C200-03200100 Commander C200 Series Open-Loop Drive

Product Description

The Control Techniques C200-03200100 is an open-loop drive from the Commander C200 series. This drive accepts input from both single-phase and three-phase 230VAC sources and outputs three-phase 230VAC. It is suitable for motor control in applications up to 3HP. Features include an optional communications interface and a dynamic braking transistor that requires an external resistor for proper operation.

• Supports open-loop vector and V/Hz induction motor control.
• Compatible with both single and three-phase 230VAC input.
• Includes dynamic braking transistor for enhanced control.

Product Highlights

This drive is ideal for various motor control applications, allowing flexible input options and performance suitable for different load requirements.

Product Information

Standard Information

• Brand: Control Techniques
• Series: C200

Technical Specifications

• Input Voltage: 200 to 240 VAC ±10%
• Output Voltage: 230 V
• Input Frequency: 45 to 66 Hz
• Output Frequency Range: 0 to 550 Hz
• Horsepower Rating: 3 HP
• Rated Amps: 10 A
• Phase: Single-phase and three-phase
• Enclosure Rating: IP20
• Cooling Method: Forced convection
• Operating Temperature: -20°C to 40°C with operation up to 60°C
• Storage Temperature: -40°C to 60°C
• Dimensions: Height 6.85 in, Width 3.94 in, Depth 4.60 in
