Control Devices BVP10P10-0AA Ball Valve 1 Inch 600 Psi

Product Description

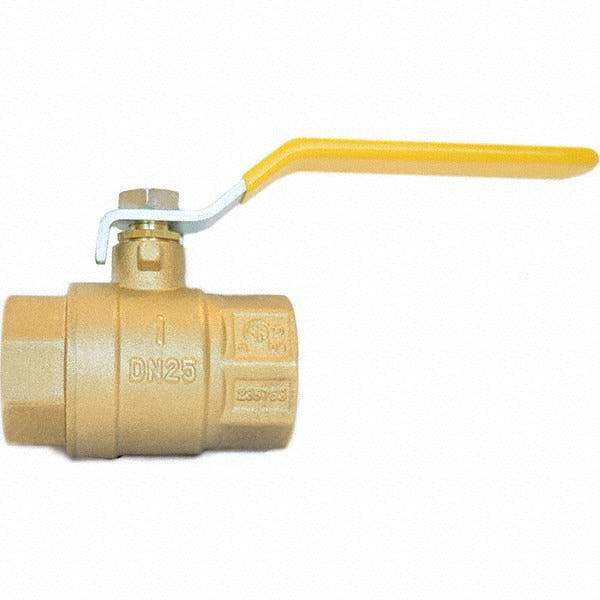

The CONTROL DEVICES BVP10P10-0AA is a 2-way manual ball valve designed for full-port flow control in plumbing, HVAC, and light industrial piping systems. Built with a brass body and a lever handle, it opens and closes a 1-inch pipe line with a quarter-turn motion. The full-port design means the internal bore matches the pipe diameter, minimizing pressure drop across the valve. A polytetrafluoroethylene (PTFE) seal provides chemical resistance and low-friction operation. Rated to 600 psi maximum working pressure, this valve suits a wide range of service pressures common in commercial and residential applications. Licensed plumbers and HVAC technicians are the primary installers.

This valve is suited for 1-inch pipe installations in residential and commercial plumbing systems, hydronic heating and cooling lines, water distribution, and general fluid control applications. The lever handle allows quick visual confirmation of open or closed position, which is useful in mechanical rooms and utility spaces where fast shutoff is required. Its lead-free brass construction meets CSA and UPC standards, making it appropriate for potable water service as well as non-potable fluid systems.

Key Features

• Full-port bore maintains pipe diameter for unrestricted flow and minimal pressure drop
• Brass body construction offers durability and corrosion resistance in wet environments
• PTFE seal material provides chemical resistance and long-term seat integrity
• Lever handle enables quarter-turn operation with clear open and closed indication
• Rated to 600 psi maximum working pressure
• Lead-free construction meets CSA and UPC standards for potable water applications

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for 1-inch pipe systems in residential and commercial plumbing and HVAC hydronic applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified HVAC technician in accordance with applicable local plumbing codes and IPC requirements. Shut off system pressure and drain the line before removing or installing any valve. Ensure pipe threads are clean and properly sealed with approved thread sealant or tape before making up connections. Do not exceed the rated working pressure of 600 psi in service.
