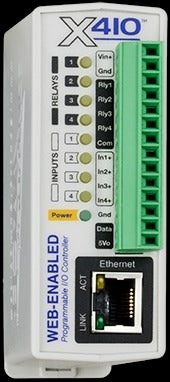

Control by Web x-410-e Web Relay Controller Poe

Product Description

The CONTROL BY WEB x-410-e is a network-connected web relay controller designed for remote monitoring and control applications. It integrates four digital inputs, four relay outputs, and support for up to 16 1-Wire sensors into a single compact unit with a built-in web server. The device operates on Power over Ethernet (PoE) and accepts 4 to 26 volts DC as an alternative power source. Licensed electricians and control system integrators typically install and commission this unit in industrial, commercial, and building-automation environments where distributed I/O and remote access are required.

The x-410-e is suited for applications where a field device must report status, trigger relay outputs, and log sensor data without a dedicated host PC. Typical installations include remote equipment monitoring, HVAC system control panels, pump station automation, and facility management nodes. The built-in web server allows access from standard browsers on any networked device, making it practical for both fixed and mobile monitoring setups. Its 1-Wire sensor support is commonly used to monitor temperature at multiple points across a system.

Key Features

• Four independently controlled relay outputs for switching loads or signaling external equipment
• Four digital inputs for monitoring dry-contact or logic-level signals from field devices
• Supports up to 16 1-Wire sensors for distributed temperature or environmental monitoring
• Built-in web server enables remote access and control from any networked device without additional software
• PoE-capable with 4 to 26 volts DC alternative power input for flexible deployment

Compatibility

Designed as an OEM-style network I/O module for integration into control systems requiring web-accessible relay switching and multi-point sensor monitoring over a standard Ethernet network.

Installation Notes

Installation should be performed by a qualified electrician or control systems integrator familiar with low-voltage network devices and applicable NEC requirements. Power down the controller and disconnect all field wiring before servicing relay terminals or sensor leads. Ensure the Ethernet switch or injector supplying PoE meets the power budget required by this device before connecting. Verify relay contact ratings against the load being switched before commissioning.

Technical Specifications

• Digital Inputs: 4
• Relay Outputs: 4
• 1-Wire Sensor Capacity: Up to 16
• Power Input: 4 to 26 volts DC or PoE
• Network Interface: Ethernet with built-in web server

Standard Information

• Brand: CONTROL BY WEB
• Manufacturer Part Number: x-410-e
