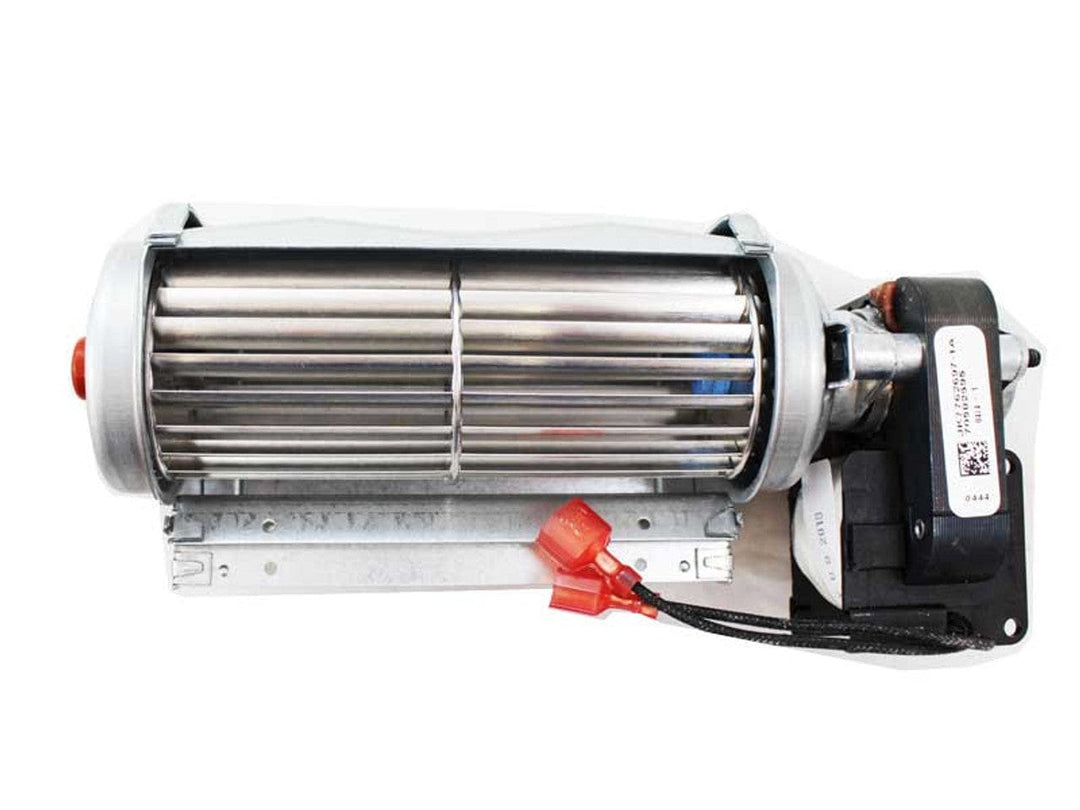

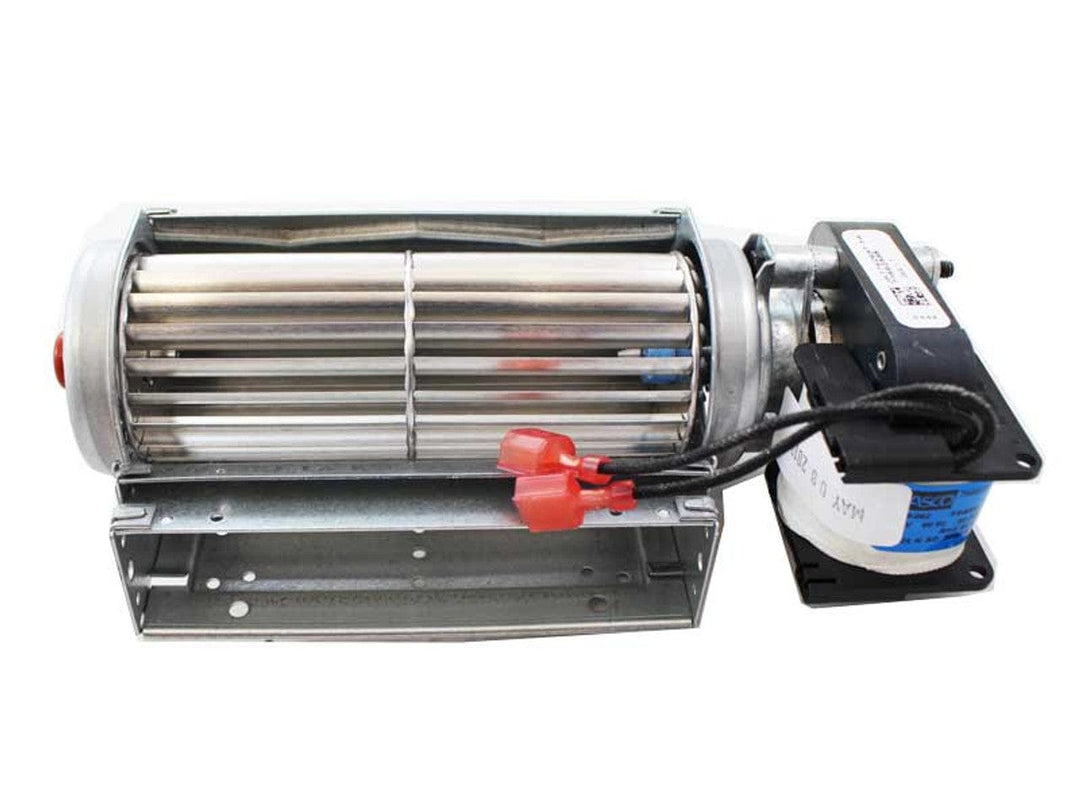

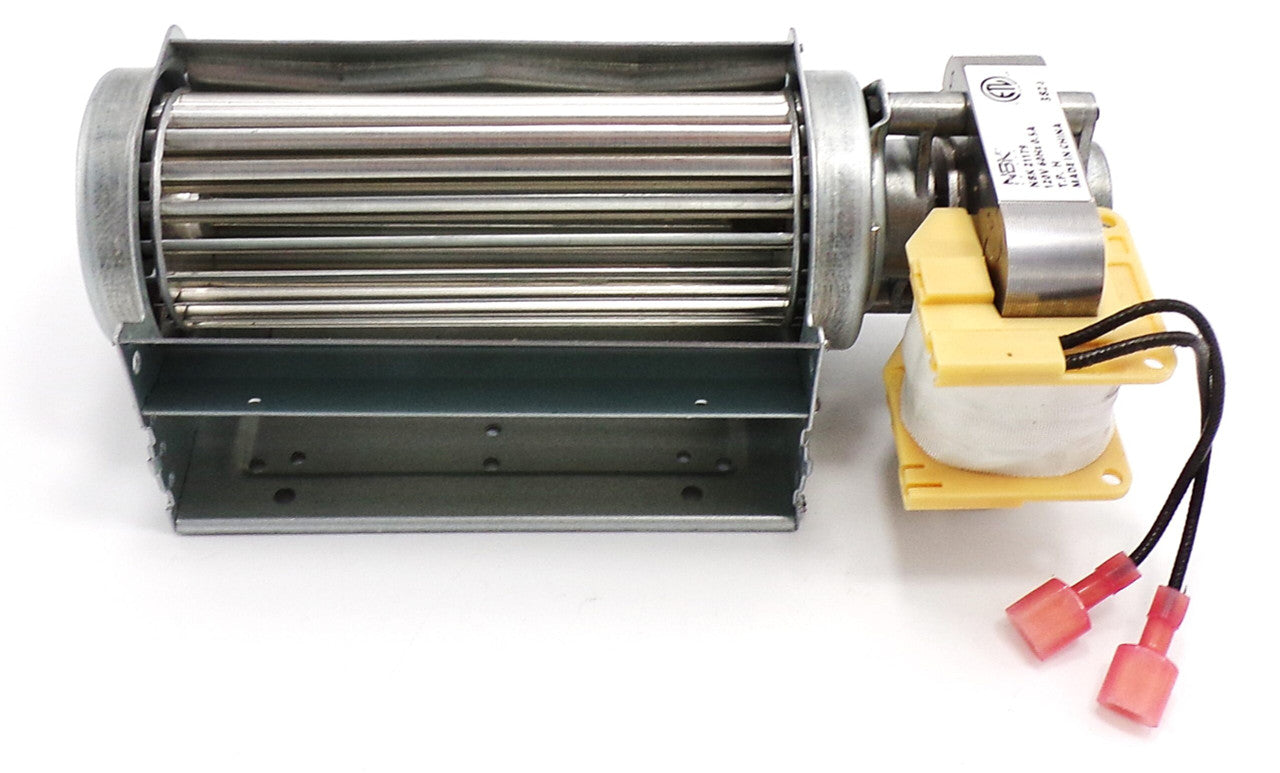

Continental W062-0059-SER Ascent Series Convection Blower

Product Description

The Continental W062-0059-SER is an aftermarket convection blower suitable for Ascent series fireplaces. This unit improves heat distribution, leading to better fireplace efficiency. Key features include a robust metal blade and an aluminum housing for durability. The blower uses ball and sleeve bearings with high-temperature lubrication for reliability. The motor is insulated to Class H standards and operates efficiently at three thousand RPM. It includes six wire whip leads with male spade terminals for easy connection.

• Features a shaded pole AC motor with clockwise rotation.
• Compatible with variable speed control.
• Designed for direct mounting to the OEM bracket assembly; brackets not included.

Product Highlights

This convection blower enhances fireplace comfort by improving airflow and heat circulation.

Product Information

Standard Information

• Type: AC Shaded Pole
• Origin: USA

Technical Specifications

• Rotation: CW
• Blade Type: Metal
• Housing Material: Aluminum
• Bearing Type: Ball
• Outboard Bearing Type: Sleeve
• Bearing Lubrication: High Temp
• Motor Insulation: Class H (rated to 392°F)
• Motor RPM: 3000
• Motor Connection: Male spade terminals, 6 wire whip leads
• Variable Speed Compatible: Yes
• CFM: 80
• Mounting Type: Direct to OEM bracket assembly (brackets not included)
• Input Voltage: 115
• Motor Frequency: 60 Hz
• Power Consumption: 47
• Amperage: 0.50
• Air Discharge: 5.0 x 2.0
• Dimensions: 7.75 x 3.25 x 2.875
• Weight: 12 lbs
