CONTINENTAL FAN BD150 6 Duct Spring Loaded Backdraft Damper

Product Description

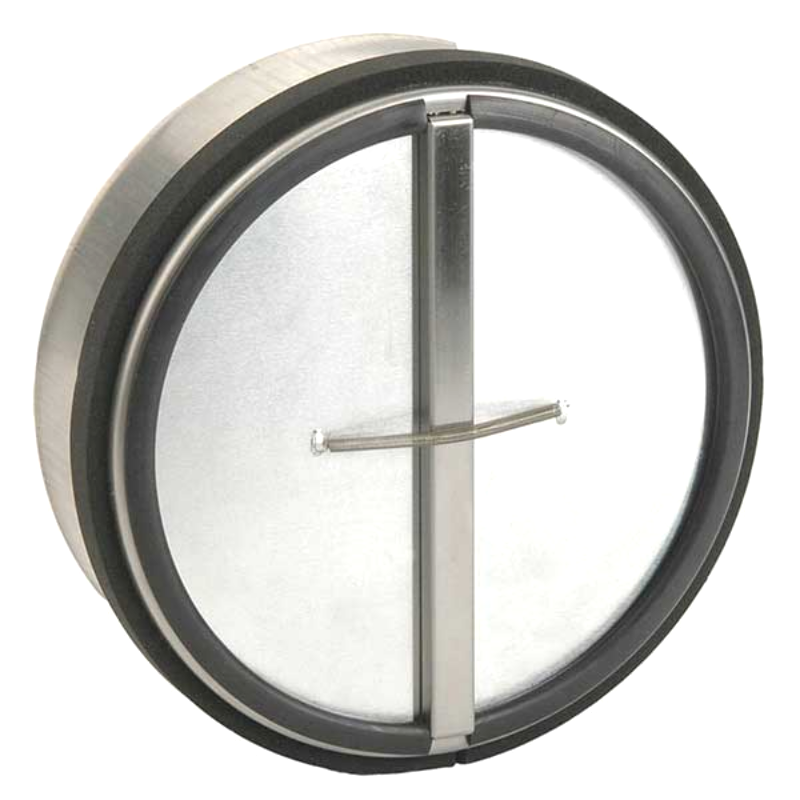

The Continental Fan BD150 is a six-inch duct backdraft damper. This unit is made with a twenty-gauge steel housing and features aluminum spring-loaded butterfly damper blades. Designed for straightforward installation, the BD150 can be inserted directly into the duct in any position. It includes an exterior foam gasket that ensures a secure fit against the duct. Additionally, a neoprene damper seal is included to reduce leakage.

• Constructed with a twenty-gauge steel housing.
• Features aluminum spring-loaded butterfly damper blades.
• Operates with an opening pressure of zero point zero four to zero point zero eight inches water gauge.

Product Highlights

This backdraft damper is designed for effective ventilation management, minimizing unwanted airflow in the duct system.

Product Information

Standard Information

• Model: BD150
• Damper Type: Spring Loaded

Technical Specifications

• Duct Size: Six inches
• Housing Material: Twenty gauge steel
• Damper Blade Material: Aluminum
• Damper Seal Material: Neoprene
• Gasket Temperature Resistance: Negative twenty-two to positive one hundred eighty degrees Fahrenheit
• Opening Pressure: Zero point zero four to zero point zero eight inches water gauge
• Installation: Inserts directly into duct
