Continental Fan BD125 BDD Series Backdraft Damper

Product Description

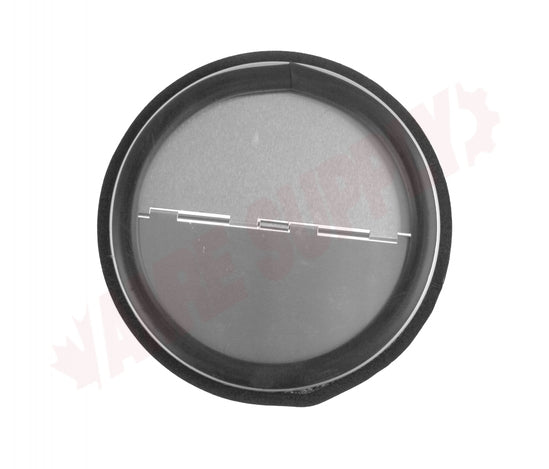

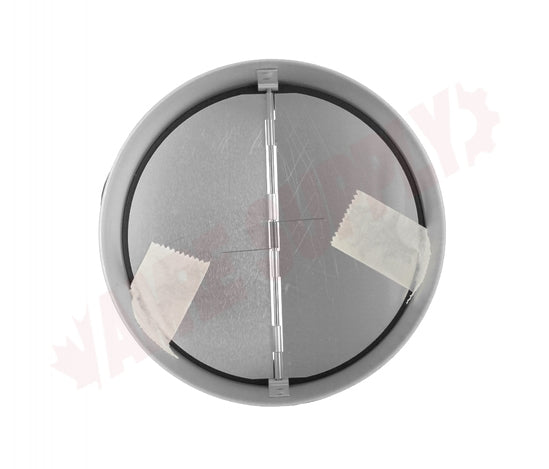

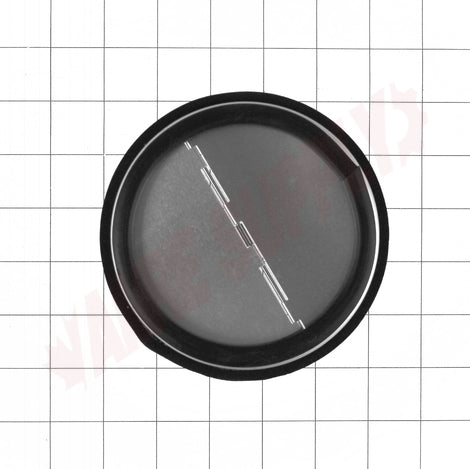

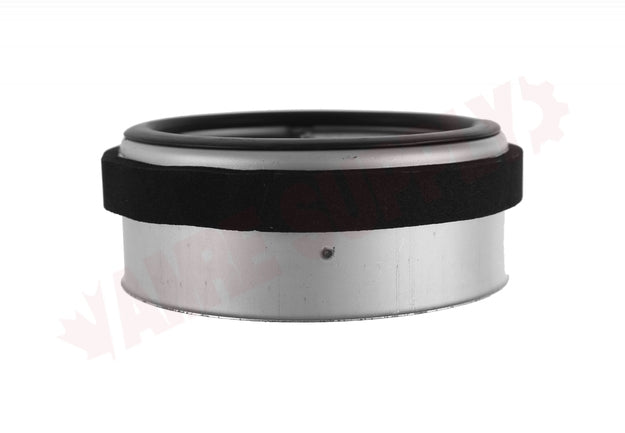

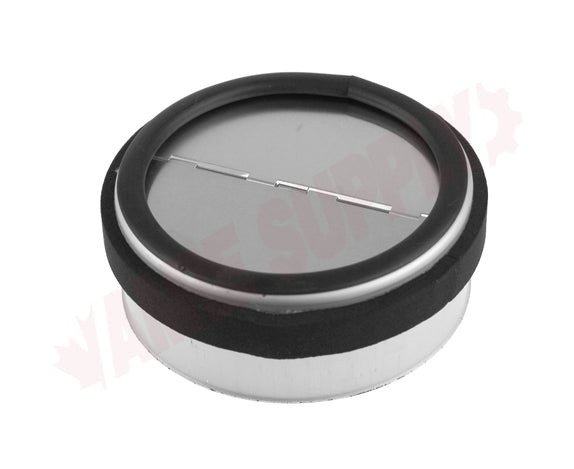

The Continental Fan BD125 is a backdraft damper suitable for five-inch ducts. This unit includes a twenty-gauge steel housing built to last. It features aluminum, spring-loaded butterfly damper blades that operate smoothly. The design allows for installation in any position within the duct system. An external foam gasket ensures a proper seal, while a neoprene damper seal further reduces leakage.

• Includes neoprene damper seal to reduce leakage
• Constructed with twenty-gauge steel housing and aluminum butterfly blades
• External foam gasket for an effective seal

Product Highlights

Product Information

Standard Information

• Brand: Continental Fan
• MPN: BD125

Technical Specifications

• Series: BDD
• Damper Type: Backdraft Damper
• Housing Material: 20 Gauge Steel
• Blade Material: Aluminum
• Damper Seal Material: Neoprene
• Minimum Opening Pressure: 0.04 in. wg
• Maximum Opening Pressure: 0.08 in. wg
• Minimum Gasket Temperature: -22 F
• Maximum Gasket Temperature: 180 F
