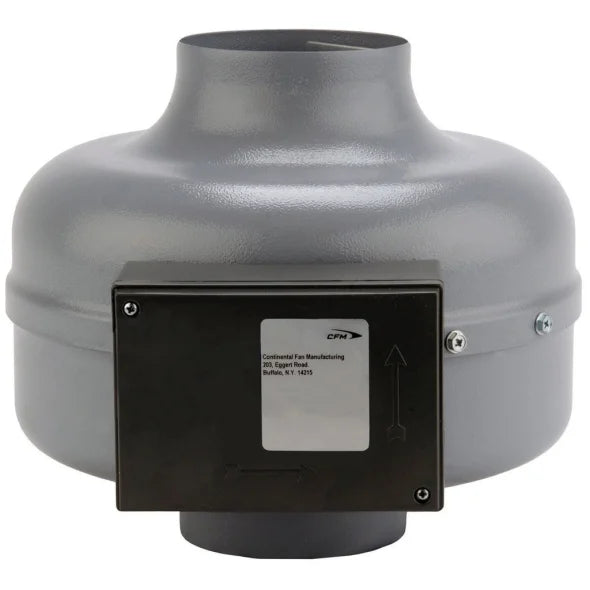

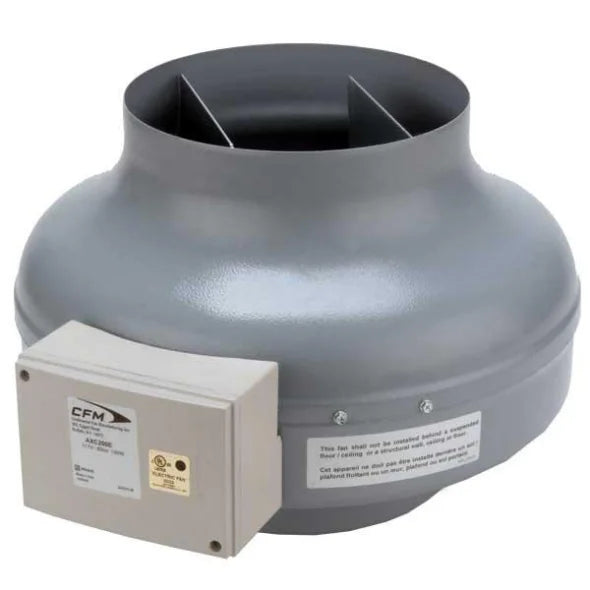

Continental Fan AXC150B-ES In-Line Duct Fan

Product Description

The Continental Fan AXC150B-ES is an in-line centrifugal duct fan designed for various ventilation applications in residential, commercial, and light industrial settings. The fan utilizes a backward-curved impeller, which enhances pressure generation while operating quietly. With its in-line configuration, installation becomes straightforward, making it a suitable choice for both supply and exhaust air requirements. The fan is capable of handling air temperatures reaching up to one hundred forty degrees Fahrenheit (sixty degrees Celsius). It is versatile in mounting and can be placed in any orientation. Speed control options are available through the use of an optional solid-state speed controller.

• Backward-curved centrifugal impeller for efficient airflow.
• Heavy-gauge steel housing with baked epoxy for durability.
• Ideal for six-inch duct installations.

Product Highlights

The AXC150B-ES provides reliable airflow for various ventilation needs while maintaining low noise levels.

Product Information

Standard Information

• Brand: Continental Fan
• MPN: AXC150B-ES

Technical Specifications

• CFM: 308
• Duct Size: 6 inches
• Amperage: 0.78 A
• Voltage: 120 V
• Wattage: 89 W
• Phase: 1 Phase
• Speed: Variable Speed
• Decibels: 39 @ 5 ft
• Operating Temperature: Up to 140 F / 60 C
• Width: 13.2 inches
• Height: 13.2 inches
• Length: 9.1 inches
• Weight: 11 lbs
• Motor HP: 1/10
• RPM: 245
• Hertz: 60 Hz
• Material: Steel
• Certifications: CSA & UL Listed
• Warranty: 5 years
