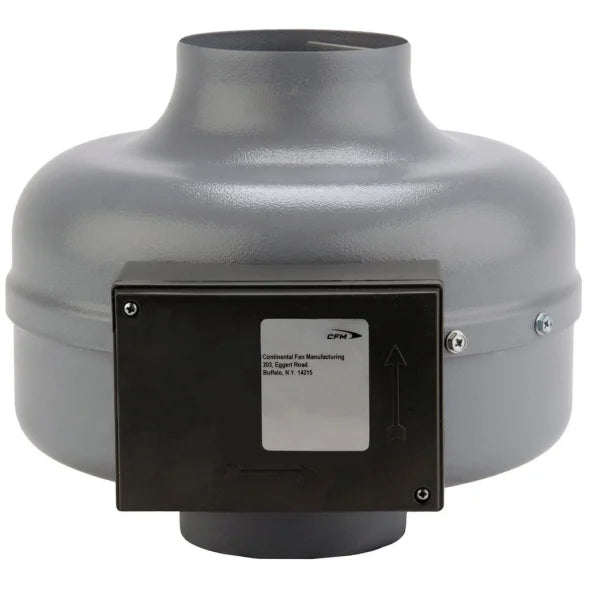

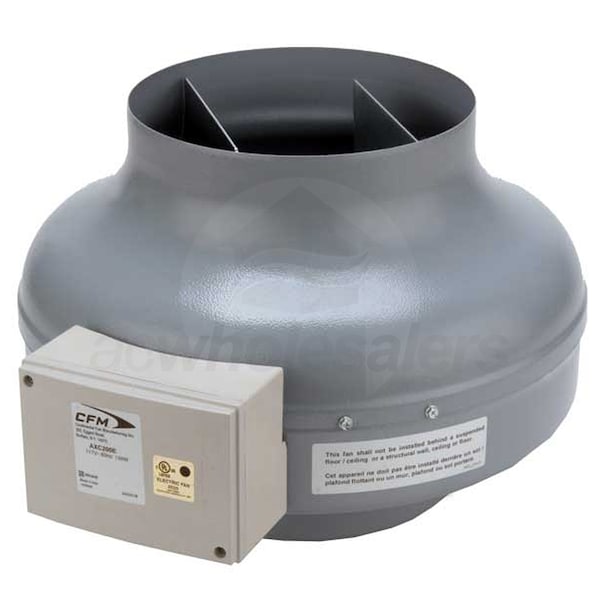

Continental Fan AXC125B In-Line Duct Fan

Product Description

The Continental Fan AXC125B is designed for in-line ventilation in residential and commercial settings. This duct fan uses a backward-curved centrifugal impeller to effectively increase airflow in duct systems. Its configuration simplifies installation and allows it to be mounted in any orientation. The steel housing features a baked epoxy finish that ensures durability and a long service life. This fan operates efficiently in environments with air temperatures reaching up to one hundred forty degrees Fahrenheit.

• Backward-curved centrifugal impeller
• Steel housing with baked epoxy finish
• Suitable for air temperatures up to one hundred forty degrees Fahrenheit

Product Highlights

This fan is ideal for boosting airflow through long duct runs and complex ventilation setups.

Product Information

Standard Information

• Brand: Continental Fan
• MPN: AXC125B

Technical Specifications

• Duct Size: 5 in
• Inlet/Outlet Diameter: 4-13/16 in
• Maximum Air Flow: 183 CFM
• CFM: 183 CFM
• Speed: Variable Speed
• RPM: 2350 rpm
• Horsepower: 0.1
• Input Voltage: 120 V
• Input Current: 0.70 A
• Power Consumption: 85 W
• Material: Steel
• Dimensions: 12 x 10 x 10 in
• Weight: 7.5 lbs
• Decibels: 35 @ 5 ft
• Indoor/Outdoor: Indoor
• Certifications: CSA, UL Listed
• Warranty: 5 yr
