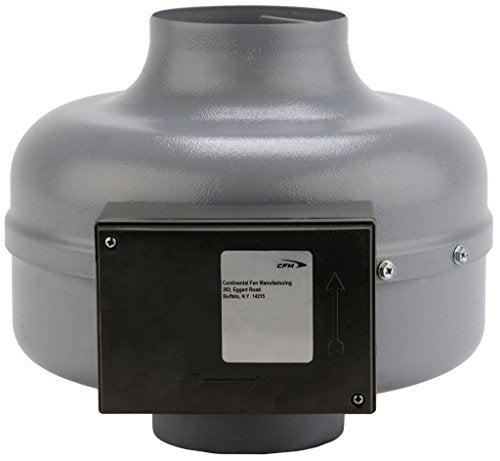

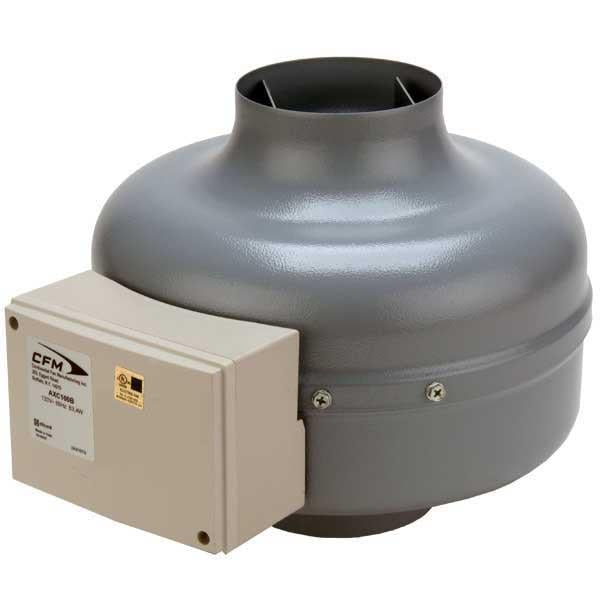

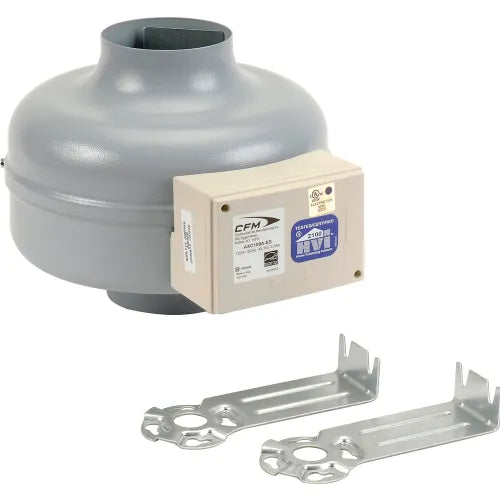

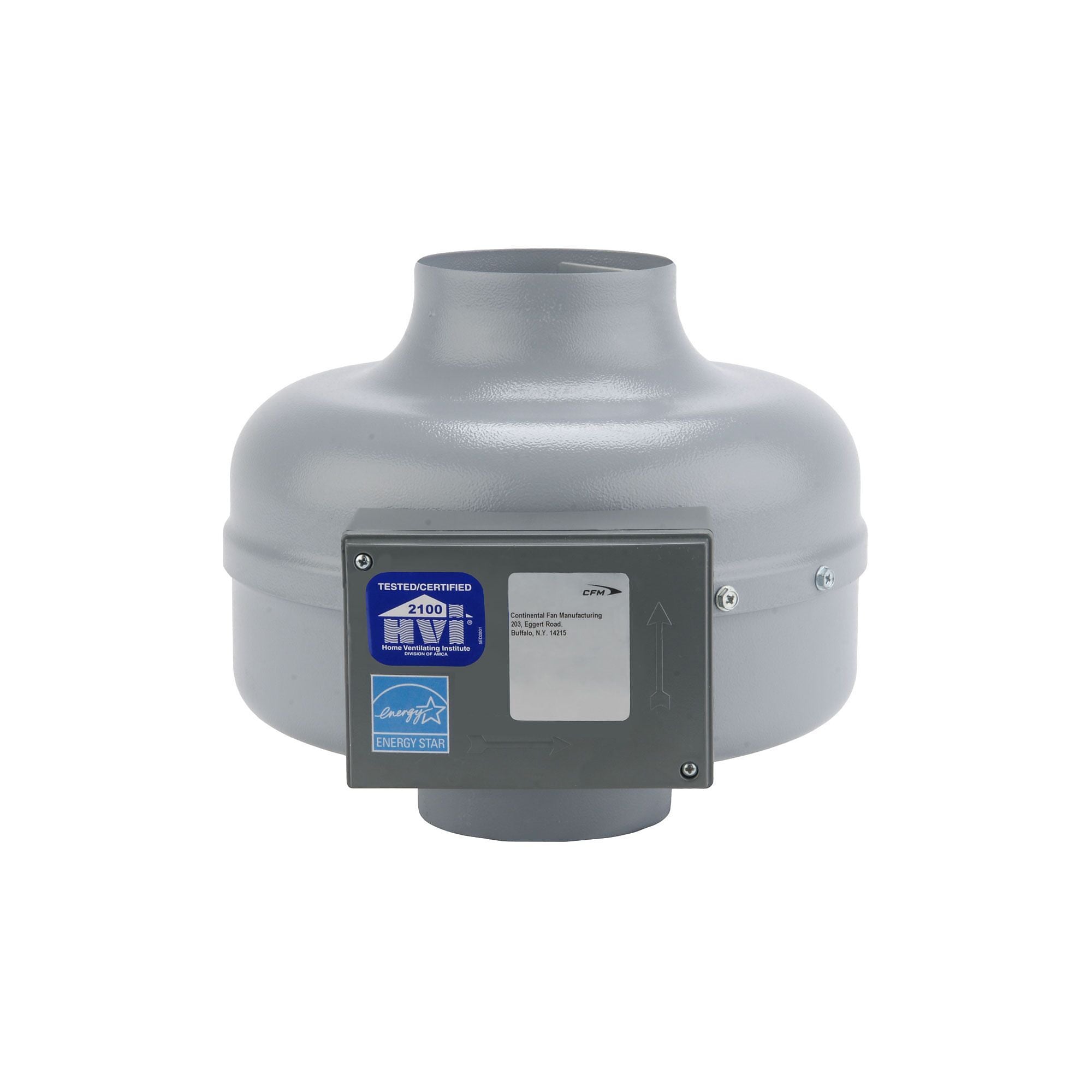

Continental Fan AXC100A-ES AXC In-Line Duct Fan 120V 147 CFM 3.9 inches Duct

Product Description

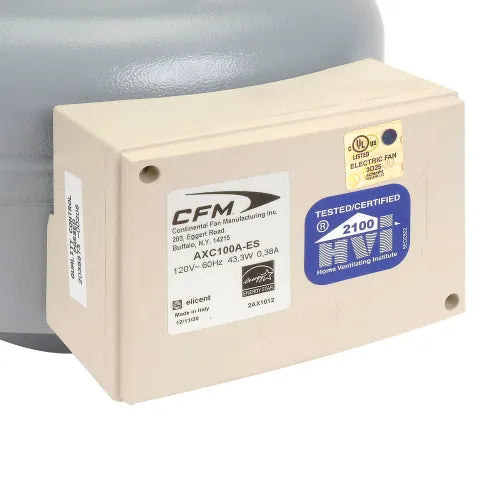

The Continental Fan AXC100A-ES AXC In-Line Duct Fan is designed for residential, commercial, and light industrial ventilation applications. The quiet, efficient backward-curved motorized impeller develops significant pressure, and the in-line configuration simplifies installation. It features a heavy gauge, drawn steel housing with baked epoxy finish and an easily accessible external junction box with a pre-wired capacitor.

• Designed for residential, commercial, and light industrial ventilation applications.
• Features a heavy-gauge, drawn steel housing with baked epoxy finish.
• May be speed controlled with an independent speed controller.

Product Highlights

This in-line duct fan is designed to boost airflow through long or complex duct runs and provide ideal solutions for areas that are hard to heat or cool.

Product Information

Standard Information

• Brand: CONTINENTAL FAN
• Manufacturer Part Number: AXC100A-ES
• Country of Origin: ITA

Technical Specifications

• Air Flow (CFM): 147
• Duct Connection (Inches): 3.9
• Phase: 1
• Voltage: 120 Volts
• Product Width: 9.5 Inches
• Type: Fan
• Product Height: 8.29 Inches
• Frequency: 60 Hz
• Product Line: AXC
• Amps: 0.36
• Bearing Type: Ball
• Cycle/Hertz: 60 Hz
• Dual Speed: No
• Single Speed: Yes
• Sones: 1.5
• UL Recognized: No
• Watts: 43.3 W
• Brand: Continental Fan
• Motor Power: 55 W
• Max Speed: 2580 rpm
• Current: 0.6 A
• IP Rating: 44
• Insulation Class: B
• Impeller Material: Plastic
• Housing Material: Steel
• Maximum Airflow Rate: 147 cfm
• Warranty: 5 yr
• Wattage: 44 W
• Amperage: 0.38 A
• Decibels: 33.9 @ 5 ft
• Material: Steel
• Amps Range: 0-1 A
• Motor Type: Totally Enclosed
• Voltage Range: 115-120 V
• Indoor/Outdoor: Indoor
• RPM High Range: 1000-2000 rpm
• Duct Size: 4 in
• Inlet/Outlet Diameter: 3.94 in
• Manufacturers Part Number: AXC100A-ES
• Certifications: CSA, UL Listed
• Blade Diameter: 4"
• Drive Type: Direct
• Horsepower: 0.1
• Speed: Variable Speed
