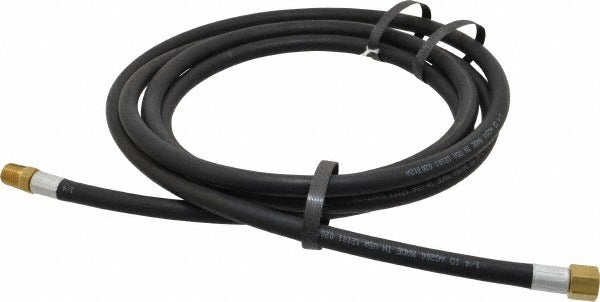

Continental Contitech HZB02520-10-31 Air Hose 1/4 in

Product Description

The CONTINENTAL CONTITECH HZB02520-10-31 is a multipurpose air hose built for general-purpose pneumatic service in trade and light industrial applications. It features a 1/4 inch inside diameter and 1/2 inch outside diameter with a 10-foot length, delivering a 200 psi working pressure rating. The hose is constructed from EPDM (Ethylene Propylene Diene Monomer), a synthetic rubber compound that resists ozone, weather, and a wide temperature range. End connections are MNPT x FNPT Swivel, allowing quick and secure attachment to standard air fittings. It weighs 2.08 pounds and ships as a single unit.

This hose is suited for residential and commercial job-site use where a compact, flexible air supply line is needed. Typical applications include pneumatic tool supply, blow-off service, and general compressed air delivery in HVAC, plumbing, and mechanical contracting work. The swivel FNPT end simplifies connection without line twist, making it practical for tight service locations or frequent connect-disconnect cycles. The 10-foot length is a common choice for short-run tool drops and service truck use.

Key Features

• 200 psi working pressure rated for compressed air service
• EPDM construction provides resistance to ozone, weathering, and temperature extremes
• Operating temperature range from -40 degrees F to 190 degrees F
• MNPT x FNPT Swivel end connections in 1/4 inch fitting size for tool-free line alignment
• 1/4 inch ID and 1/2 inch OD with 10-foot length for short-run pneumatic drops
• Black outer jacket for UV and abrasion resistance in field conditions

Compatibility

Designed as an OEM-style replacement or service hose for standard 1/4 inch NPT pneumatic systems requiring a 200 psi rated, EPDM multipurpose air hose with MNPT x FNPT Swivel end connections.

Installation Notes

Installation is typically performed by HVAC technicians, plumbers, pipefitters, or mechanical contractors working with compressed air systems. Depressurize and lock out the air supply before disconnecting or replacing any hose assembly. Inspect all NPT threads and fittings for damage before making connections, and use appropriate thread sealant compatible with compressed air service. Do not exceed the rated working pressure of 200 psi.
