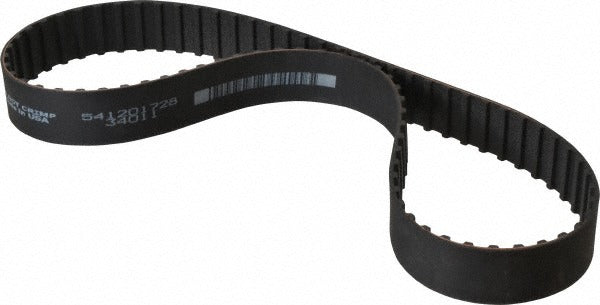

Continental Contitech 20043165 Timing Belt 300L 80 Teeth

Product Description

The CONTINENTAL CONTITECH 20043165 is a Section L timing belt engineered for positive-drive power transmission applications. It features 80 trapezoidal teeth, a pitch length of 300.00 mm, and a 1.0 inch belt width. The belt body is constructed from nylon with a fiberglass tension cord, providing dimensional stability and resistance to stretch under cyclic load. Belt number 300L identifies it within the L Series positive-drive family, making cross-referencing and replacement sourcing straightforward for maintenance technicians and OEM assemblers alike.

This timing belt is suited for mechanical drive systems requiring precise synchronization between shafts, such as those found in HVAC equipment, light industrial machinery, and commercial equipment drives. The L Series trapezoidal tooth profile is a widely used standard in synchronous belt drive design. It is typically installed by mechanical technicians, HVAC service technicians, or equipment maintenance personnel working on belt-driven blower assemblies, pump drives, or similar rotating equipment.

Key Features

• Section L trapezoidal tooth profile for positive synchronous drive
• 80 teeth with a 300.00 mm pitch length for precise shaft synchronization
• 1.0 inch belt width for standard L Series drive systems
• Nylon belt material for durability under continuous cyclic loading
• Fiberglass cord construction minimizes stretch and maintains belt tension
• 30.0 inch internal length, conforming to L Series belt standards

Compatibility

Designed as an OEM-style replacement for L Series positive-drive belt applications requiring a 300L belt with 80 teeth and 1.0 inch width.

Installation Notes

Installation should be performed by a qualified technician with the drive system fully de-energized and locked out per applicable safety procedures. Do not force the belt onto sheaves or sprockets using tools that could damage the tooth profile or cord structure. Verify sprocket alignment and center distance before tensioning, and confirm the replacement belt number matches the original drive specification.
