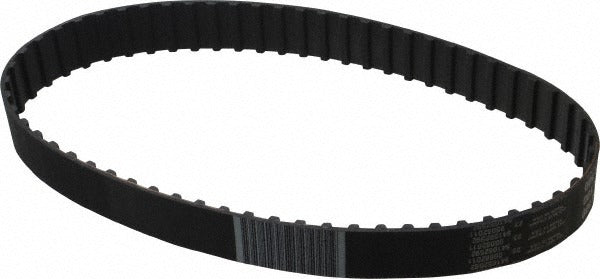

Continental Contitech 20043160 Timing Belt 225L 60T

Product Description

The CONTINENTAL CONTITECH 20043160 is an L-series positive-drive timing belt designed for synchronous power transmission in light industrial, HVAC, and mechanical equipment applications. Built with a nylon construction and fiberglass cord reinforcement, this belt delivers consistent tooth engagement with minimal stretch over the service life. The trapezoidal tooth profile mates with standard L-pitch sprockets and pulleys. At 22.5 inches internal length, 1 inch wide, and 60 teeth, it suits a range of driven-shaft assemblies where precise timing and slip-free operation are required. Licensed HVAC and mechanical technicians commonly install this belt during scheduled maintenance or component replacement.

This belt fits synchronous drive systems that use the L series pitch standard. Typical applications include blower assemblies, fan drives, pump drives, and light-duty conveyor systems found in residential and commercial HVAC equipment as well as general industrial machinery. The 225L designation identifies this belt within the L-series family, making cross-referencing to OEM specifications straightforward. It is sold as a single belt per package unit.

Key Features

• L-series trapezoidal tooth profile for positive synchronous drive
• 60-tooth count with 225 mm pitch length for precise indexing
• Nylon belt material for durability and wear resistance
• Fiberglass cord construction minimizes stretch under load
• 1-inch belt width fits standard L-pitch sprocket systems
• Belt number 225L enables direct OEM and aftermarket cross-reference

Compatibility

Designed as an OEM-style replacement for synchronous drive systems using L-series timing belts with a 225L designation. Verify sprocket pitch and width match before installation.

Installation Notes

Installation should be performed by a qualified technician familiar with synchronous belt drive systems. Disconnect and lock out all power to the equipment before removing the existing belt or accessing the drive assembly. Do not force the belt over sprocket flanges; relieve tension by adjusting the center distance before seating the belt. After installation, confirm proper tension and alignment per the equipment manufacturer specifications before returning the unit to service.
