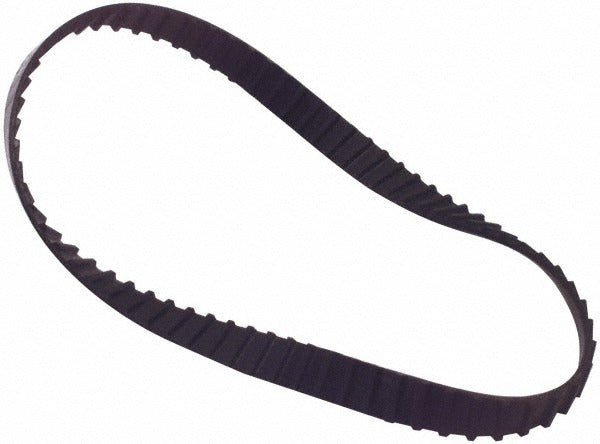

Continental Contitech 20043155 Timing Belt 150L 40T

Product Description

The CONTINENTAL CONTITECH 20043155 is an L-section timing belt designed for positive-drive power transmission applications. It features 40 trapezoidal teeth, a 1.0 inch belt width, and a 150L belt number designation corresponding to a 15.0 inch internal length and a 150.00 mm pitch length. The belt body is constructed from nylon with a fiberglass tensile cord for dimensional stability and resistance to elongation under load. This belt is installed by mechanical technicians and maintenance professionals in equipment requiring precise, slip-free drive synchronization.

L-series positive-drive timing belts are used across a wide range of industrial and commercial machinery, including conveyor drives, pumps, compressors, and other equipment where synchronization between shafts is required. The 150L designation is a standard size within the L-series belt family, making it a common replacement in both OEM assemblies and field service situations. It is suitable for light-to-medium duty drive systems where accurate timing and low backlash are priorities.

Key Features

• L-section trapezoidal tooth profile for positive, slip-free drive engagement
• 40 teeth with 150.00 mm pitch length and 15.0 inch internal length
• 1.0 inch belt width in the standard 150L size designation
• Nylon belt construction for durability and wear resistance
• Fiberglass tensile cord for low stretch and dimensional stability under load

Compatibility

Designed as an OEM-style replacement for L-series positive-drive timing belt applications requiring a 150L belt with 40 teeth and a 1.0 inch width.

Installation Notes

Installation should be performed by qualified mechanical or maintenance technicians. De-energize and lock out the drive system completely before removing or installing the belt. Do not pry the belt onto pulleys or force it over flanges, as this can damage the cord structure. Verify correct pulley alignment and belt tension per the equipment manufacturer specifications before returning the system to service.
