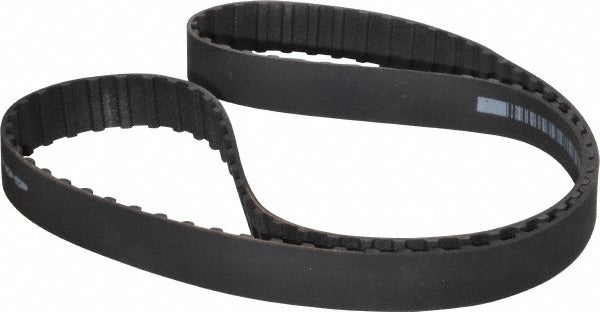

Continental Contitech 20043144 L Section Timing Belt 104T

Product Description

The CONTINENTAL CONTITECH 20043144 is an L-series positive-drive timing belt designed for synchronous power transmission in light industrial, HVAC, and mechanical drive applications. Constructed from nylon with a fiberglass tension cord, this belt delivers consistent pitch accuracy and resistance to elongation under load. It carries 104 trapezoidal teeth on a 39.0-inch internal length, conforming to the standard L-section designation. Mechanical technicians and HVAC service professionals install this belt type in blower drives, fan assemblies, and other equipment requiring precise, slip-free synchronization between drive and driven components.

This belt fits drive systems designed around the L-section (3/8-inch pitch) standard. It is suited for residential and light commercial equipment where positive-drive timing belts are specified, including blower assemblies, fan drives, and general mechanical drive trains. The 390L belt number identifies it within the L-series family, making cross-referencing to OEM drive specifications straightforward. Install this belt wherever the original equipment specifies a 390L or equivalent L-section timing belt with 104 teeth.

Key Features

• L-section trapezoidal tooth profile provides positive, no-slip drive engagement
• 104 teeth on a 39.0-inch internal length for precise synchronization
• Nylon construction resists wear and maintains tooth geometry under continuous cycling
• Fiberglass tension cord minimizes belt stretch and maintains consistent pitch length
• Belt number 390L allows direct OEM cross-reference for replacement applications

Compatibility

Designed as an OEM-style replacement for drive systems specifying an L-section timing belt with belt number 390L and 104 teeth. Verify drive sheave tooth count, belt section, and center distance before installation.

Installation Notes

Timing belt replacement should be performed by a qualified mechanical or HVAC technician. De-energize and lock out the equipment fully before removing any belt guards or covers. Do not force the belt over sheave flanges; adjust center distance to allow proper belt seating, then tension according to the drive manufacturer specification. Inspect sheave teeth and bearings for wear before installing a new belt.
