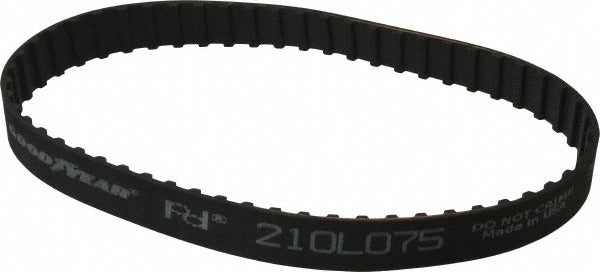

Continental Contitech 20043134 Timing Belt 210L

Product Description

The CONTINENTAL CONTITECH 20043134 is an L-series positive drive timing belt designed for power transmission applications requiring precise synchronization between drive components. Constructed from nylon with a fiberglass cord reinforcement, this belt delivers dimensional stability and resistance to elongation under load. It features a trapezoidal tooth profile with 56 teeth and a pitch length of 210.00 millimeters, corresponding to the industry-standard 210L belt number. This belt is used in mechanical drive systems across HVAC equipment, industrial machinery, and light commercial equipment where accurate timing and low-maintenance power transfer are required.

The 210L timing belt is suited for residential and commercial applications involving synchronous drive systems. Typical installations include fan drives, blower assemblies, and auxiliary mechanical drives found in HVAC air handlers, refrigeration equipment, and general mechanical systems. The L-series designation indicates a standardized tooth pitch and profile, making this belt a direct fit for equipment specifying the 210L belt number. Installation is performed by qualified mechanical or HVAC technicians during routine belt replacement or drive system service.

Key Features

• L-series trapezoidal tooth profile for positive, slip-free power transmission
• 56-tooth configuration with a pitch length of 210.00 millimeters
• Nylon construction with fiberglass cord for high tensile strength and minimal stretch
• Meets 210L industry belt standard for broad equipment compatibility
• Internal length of 21.0 inches for standardized fitment

Compatibility

Designed as an OEM-style replacement for mechanical drive systems specifying a 210L section L timing belt with 56 teeth and a 21.0-inch internal length.

Installation Notes

Installation should be performed by a qualified technician. Disconnect and lock out all power to the driven equipment before removing the old belt or accessing the drive assembly. Verify pulley alignment and tension according to the equipment manufacturer specifications before returning the system to service. Do not force the belt onto the pulleys using tools that could damage the tooth profile or cord reinforcement.
