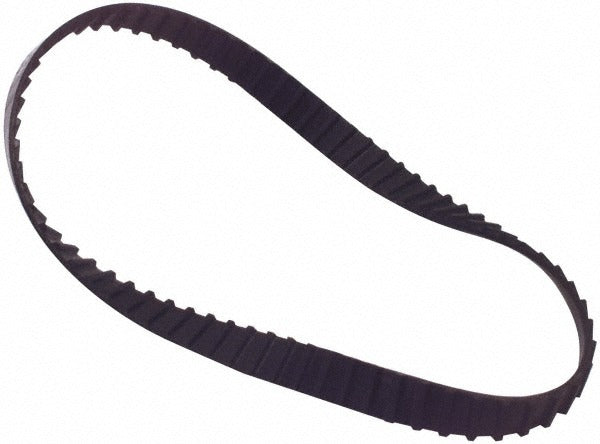

Continental Contitech 20043124 Timing Belt 510L 136 Teeth

Product Description

The CONTINENTAL CONTITECH 20043124 is an L-series positive-drive timing belt designed for precise power transmission in mechanical drive systems. Constructed from nylon with a fiberglass cord reinforcement, it delivers consistent pitch accuracy and resistance to elongation under load. The belt features a trapezoidal tooth profile with 136 teeth and a pitch length of 510.00 mm (approximately 20.08 inches), making it a standard 510L designation. This belt is installed by mechanical technicians, millwrights, and equipment maintenance professionals working on machinery requiring synchronous drive components.

The 510L timing belt is suited for light- to medium-duty synchronous drive applications across industrial, HVAC, and commercial equipment platforms. Its L-section profile is a widely used standard pitch, commonly found in blower assemblies, pump drives, compressor drives, and general power transmission equipment. The nylon construction and fiberglass tensile cord make it appropriate for environments where dimensional stability and low stretch are required for accurate timing or indexing.

Key Features

• L-series trapezoidal tooth profile for positive-drive, no-slip synchronous operation
• 136 teeth with a 510.00 mm pitch length (510L designation)
• Nylon belt material for durability and flexibility across operating temperatures
• Fiberglass cord reinforcement minimizes stretch and maintains pitch accuracy under load
• Standardized L-section sizing for broad cross-compatibility with L-series sprockets and pulleys

Compatibility

Designed as a standard 510L L-series replacement timing belt compatible with L-section sprockets and pulleys sized for a 510L belt. Consult drive system specifications to confirm correct tooth count and pitch length before installation.

Installation Notes

Installation should be performed by a qualified mechanic or millwright following the equipment manufacturer's drive system guidelines. Disconnect and lock out all power to the drive system before removing the old belt or installing the new one. Do not force the belt onto sprockets or use tools that could damage the tooth profile or cord reinforcement. Verify proper belt tension per the equipment manufacturer's specification after installation to prevent premature wear or slippage.
