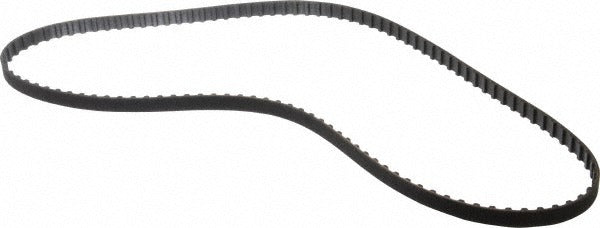

Continental Contitech 20043121 Timing Belt 420L 112 Teeth

Product Description

The CONTINENTAL CONTITECH 20043121 is an L-series positive drive timing belt designed for precision power transmission in industrial and mechanical drive applications. It features 112 trapezoidal teeth spaced along a 420L belt profile with a pitch length of 420.00 mm. The belt body is constructed from nylon with a fiberglass tension cord, combining flexibility with dimensional stability under load. Licensed mechanical trades and equipment technicians install this belt in timing-critical drive systems where slip cannot be tolerated and synchronous motion between shafts must be maintained.

This timing belt is suited for use in light industrial machinery, HVAC equipment drives, conveyor systems, and other synchronous drive applications that specify the L-series trapezoidal tooth profile. The 420L designation identifies the belt section and pitch length, making it a direct reference for specification-based replacement. It is appropriate for both OEM assembly and field replacement work where exact tooth count and belt section must match the existing drive design.

Key Features

• L-series trapezoidal tooth profile for positive, no-slip power transmission
• 112 teeth with a 420L belt number and 420.00 mm pitch length
• Nylon belt construction resists wear and maintains tooth geometry under cycling loads
• Fiberglass tension cord provides high tensile strength with low stretch
• Single-piece continuous loop design for clean installation without fasteners

Compatibility

Designed as an OEM-style replacement for synchronous drive systems that specify an L-series timing belt with the 420L belt number and 112-tooth count. Verify pulley pitch and tooth profile match before installation.

Installation Notes

Installation is typically performed by mechanical technicians or equipment maintenance trades. De-energize and lock out all drive equipment before removing or installing the belt. Do not force the belt onto pulleys using a screwdriver or pry tool, as this can damage the tension cord. Confirm correct tension per the equipment manufacturer's drive specification before returning the system to service.
